5. OPERATION INSTRUCTIONS

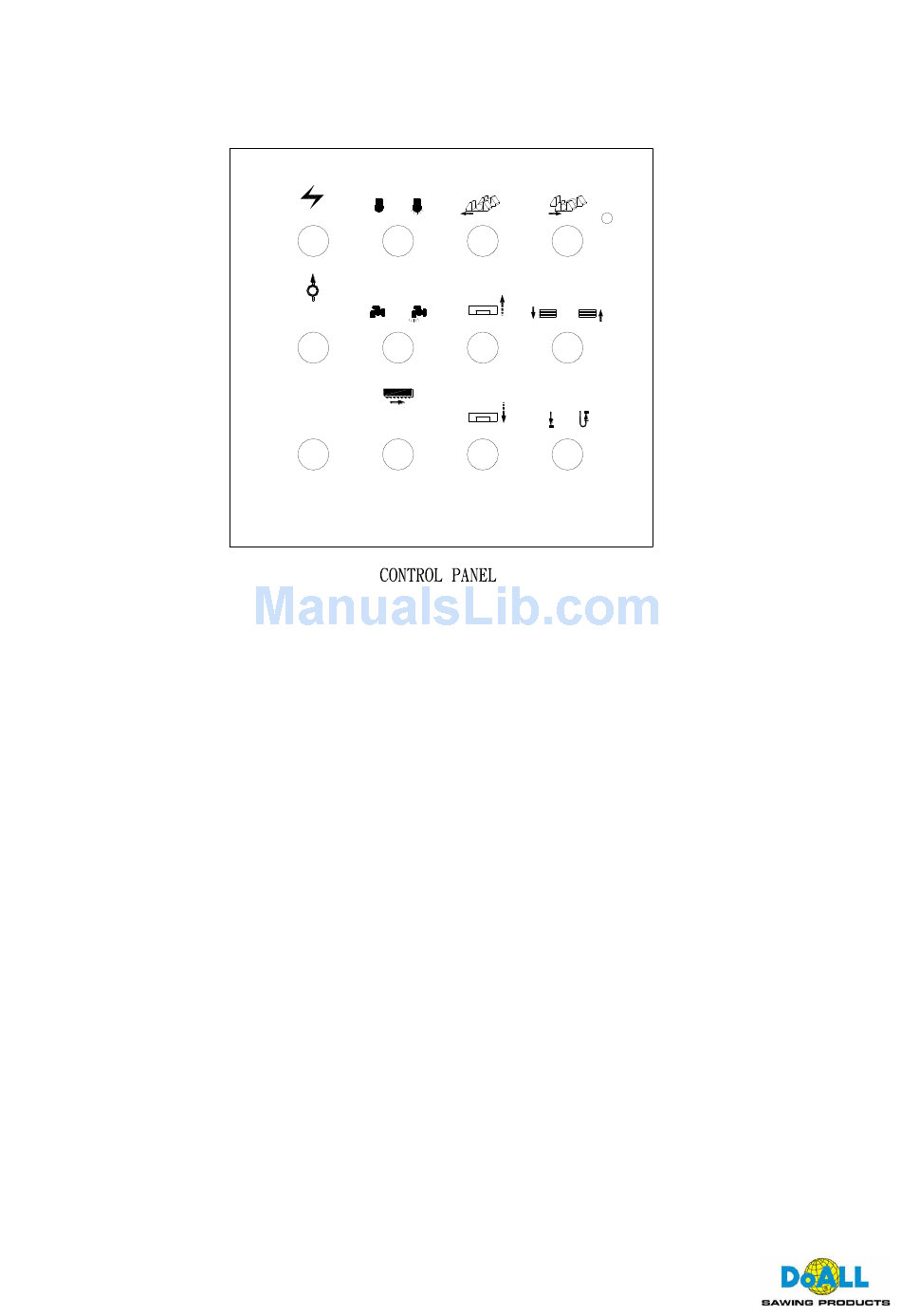

5.1 CONTROL PANEL
1. POWER LAMP
When the power switch is turned on, this power lamp lights up.
2. WORKING LIGHT SWITCH
Switch to right for turning on the light. Switch to left for turning off the light.
3. BED VISE RETRACTING SWITCH
Press the switch for retracting the table vise. When this switch released, the retracting
motion stops.
4. BED VISE FORWARD MOTION SWITCH
Press this switch for moving the bed forward. When this switch released, the forward
motion stops. The right indicating lamp lights up when vises clamping.
5. HYDRAULIC ON/OFF SWITCH
Press the upper switch for starting the hydraulic system. Press the lower switch for
stopping hydraulic system.
6. COOLANT SWITCH
Press this switch for turning on the cooling system. Press it again for turning off the cooling
system.
