Position Your Router

1.5
Place the router in a well-ventilated place far from any heater or heating vent
•
Avoid direct irradiation of any strong light (such as sunlight)
•
Keep at least 2 inches (5 cm) of clear space around the router
•
Operating Temperature: 0℃~40℃ (32℉~104℉)
•
Operating Humidity: 10%~90%RH, Non-condensing
•

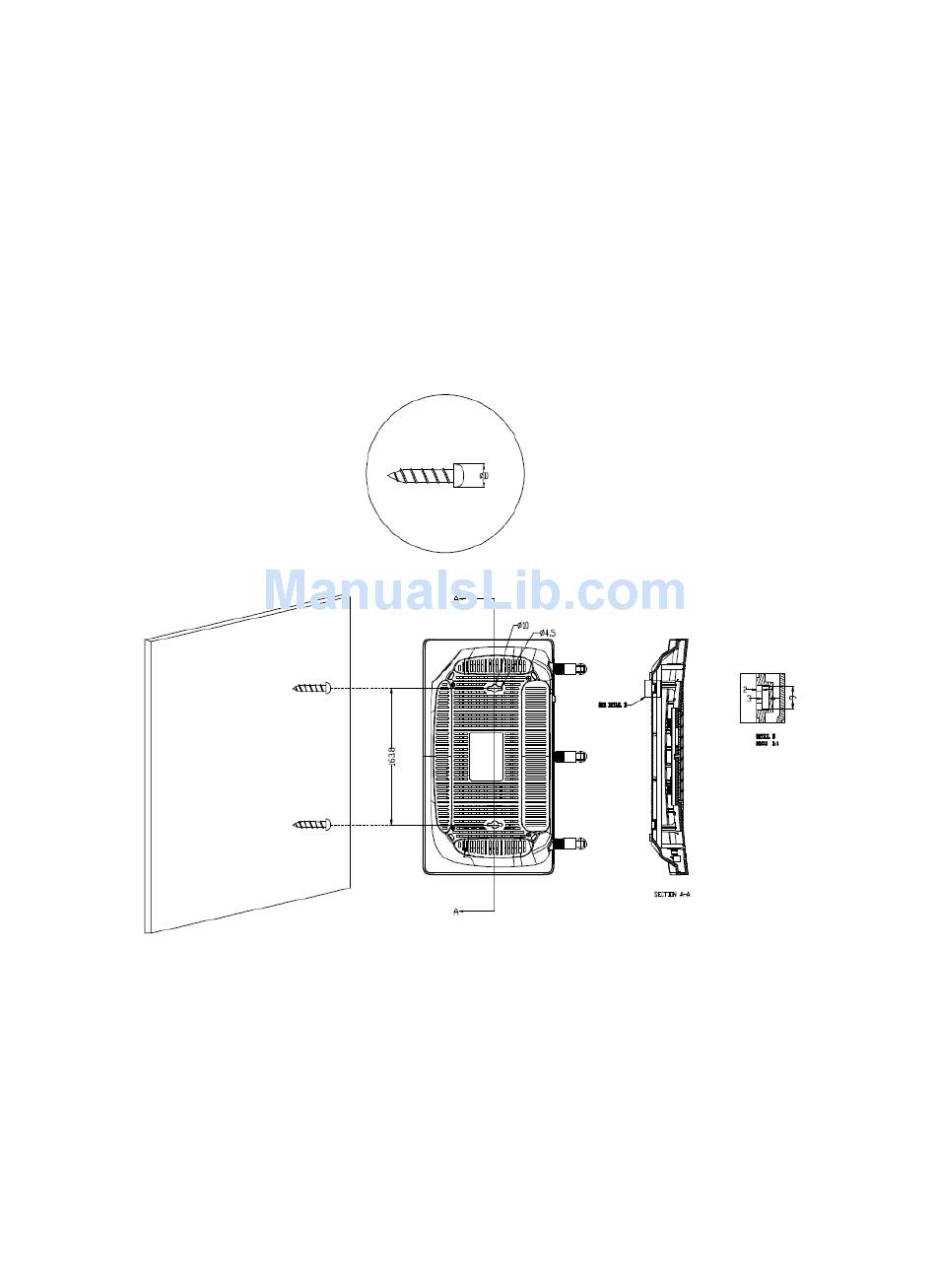

Generally, Touch P5 is placed on a horizontal surface. The device also can be mounted on the wall as shown below.
Note:
The diameter of the screw, 3.5mm<D<6mm, and the distance of two screws is 163.8mm. The screw that project from
the wall need around 4mm based, and the length of the screw need to be at least 20mm to withstand the weight of the
product.
