TP-Link TD-8841 User Manual

Tp-link external adsl router user guide
Hide thumbs Also See for TD-8841:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

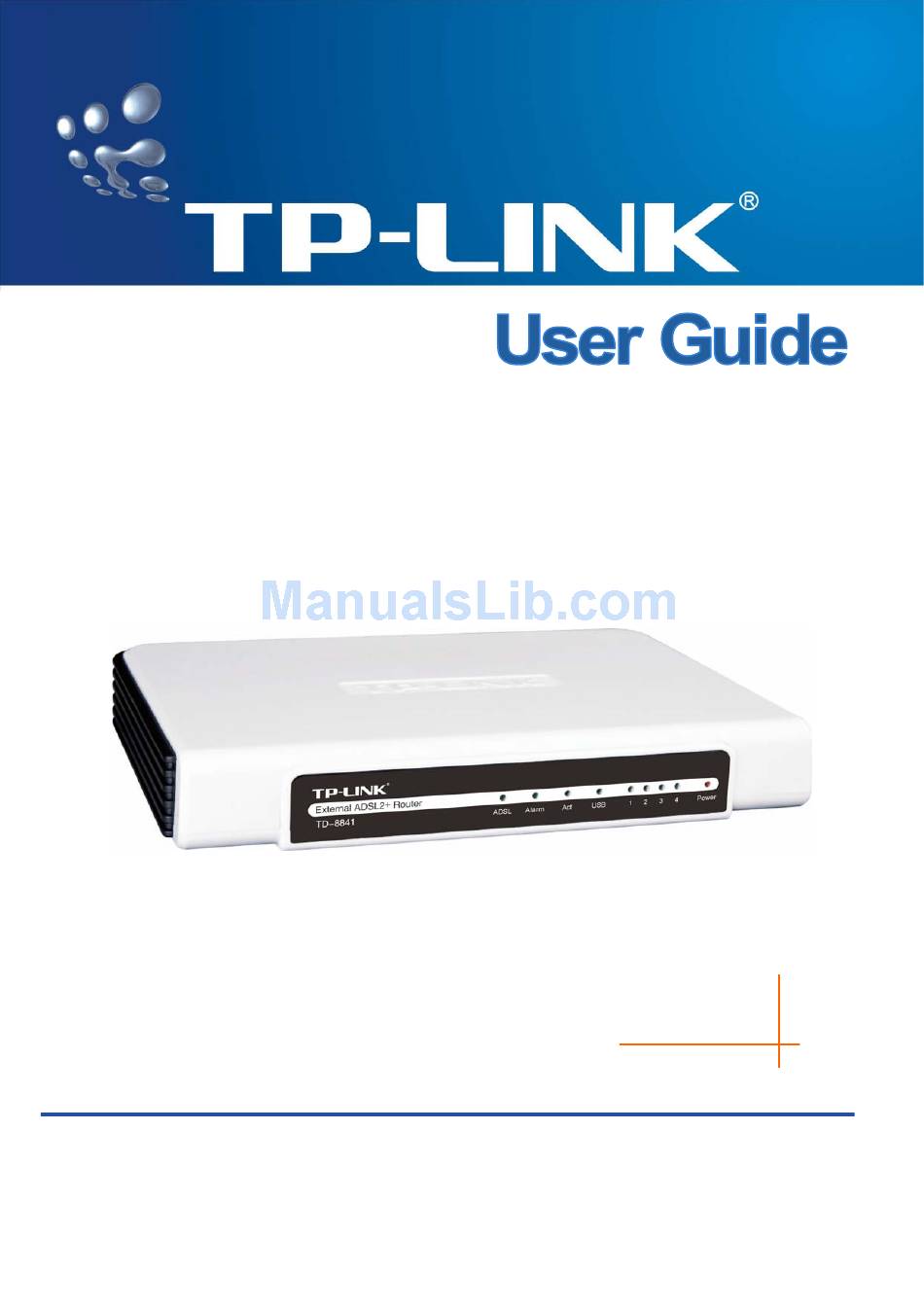

TD-8841
External ADSL Router
Rev: 1.0.2
1910010026

Advertisement

Table of Contents
loading

Related Manuals for TP-Link TD-8841

Summary of Contents for TP-Link TD-8841

  • Page 1 TD-8841 External ADSL Router Rev: 1.0.2 1910010026...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.

  • Page 3: Fcc Statement

    FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    Package Contents ... 1 Chapter 1. Product Overview... 2 Product Main Specification... 2 Supporting Protocol... 2 Transmit Data-rate ... 3 ATM Property ... 3 System Support... 3 Working Environment ... 3 Chapter 2. Hardware Installation Guide ... 4 System requirement ... 4 LED explanation...

  • Page 5: Package Contents

    Package Contents The following items should be found in your package: One TD-8841 External ADSL2+ Router One AC power Adapter for TD-8841 External ADSL2+ Router One Resource CD for TD-8841 External ADSL2+ Router, including: This Guide Quick installation Guide Program...

  • Page 6: Chapter 1. Product Overview

    The TD-8841 is a complete plug-and-play solution. With standard Ethernet interface, it can be directly connected to any 10M/100M Ethernet devices, support Auto-MDIX. The TD-8841 not only uses html (web mode through Ethernet port) to configure the Router but also uses external utility software. You can download it from our website (http://www.tp-link.com).

  • Page 7: Transmit Data-Rate

    Support IEEE 802.3、IEEE 802.3u Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet Support Auto-MDIX Support USB 1.1 device interface 1.6 Working Environment Operating temperature: 0 Storage temperature: -40 Humidity: 10%~90% (non-condensing) TD-8841 External ADSL2+ Router User Guide ℃ ℃ ℃ ℃...

  • Page 8: Chapter 2. Hardware Installation Guide

    Chapter 2. Hardware Installation Guide The TD-8841 maintains six separate interfaces, including four Ethernet interfaces, one USB interface and one ADSL interface. The Router should not be located where it will be exposed to moisture or excessive heat. Place the Router in a location where it can be safely connected to the various devices as well as to a power source.

  • Page 9: Hardware Installation Procedures

    The procedure to install the Router can be described in general terms in the following steps and shown as Figure 2-1: First Step: Connecting the MODEM port of Splitter with the LINE port of the TD-8841 ADSL2+ Router by telephone line. While you need to use a telephone, please attach telephone line into the phone of Splitter.

  • Page 10: Chapter 3. System Configuration

    Remarks: you can check whether your configuration is successful through PING command. Enter Ping 192.168.1.1 If the screen looks like the following, you have been successful. If the screen looks like the following, the connection has failed. Please try again. TD-8841 External ADSL2+ Router User Guide A ppendix B: Configuring the PCs.

  • Page 11: Login

    TD-8841 External ADSL2+ Router User Guide 3.2 Login Startup Internet Explorer, and enter 192.168.1.1;then enter default user name (admin)、password (admin), When ADSL2+ connection is OK, you will see the Figure 3-1. Figure 3-1 You will then see the Figure 3-2. You will see some information such as link rate and so on.

  • Page 12: Web Setup

    “Access control” “Passwords” changing them. (Figure 3-3) 3.3 Web Setup Choose “Advanced Setup” ”WAN”, you will enter the page of Wide Area Network (WAN) Setup, you will see the Figure 3-4. TD-8841 External ADSL2+ Router User Guide Figure 3-2 Figure 3-3...
  • Page 13 ATM PVC Configuration (See Figure 3-5). Enter VPI/VCI value and service category which is provided by your ISP, click next to enter the next step. You will see the Figure 3-6. TD-8841 External ADSL2+ Router User Guide Figure 3-4...
  • Page 14 TD-8841 External ADSL2+ Router User Guide Note: The type of network protocol selected may be different in different areas, there are five types （Figure 3-7）, So you should ask your ISP to acquire the local type of network protocol and Encapsulation mode.
  • Page 15 You will see the Figure 3-8. Then turn on the selected functions according to your demands. Clicking the next button to enter the next step, you will see the Figure 3-9, finally click save to complete the configuration. TD-8841 External ADSL2+ Router User Guide Figure 3-7...
  • Page 16 TD-8841 External ADSL2+ Router User Guide Figure 3-9 PPP over Ethernet (PPPoE) If you select the protocol of PPP over Ethernet (PPPoE), you will see the Figure 3-10, enter the value of user name and password which is provided by your ISP, after selecting the other function (often using the default setup), click the next button.
  • Page 17 TD-8841 External ADSL2+ Router User Guide Figure 3-11 Figure 3-12 MAC Encapsulation Routing (MER) If you select the protocol of MAC Encapsulation Routing (MER), you will see the page (Figure 3-13) Enter the parameter and the way which is provided by your ISP, then click the next button.
  • Page 18 You will see the Figure 3-14. Then turn on the selected functions according to your needs. Clicking the next button to enter the next step, you will see the Figure 3-15, finally click save to complete the configuration. TD-8841 External ADSL2+ Router User Guide Figure 3-13...
  • Page 19 You will see the page (Figure 3-17), then turn on the selected functions according to your needs. Clicking the next button to enter the next step, you will see the Figure 3-18, finally click save to complete the configuration. TD-8841 External ADSL2+ Router User Guide Figure 3-15...
  • Page 20 If you select the Bridging protocol, you just open the bridge service function options, you will see the Figure 3-19, then click the next button, you will see the Figure 3-20, finally press save to complete the configuration. TD-8841 External ADSL2+ Router User Guide Figure 3-17...
  • Page 21 After you complete the settings, the new settings must be saved and the Router must be restarted for the settings to go into effect. Please press the Save/Reboot button to restart, referring to the Figure 3-21. TD-8841 External ADSL2+ Router User Guide Figure 3-19...

  • Page 22: Software Dial

    3.4 Software Dial If TD-8841 CPE work in bridged (RFC 1483 Bridged) mode when it connects Internet. You must to install dial software on your PC. There are some software working on WINDOWS in market, example for EnterNet3000、RASPPPoE、WinPeET. How do I set up the connection in the windows XP?
  • Page 23 Click “Set up a connection or network” in the right of this page. And choose “Set up a dial-up connection” in the new page, click Next. After that, you will see Figure 3-23, click “Set up a connection anyway” to enter next page. TD-8841 External ADSL2+ Router User Guide Figure 3-22...

  • Page 24: Usb Configuration

    Then you will see the Figure 3-24 require install software for USB Device, select ‘Install from a list or specific location (Advanced)’and click the next button to enter the next step. You will see the Figure 3-25. TD-8841 External ADSL2+ Router User Guide Figure 3-24...
  • Page 25 Select the ‘search removable media(floppy, CD-ROM…)’, and click the next button. You will see the Figure 3-26. The driver will be search and installed. Note: You must insert the CD first. TD-8841 External ADSL2+ Router User Guide Figure 3-25 Figure 3-26...
  • Page 26 TD-8841 External ADSL2+ Router User Guide Waiting and you will see the Figure 3-27. When the driver finished installation, click Finish to close the installation. Please refer to chapter 3.1 to finish the IP configuration of USB network connection. Then you could use the USB device.
  • Page 27 After that you will enter the next page shown as Figure 3-29. Click “Don’t search online”. Then Figure 3-30 will be displayed. Click Next to search and install the driver from your CD. Note: You must insert the CD first. TD-8841 External ADSL2+ Router User Guide Figure 3-28 Figure 3-29...
  • Page 28 Then please wait a second and you will see Figure 3-32 which indicates that the installation has been finished. Finally, click Close to finish it completely. TD-8841 External ADSL2+ Router User Guide Figure 3-30 Figure 3-31...
  • Page 29 You can see following figure at the bottom of the screen. Note: If you want cut off the USB device you must disconnect the network of USB first. TD-8841 External ADSL2+ Router User Guide Figure 3-32 Figure 3-33...

  • Page 30: Chapter 4. Advantage Management Setup

    Configure RIP(Routing Information Protocol） Configure IP route Configure Security rule Configure DSL parameter Note: If you want to acquire further details, please access our website (www.tp-link.com) and consult the advantage user guide of TD-8841. TD-8841 External ADSL2+ Router User Guide...

  • Page 31: Chapter 5. Fqa

    PPPoA or PPPoE, ADSL2+ Router will connect automatically. You can check whether your ADSL2+ Router succeeds in connection with PING command. TD-8841 External ADSL2+ Router User Guide so you will not need to use the dial...

  • Page 32: Appendix A: Default Configuration

    Appendix A: Default Configuration USER NAME PASSWORD IP ADDRESS VPI/VCI TD-8841 External ADSL2+ Router User Guide admin admin 192.168.1.1 0/32,1/33,0/35,0/100,0/200,8/35,8/81...

  • Page 33: Appendix B: Configuring The Pcs

    Right-press Network Neighbor and Choose Properties. Right click the icon that showed below, select Properties on the prompt page. In the prompt page that showed below, double click on the Internet Protocol (TCP/IP). TD-8841 External ADSL2+ Router User Guide Figure B-1...
  • Page 34 Now you have two ways to configure the TCP/IP protocol below: Setting IP address automatically Select Obtain an IP address automatically, Choose Obtain DNS server automatically, as shown in the Figure below: TD-8841 External ADSL2+ Router User Guide Figure B-2...
  • Page 35 Type the router’s LAN IP address (the default IP is 192.168.1.1) into the Default gateway field. Select Use the following DNS server addresses radio button. In the Preferred DNS Server field you can type the DNS server IP address, which has been provided by your ISP. TD-8841 External ADSL2+ Router User Guide Figure B-3...
  • Page 36 Figure B-5. Click “Manage network connections” in the right of this page. Then do as following: Right-press Local Area Connection ->Choose Properties->Double click Internet Protocol Version 4 (TCP/IPv4). TD-8841 External ADSL2+ Router User Guide Figure B-4 Figure B-5...
