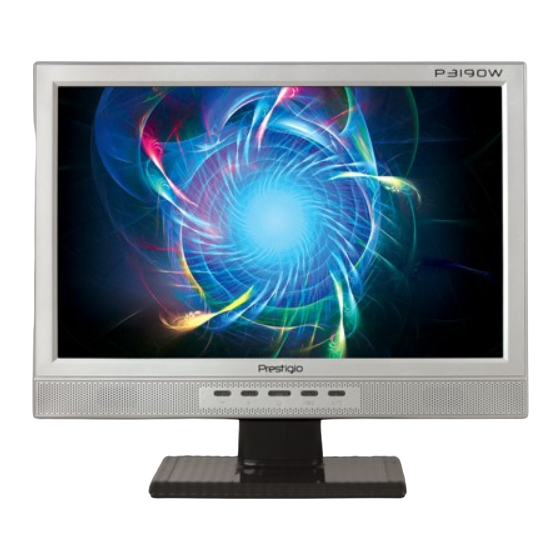

- Page 1 LCD Monitor Prestigio P3190W 19.0 TFT Active Matrix LCD Panel User’s Manual Prestigio P3190W...
-
Page 2: For Your Safety
Do not use the monitor near water, or lay it at a dankish place. Openings in the back of the cabinet are provided for ventilation. To ensure persistent operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Prestigio P3190W... -
Page 3: Special Notes On Lcd Monitors
Contact your dealer for replacement when the screen is dark, flickering or not lighting. Never attempt to replace it by yourself. BEFORE YOU OPERATE THE MONITOR FEATURES 48.1cm(19″) TFT Color LCD Monitor Crisp, Clear Display for Windows Recommend Resolution: 1440×900@60Hz EPA ENERGY STAR Space Saving, Compact Case Design Prestigio P3190W... -
Page 4: Power Cord
You are able to adjust the monitor’s angle from 5°to 15° NOTES Do not touch the LCD screen when you change. It may cause damage or break the LCD screen. Careful attention is required not to catch your fingers or hands when you change the angle. Prestigio P3190W... -
Page 5: General Instructions
Save the original shipping carton and packing materials, as they will come in handy if you ever have to transport your monitor. For maximum protection, repackage your monitor as it was originally packed at the factory. Prestigio P3190W... -
Page 6: How To Adjust A Setting
2.1 Auto color Adjust the color automatically. 2.2 Exit 3.IMAGE (In the state of DVI without this item) 3.1 Auto configuration Adjust the image position automatically 3.2 Clock Adjust the image clock. 3.3 Phase Adjust the image focus 3.4 H-Position Prestigio P3190W... -
Page 7: Color Temp
Dos-Editor screen 2.Press“AUTO”button(at the front pane) about 2 seconds, the monitor will do all the adjustment automatically. You can adjust the image manually, If the screen has a flicker or blur, or not fit in the display Prestigio P3190W... -
Page 8: Plug And Play
After the video input signal is restored, full power is restored and the display is automatically redrawn. The appearance is similar to a “Screen Saver” feature except the display is completely off. The display is restored by pressing a key on the keyboard, or clicking the mouse. Prestigio P3190W... -
Page 9: Technical Support(Faq)
Please send the monitor to an authorized service Agent for service. Horizontal or vertical Use win 95/98/2000/XP shut-down mode Adjust CLOCK disturbances on the screen and PHASE or perform hot-key(AUTO-key). Prestigio P3190W... -
Page 10: Error Message And Possible Solution
2.Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT: Your computer has been set to unsuitable display mode, Set the computer to display mode given in the following table. UNSUPPORTED MODE TRY DIFFERENT VIDEO CARD SETTING: Your computer resolution is out of VESA-SPEC Prestigio P3190W... -
Page 11: Horizontal Frequency
37.5 720*400 (IBM) 31.5 CONNECTOR PIN ASSIGNMENT FOR SIGNAL INPUT CONNECTOR PIN ASSIGNMENT FOR VGA SIGNAL INPUT PIN NO. DESCRIPTION PIN NO. DESCRIPTION Green Ground Blue Ground Ground DDC-Serial Data Ground H-Sync R-Ground V-Sync G-Ground DDC-Serial Clock B-Ground Prestigio P3190W... - Page 12 T.M.D.S Clock Screen Ground T.M.D.S Data 1/3 Screen Ground T.M.D.S Clock + T.M.D.S Data 3- T.M.D.S Clock - C1 ＊ C4 ＊ Analog Horizontal Sync Signal Analog Red C2 ＊ C5 ＊ Analog Ground（R、G、B） Analog Green C3 ＊ Analog Blue Prestigio P3190W...
-
Page 13: Basic Parameter
Storage Temp:-20°C to 60°C Operating Humidity: 10% to 80%. Auto Adjust/Exit Menu/Choice External Controls Switch Model change Volume Adjust Power on/off Brightness Color Image Tool Functions Color temperature language Analog/Digital Exit ON Mode <50W EPA Energy Star <2.8W OFF Mode Prestigio P3190W... -
Page 14: Checking The Contents Of The Package
Brightness CHECKING THE CONTENTS OF THE PACKAGE 1.LCD Monitor 1 set 2.Owner's Manual 1 pcs 3.Power Cord 1 pcs 4.VGA signal cable 1pcs 5. Audio cable 1 pcs 6.DVI-D signal cable 1 pcs (optional) 7. Repairable guarantee 1pcs Prestigio P3190W...
