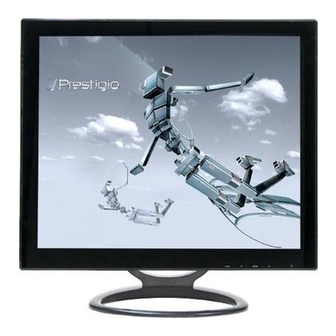

Prestigio P1910 Quick Start Manual

Prestigio P1910 Quick Start Manual

Hide thumbs Also See for P1910:

Advertisement

Quick Links

I. Federal Communications Commission (FCC) Statement:
This Equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment can generate radio frequency energy during use, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct its interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the- receive is connected.
-Consult the dealer or an experienced radio/TV technician.
II. Important Safety Precautions
Warning
1. Do not use the monitor near water, next to a kitchen sink, bathtub, or swimming pool or in other wet areas.
2. Do not place the monitor on unstable or sloped surfaces. If the monitor falls, it could cause personal injury and also
damage the monitor. Use only the stand supplied or one recommended by your dealer. If you mount the monitor on a
wall or shelf, Use a mounting kit approved by your dealer and Follow the kit instructions.
3. Unplug the monitor before you clean it. To clean the LCD screen, use a soft clean cloth moistened only with water. Do
not use abrasive cleaners or other chemicals to clean the LCD screen.
4. Avoid touching the LCD screen with your fingers or hard objects which may scratch the delicate surface.
5. Slots and openings in the monitor's cabinet are provided for ventilation. To ensure reliable operation of the monitor
and to protect it from overheating, do not allow these openings to become blocked or covered. Do not place the
monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near a radiator or close to other sources of heat.
When using the monitor in a bookcase or cabinet please ensure adequate ventilation is provided.
6. Never push any object into the slots and openings in the monitor's cabinet to avoid the risk of electric shock or causing
a fire.
7. Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages
and other hazards. Please refer all servicing to qualified service personnel.
8. Use only the AC adapter supplied. If it becomes lost or damaged please contact your dealer for a suitable replacement.
9. The monitor should be ideally located near an easily accessible AC wall socket.
10. Do not allow the monitor or other objects to rest on the power cord or other cables.
11. A certified power supply cord must be used with this equipment. The relevant national installation and/or equip-
ment regulations should also be considered. An appropriate power cord is supplied with your monitor.
12. If the power cord becomes lost, damaged or is incompatible with your AC outlet, please contact your dealer for a
suitable replacement.
13. Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
14. Unplug the unit during lightening storms or when it will not be used for long periods of time. This can protect the
monitor from damage caused by AC power surges.
15. Unplug the monitor and contact your dealer under any of the following circumstances:
. The power cord becomes damaged or frayed.
. If you suspect liquids or foreign and objects have entered the monitor.
PRESTIGIO P1910
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the P1910 and is the answer not in the manual?

Questions and answers

Summary of Contents for Prestigio P1910

  • Page 1 AC power surges. 15. Unplug the monitor and contact your dealer under any of the following circumstances: . The power cord becomes damaged or frayed. . If you suspect liquids or foreign and objects have entered the monitor. PRESTIGIO P1910...
  • Page 2: Connection And Setup

    Output voltage is 12V/3.3A or 4.0A 2) The external power adaptor is connected with AC power socket by power cable, and then the 2-core DC plug of the other side of the external power adaptor is connected to +12VDCsocket of the display. PRESTIGIO P1910...
  • Page 3 3. UP: Increase selected setting or (digital video input model) change video mode for DVI input 4. AUTO/EXIT: AutoAdjust and exit 5. POWER: used to turn the monitor ONor OFF. 6. Power indicator: Green = Monitor on, Orange or Red = Power save mode, No light = Monitor Off PRESTIGIO P1910...
  • Page 4 PHASE adjustment, so that Windows picture is clear. Note: we suggest making picture automatic rectification or adjusting clock phase in the picture of “Shut off Windows” . Thus it can reach to the best picture quality to clear off net line or other disturbances. PRESTIGIO P1910...
  • Page 5 V: 140º (typical value) Comply with standards of EPA, VESA Response time Safety specifications 8/12ms (typical value) UL/CUL/TUV/CCEE/FCC/CE Max. resolution Plug and play 1280*1024 DDC2B Horizontal frequency range Weight 30-80KHz net weight: gross weight: kg Vertical frequency range Dimensions 55-75Hz 502mm*180mm*502mm*(L*W*H) PRESTIGIO P1910...
  • Page 6: Display Modes

    6.2 User Video Mode Your monitor may support other video modes not listed here. Manual adjustments of the Phase and Clock settings for an unsupported mode will be automatically stored as a “User Video Mode” on exiting the OSD. PRESTIGIO P1910...
  • Page 7: Troubleshooting Guide

    If the above measures cannot solve your problems, please contact technical support personnel. Never open the cover to check or repair. This company should not be liable for any outcome if you open the cover without permission. PRESTIGIO P1910...
  • Page 8 VIII. VGA Connector and DVI Connector Details (Optional) 8.1 15-pin VGA Connector Pin Assignment 8.2 24-pin DVI Connector Pin Assignment PRESTIGIO P1910...
