3. Measurement unit;
4. Current value of the signal;
5. High threshold;
6. Higher limit of the alarm range.

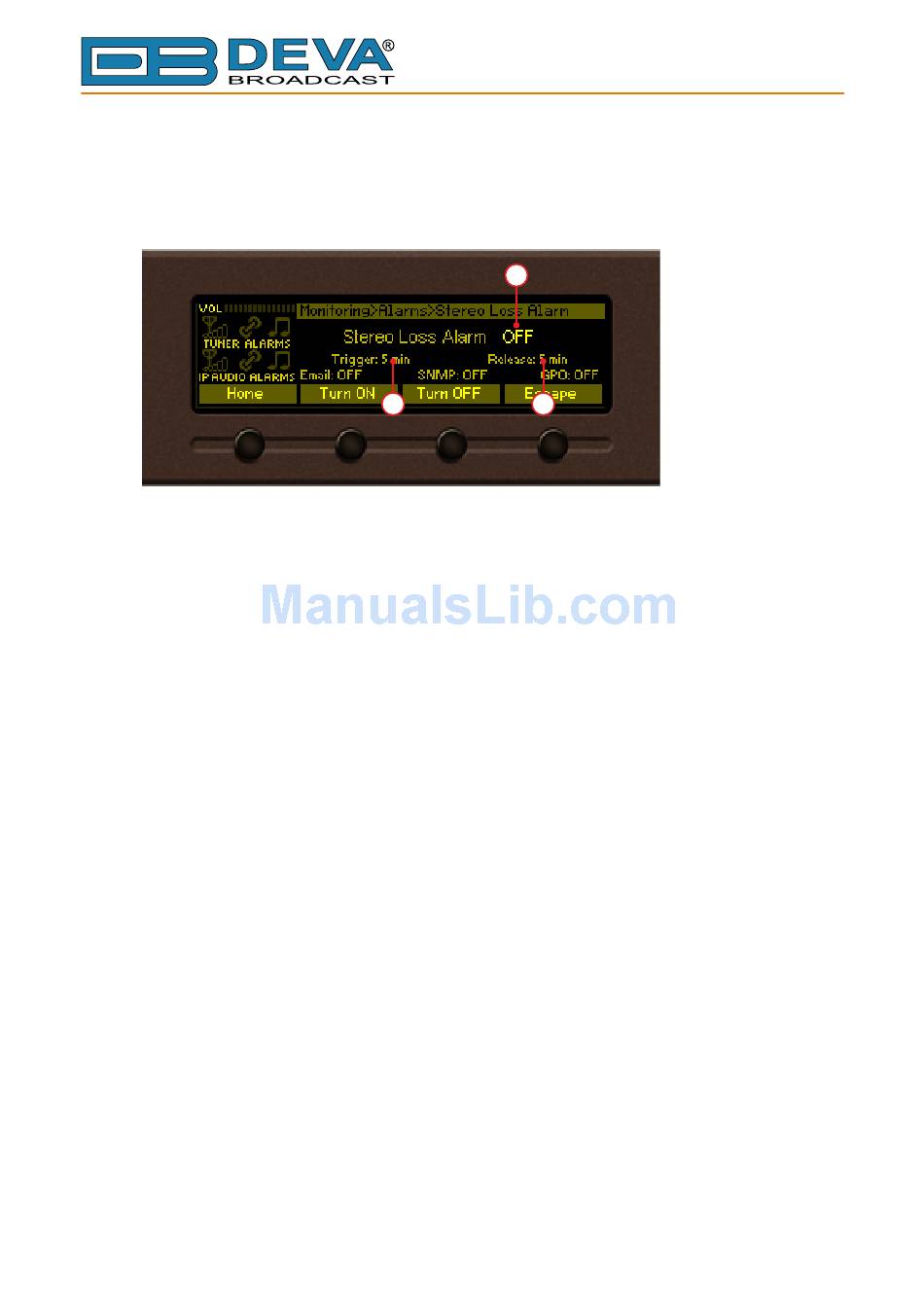

Depicted above is the structure of the alarm editor dialog for the following alarms: Stereo Loss
Alarm, IP Link Alarm, Internet Stream Alarm. The basic elements of the alarm editor dialog are:
1. Alarm turned ON/OFF;
2. Trigger time (default value is set to 5 minutes);
3. Release time (default value is set to 5 minutes).
Alarm edit dialog, front panel buttons usage:
[LEFT] / [RIGHT] – Selects previous/next sub-parameter of the alarm.
[UP] / [DOWN] – Change the value of the selected (highlighted) sub-parameter. The value
always stays in the permitted parameter range. Low threshold value cannot exceed the high
threshold and vice-versa;
[OK] – Accept the value and exits edit dialog;
[SB2] – Toggles ON/OFF the low alarm generation;
[SB3] – Toggles ON/OFF the high alarm event generation;
[SB4] – Discards all changes and cancels edit mode.
