Quick Install Guide
Troubleshooting
Commonly Used Safety Sensor Wiring

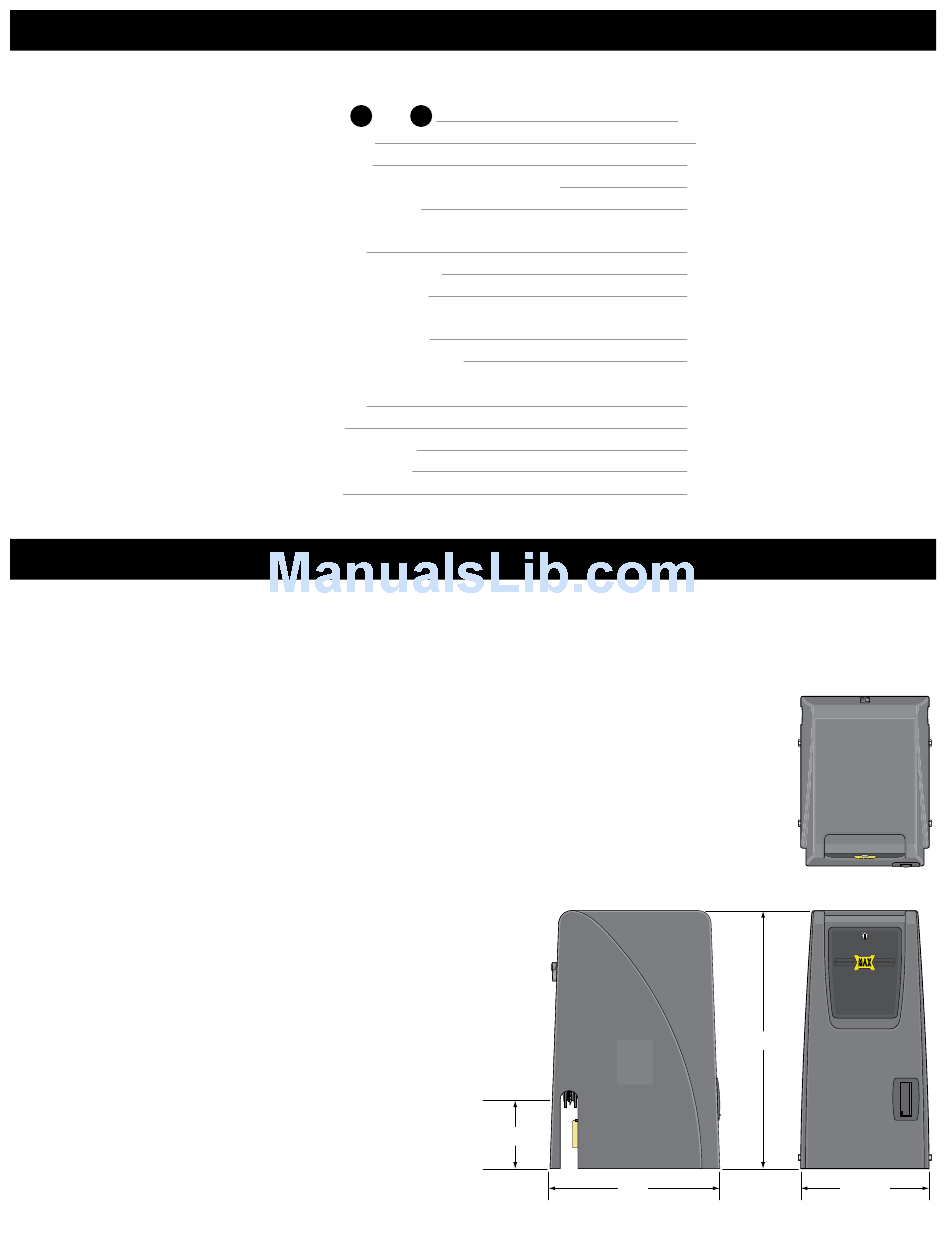

MAX 1500 / 2200 specifications
UL 325 Class of Operation
Gate Type - Vehicular Slide Gate
Max Gate Length - 50 ft
Max Gate Weight:
• MAX 1500 - 1500 lbs Level Gate; 1000 lbs Uphill Gate - 5° Max
• MAX 2200 - 2200 lbs Level Gate; 1500 lbs Uphill Gate - 5° Max
Opening Time - Selectable speed control (MAX - 12 inch per second)
Cycles per Hour AC Power
Battery Back-Up Cycles (Batteries fully charged):
• MAX 1500 - approximately 100 cycles
• MAX 2200 - approximately 100 cycles
NOTE: The number of gate cycles using ONLY battery back-up power will vary
depending on the weight of the gate, the gate length, the operating condition
of the gate, temperature and the amount of charge the batteries have at the
beginning of the battery power only operation.
Input AC Power/Amps - Switchable: 115VAC / 6 Amp, 1 phase
Motor:
• MAX 1500 - 1/2 HP 24VDC Brushless (6 million cycles)
• MAX 2200 - 1 HP 24VDC Brushless (6 million cycles)
Chain Size - #40
Operating Temperature: -4°F to 158°F (-20°C to 70°C)
Entrapment Protection:
- UL 325 Type A Inherent (ERD sensor)
- Inputs for NORMALLY CLOSED (N.C.)
UL 325 Type B1 (photo cell)
and Type B2 (sensing edge)

Table of Contents

Installation Steps 1 thru 12 1
Gate Shut-Off Switch
Gate Tamper Feature
Dropping the Chain - Gate Tamper is Armed (ON)
Dual Gate Operators Wiring
USB Black Box Port
Test Edge 1 Entrapment sensor
Gate Cycling Troubleshooting
Matrix 1 LED Troubleshooting
MC-200 LED Troubleshooting
BC-7 Module LED Troubleshooting
Omron E3K-R10K4
Omron IRB-RET
EMX IRB-MON Single Gate
EMX IRB-MON Dual Gates
Miller Gate Link
- Class I, II, III, IV
- Continuous
or 230VAC / 2 Amp, 1 phase
12
7 1/2"
2
Page
1-10
11
12
13
14
15
15
16
17-18
19
20
21
21
22
23
24
29"
19"
UL 325 2016 Standard-MAX Quick Install Rev 8
14 1/2"
