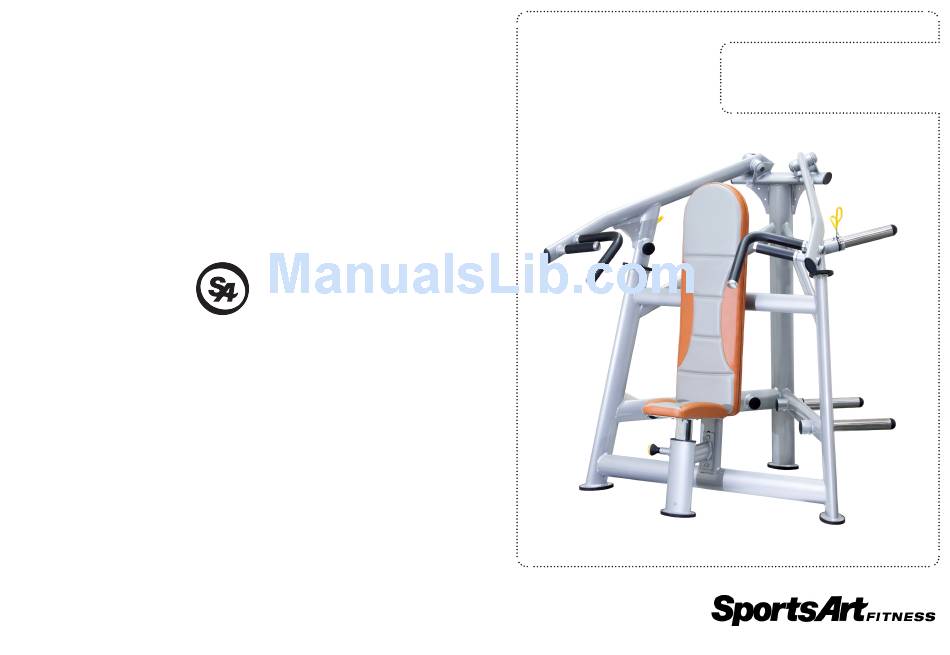

A987 Shoulder Press
Owner's Manual
Sports Art Industrial Co., Ltd.
TUV-CERT ISO 9001/9002/14000 Certified Quality Products
2013.03.08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A987 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsArt Fitness A987

Summary of Contents for SportsArt Fitness A987

  • Page 1 A987 Shoulder Press Owner’s Manual Sports Art Industrial Co., Ltd. TUV-CERT ISO 9001/9002/14000 Certified Quality Products 2013.03.08...

  • Page 2: Table Of Contents

    A987 OWNER’S MANUAL CONTENTS 1. INTRODUCTION ................2 2. SAFETY PRECAUTIONS ..............3. LIST OF PARTS ................. 4. ASSEMBLE THE PRODUCT ............. STEP 1 Install the Seat Frame ............... STEP 2 Install the Seat Cushion ............STEP 3 Install the Arm Assemblies ............

  • Page 3: Introduction

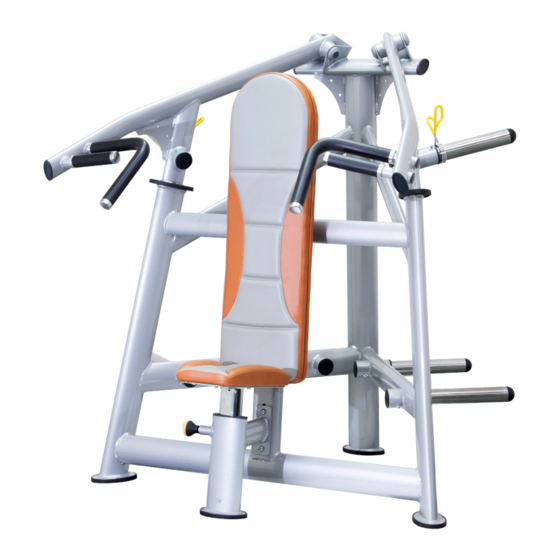

    1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the A987 shoulder press machine. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual.

  • Page 4: Safety Precautions

    2. SAFETY PRECAUTIONS This product was designed and built for optimum safety. However certain precau- tions apply during the use of this product. Please note the following safety precautions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual.

  • Page 5: List Of Parts

    3. LIST OF PARTS Assembly Parts No. Name Qty. No. Name Qty. A1 Main frame A6 Left arm assembly A2 Seat frame A7 Weight plate peg A3 Connecting plate A4 Seat cushion A5 Right arm assembly...
  • Page 6 Components in the Hardware Kit Name Qty. Specification Notes Round sticker ØD25 Inner hex screw M6*L10 Spring washer Handle washer D20*d7*t2.0 L-shaped Allen wrench L-shaped Allen wrench Double open-end wrench 13*17 Components on the Product Name Specification Notes Inner hex screw M10*P1.5*L75 Spring washer Washer...

  • Page 7: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.

  • Page 8: Step 2 Install The Seat Cushion

    STEP 2 Install the Seat Cushion Follow instructions (a) through (c) to assemble the seat cushion (a) First, remove screws (21) from the seat cushion (A4), and also remove the screws (24) from the seat frame (A2). (b) Attach the seat cushion plate (A4) onto the seat frame (A2), then secure the assembly with screws (24).

  • Page 9: Step 3 Install The Arm Assemblies

    STEP 3 Install the Arm Assemblies Please follow instructions (a) through (b) to install the arm assembly. (a) First, remove the screws (22) from both arm assemblies (A5)(A6). (b) Attach the right arm assembly (A5) onto the main frame (A1), secure the assembly with screws (22).

  • Page 10: Step 4 Install The Weight Plate Pegs

    STEP 4 Install the Weight Plate Pegs Please follow instructions (a) through (c) to install weight plate pegs. (a) First remove the screws (23) from the weight plate pegs (A7). (b) Install weight plate pegs (A7) onto both arm assemblies (A5)(A6) and the sides of the main frame (A1).

  • Page 11: Operate The Product

    OPERATION Operate the Product (a) Select the appropriate weight plates placed on both sides of the weight plate pegs, and then secure the weight plates with safety clamps. (b) Adjust the seat height to the most comfortable position. (c) Sit in an upright position and make sure the back is supported. (d) Select the horizontal grip or vertical grip.

  • Page 12: Maintenance

    5. MAINTENANCE This section covers maintenance topics and includes a maintenance sched- ule, task list, and log. MAINTENANCE Schedule Area Week Month Quarter Year Notes Exterior Clean. Screws Inspect for looseness and secure if necessary. Cushions Wipe with a damp cloth. Seat tube Clean and lubricate once every six months.

  • Page 13: Maintenance Task List

    MAINTENANCE Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.

  • Page 14: Maintenance One-Year Maintenance Log

    MAINTENANCE One-Year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...

  • Page 15: Consignes De Sécurité Importantes

    6. CONSIGNES DE SÉCURITÉ IMPORTANTES Le produit SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cepen- dant certaines précautions s’appliquent chaque fois que vous utilisez votre produit. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
