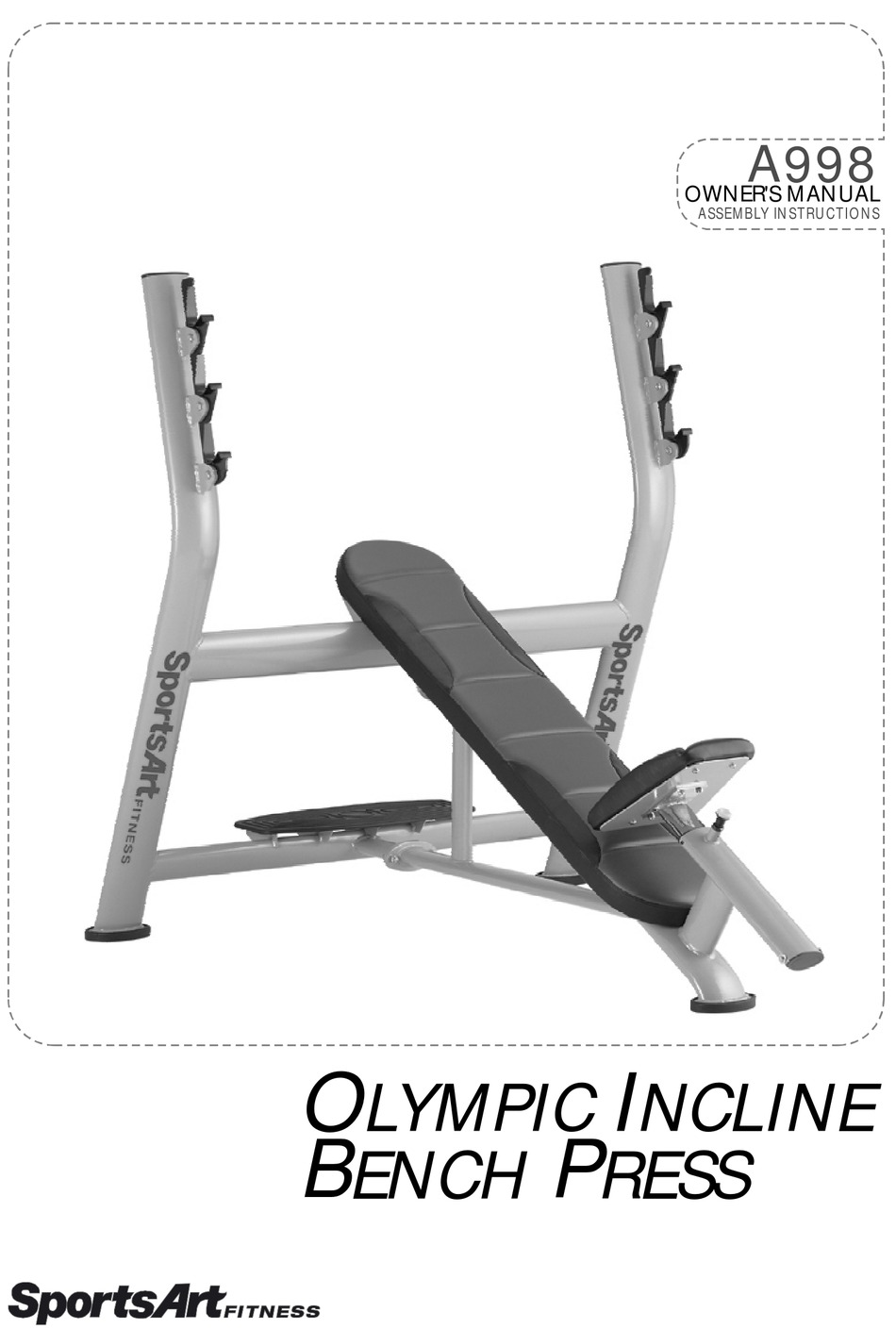

- Page 1 A998 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS LYMPIC NCLINE ENCH RESS...
- Page 2 A. SAFETY INSTRUCTIONS ˙ Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. ˙ Assemble and operate the machine on a solid, level surface. DO NOT use outdoors or near water. ˙...
- Page 3 B. INTRODUCTION Support rack set Main frame Back cushion Rubber foot plate Seat cushion Seat plate Positioning knob User support frame...
- Page 4 C. LIST OF PARTS 1. One L Shaped hex key wrench M5 2. Two double-end open wrenches 8mm*17mm 3. One main frame 4. One user support frame 5. One back cushion 6. One seat cushion set...
- Page 5 D. ASSEMBLY INSTRUCTION Step 1: Secure the two frames with hardware provided as shown. Fig.1 Step 2: Insert the foot pad into the foot plate as shown. Fig.2...
- Page 6 Step 3: Secure the back cushion onto both frame pieces with hardware as shown. Fig.3 Step 4: Secure the seat plate with hardware provided as shown. Fig.4...
- Page 7 Step 5: Secure the seat cushion with hardware provided as shown. Fig.5...
- Page 8 D. SEAT CUSHION ADJUSTMENT Upward adjustment: Directly pull up the seat cushion to a comfortable starting position. Downward adjustment: 1. Pull out positioning knob "A" and hold it. 2. Adjust the seat cushion to a comfortable position. Fig.6...
