Summary of Contents for SportsArt Fitness A993

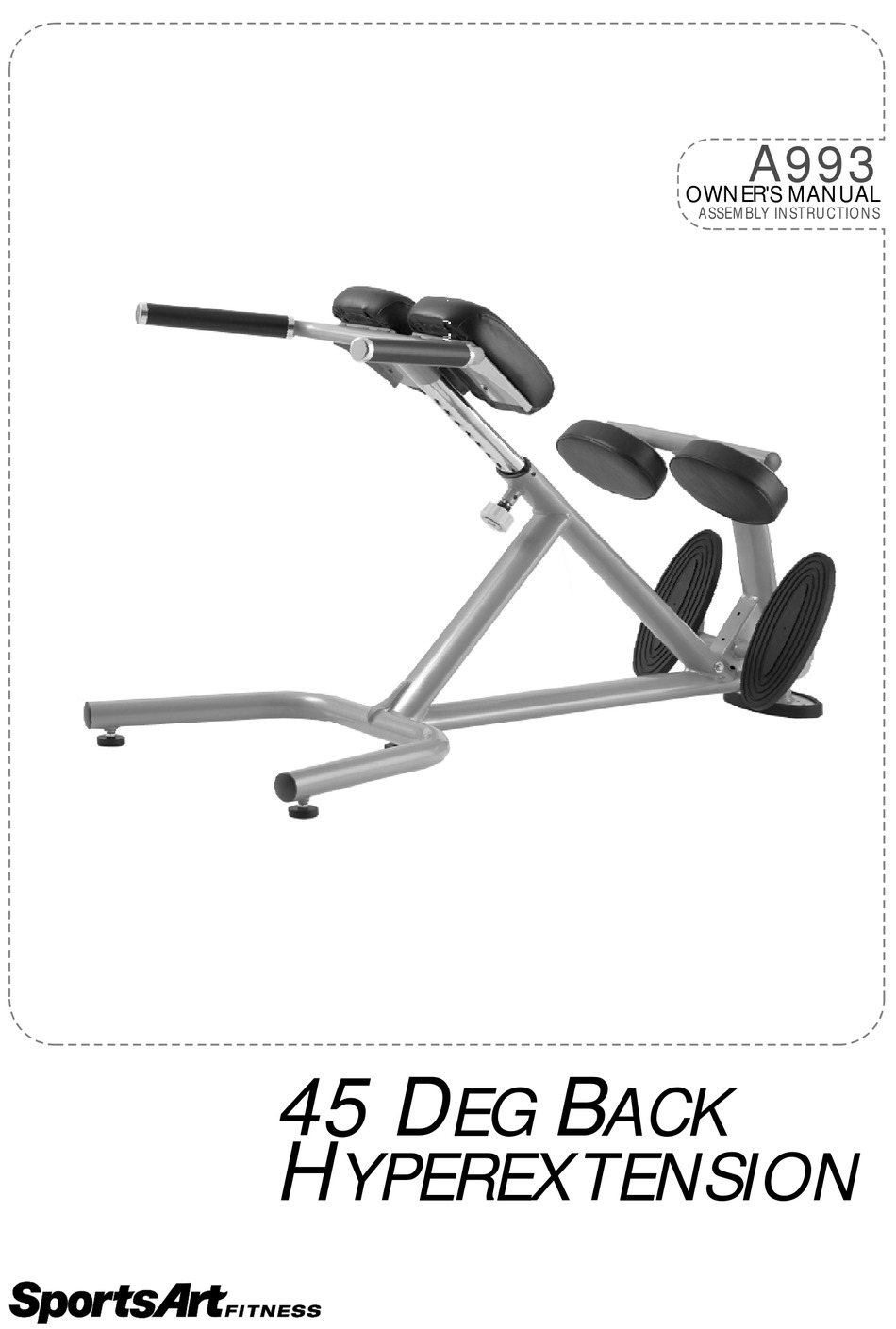

- Page 1 A993 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS 45 D YPEREXTENSION...
-
Page 2: Safety Instructions
A. SAFETY INSTRUCTIONS ˙ Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. ˙ Assemble and operate the machine on a solid, level surface. DO NOT use outdoors or near water. ˙... - Page 3 B. INTRODUCTION Handlebar set Leg cushion Rubber pad Positioning knob Foot plate set Leveler Rubber foot...
-
Page 4: List Of Parts
C. LIST OF PARTS 1.One L Shaped, M6 hex wrench 2.One double-end open wrench, 13mm and15mm 3.One main frame 4.One handlebar set... -
Page 5: Assembly Instruction
D. ASSEMBLY INSTRUCTION Secure all parts with hardware as shown Fastening Lock nut Flat washer Spring washer Hex screw Positioning Assemble with the hardware provided... -
Page 6: Handlebar Adjustment
E. HANDLEBAR ADJUSTMENT Upward adjustment: 1.Directly pull the handlebar to a comfortable starting position 2.Tighten positioning knob "A" to make it steady. Downward adjustment: 1.Loosen positioning knob "A" and then pull it out. 2.Adjust the handlebar to a comfortable starting position. Tight Loose... - Page 7 F. HORIZONTAL LEVEL ADJUSTMENT: Adjust leveler "A" & "B" to level the machine. CAUTIONS: The leg cushion is flexible and can pivot up and down with body movement.
-
Page 8: Maintenance Schedule
G. MAINTENANCE SCHEDULE: (A993) Maintenance Schedule Unit exterior Clean. Inspect for looseness. Screws Tighten if needed. Cushions Wipe clean with a damp cloth. Extension Clean then lubricate. tube... -
Page 9: Maintenance Task List (Strength Products)
H. MAINTENANCE TASK LIST (STRENGTH PRODUCTS): Like cars, fitness products require maintenance. Regular maintenance extends product life, and failure to maintain products can void the manufacturer's warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks ®... -
Page 10: Maintenance One-Year Maintenance Log
I. MAINTENANCE ONE-YEAR MAINTENANCE LOG: Facility : Supervisor: Product Model Number : Serial Number: Start Date: End Date: Daily Tasks Weeks 8-14 Weeks 1-7 Weeks 15-21 Weeks 22-28 Completed Daily Tasks Weeks 29-35 Weeks 36-42 Weeks 43-49 Weeks 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14...
