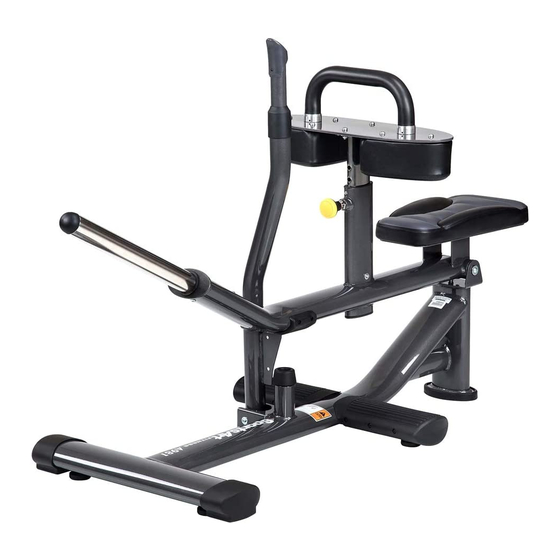

SportsArt Fitness A981 Owner's Manual
  1. Manuals
  2. Brands
  3. SportsArt Fitness Manuals
  4. Fitness Equipment
  5. A981
  6. Owner's manual

SportsArt Fitness A981 Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
A981
OWNER'S MANUAL
ASSEMBLY INSTRUCTIONS
C
S
ALF
EATED

Advertisement

loading
Need help?

Need help?

Do you have a question about the A981 and is the answer not in the manual?

Questions and answers

Related Manuals for SportsArt Fitness A981

Summary of Contents for SportsArt Fitness A981

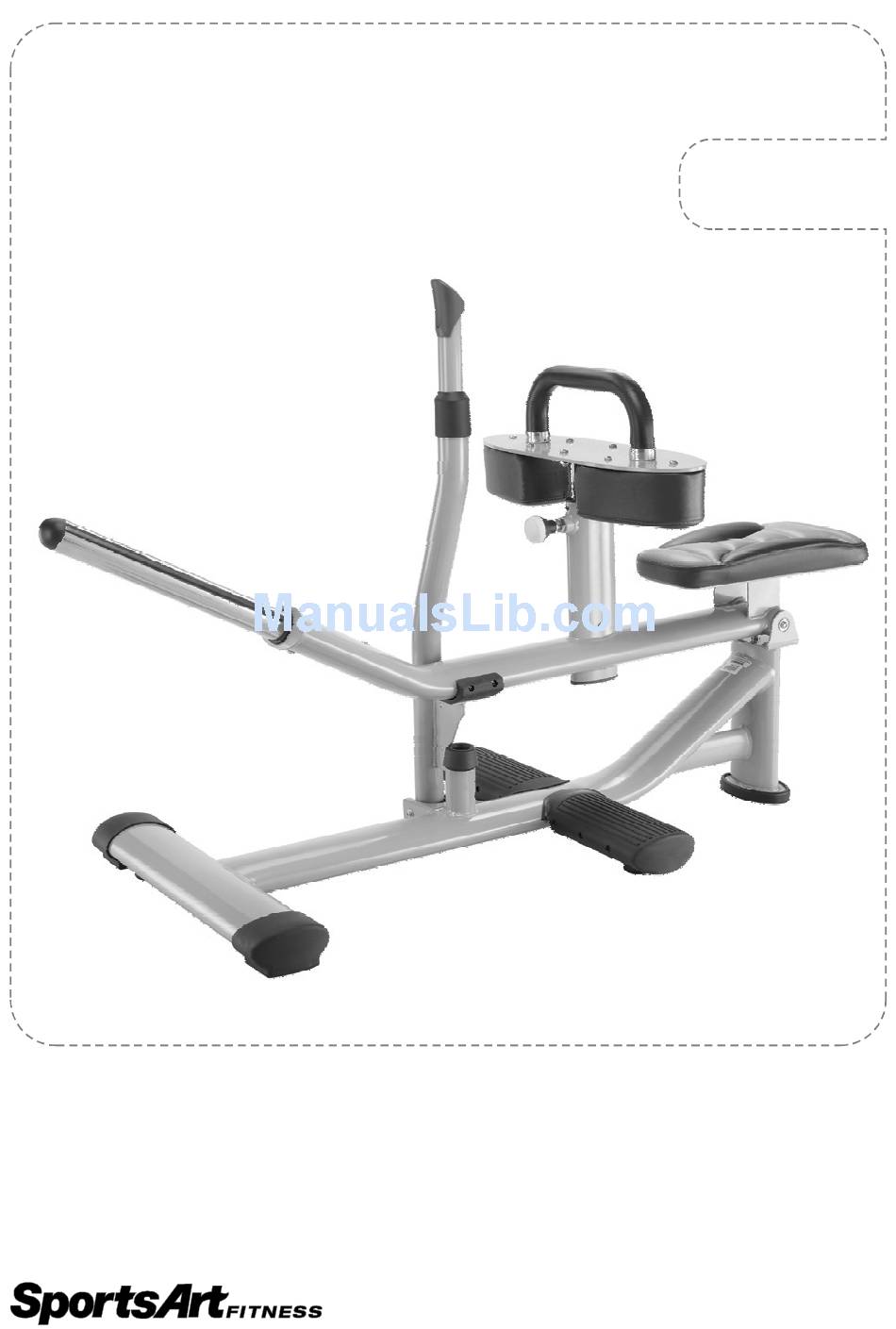

  • Page 1 A981 OWNER'S MANUAL ASSEMBLY INSTRUCTIONS EATED...

  • Page 2: Safety Instructions

    A. SAFETY INSTRUCTIONS ˙ Read all cautions/warnings and obtain proper instruction on use of the machines prior to using. Use appropriate positioning and controlled movements. ˙ Assemble and operate the machine on a solid, level surface. DO NOT use outdoors or near water. ˙...
  • Page 3 B. INTRODUCTION Seat cushion Adjustable stem Leg cushion Positioning knob A Handlebar Upper frame Weight plate rod Main frame Foot pad Stopper pad Safety stopper Rubber foot plate End cap...

  • Page 4: List Of Parts

    C. LIST OF PARTS 1. Two L-shaped, M5 hex wrenches 2. Two L-shaped, M4 hex wrenches 3. One double-ended open wrenches, 8mm and 17mm 4. One main frame 5. One upper frame 6. One seat cushion set 7. One leg cushion set 8.

  • Page 5: Assembly Instruction

    D. ASSEMBLY INSTRUCTION Step 1: Secure the seat plate onto the upper frame as shown. Step 2: Secure the seat cushion onto the seat plate as shown. Fig.1 Fig.2...
  • Page 6 Step 3: Secure the upper frame onto the main frame with the hardware provided as shown. Fig.3 Step 4: Secure the handlebar onto the main frame as shown. Fig.4...
  • Page 7 Step 5: Secure the leg cushion onto the adjustable stem with screws provided as shown. Fig.5 Step 6: 1.Insert the weight plate rod into frame tube A. 2.Secure the hardware provided as shown. Fig.6...
  • Page 8 E. OPERATING INSTRUCTION 1. Before exercising, inspect the machine. The handlebar should hold the upper frame as shown in Fig. 1. 2. Place weight plates onto the weight plate rod as the user desires. 3. Pull positioning knob "A" out. 4.
  • Page 9 F. HORIZONTAL LEVEL ADJUSTMENT 1. Adjust leveler "A" to level the machine. 2. Adjust leveler "B" so it presses against the ground. (Notes: If leveler "B" does not touch the ground, the machine will be unsteady during operation.) Fig.1...
