Final Steps - Dynojet Power Commander FC Installation Instructions

FIG.G
FIG.H
IFC22901.01 www.powercommander.com

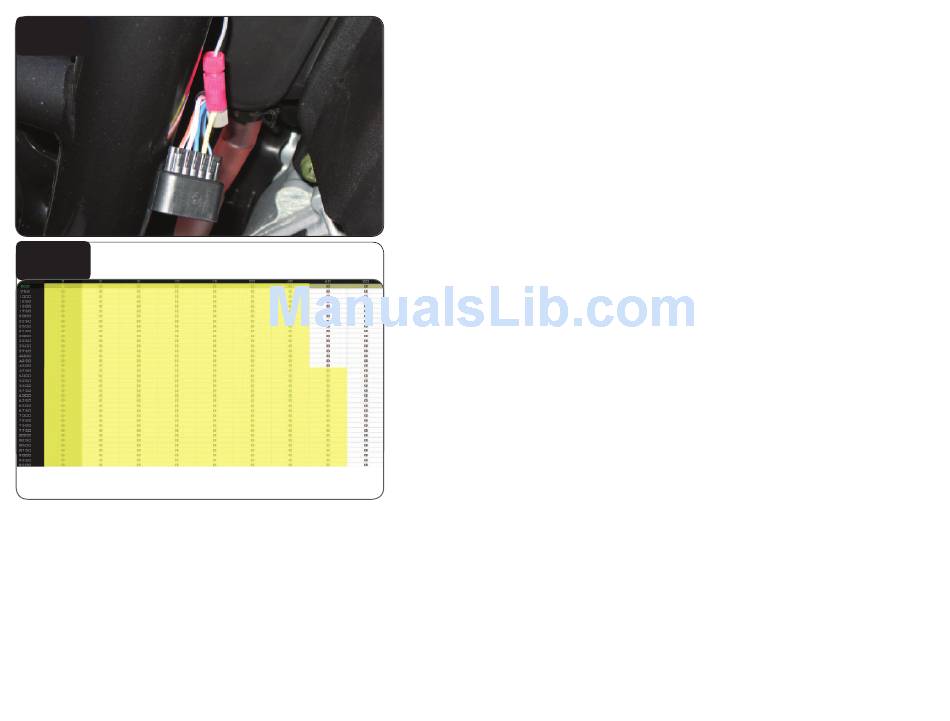

11 Using the supplied posi-tap attach the GREY wire from the PCFC to the
YELLOW wire of the stock TPS harness (Fig. G).
12 Connect the TPS harness back onto the throttle body.
13 Reinstall bodywork.
The PCFC for this model controls the stock closed loop area. This area is
represented by the highlighted cells shown in Figure H. The PCFC is designed
to achieve a target AFR of 13.6:1. To use this PCFC you must retain your
stock O2 sensor.
It is not recommended to alter the values in the highlighted area unless
instructed to do so by a Dynojet technician.
2009-2014 Yamaha Zuma 125 - 5
