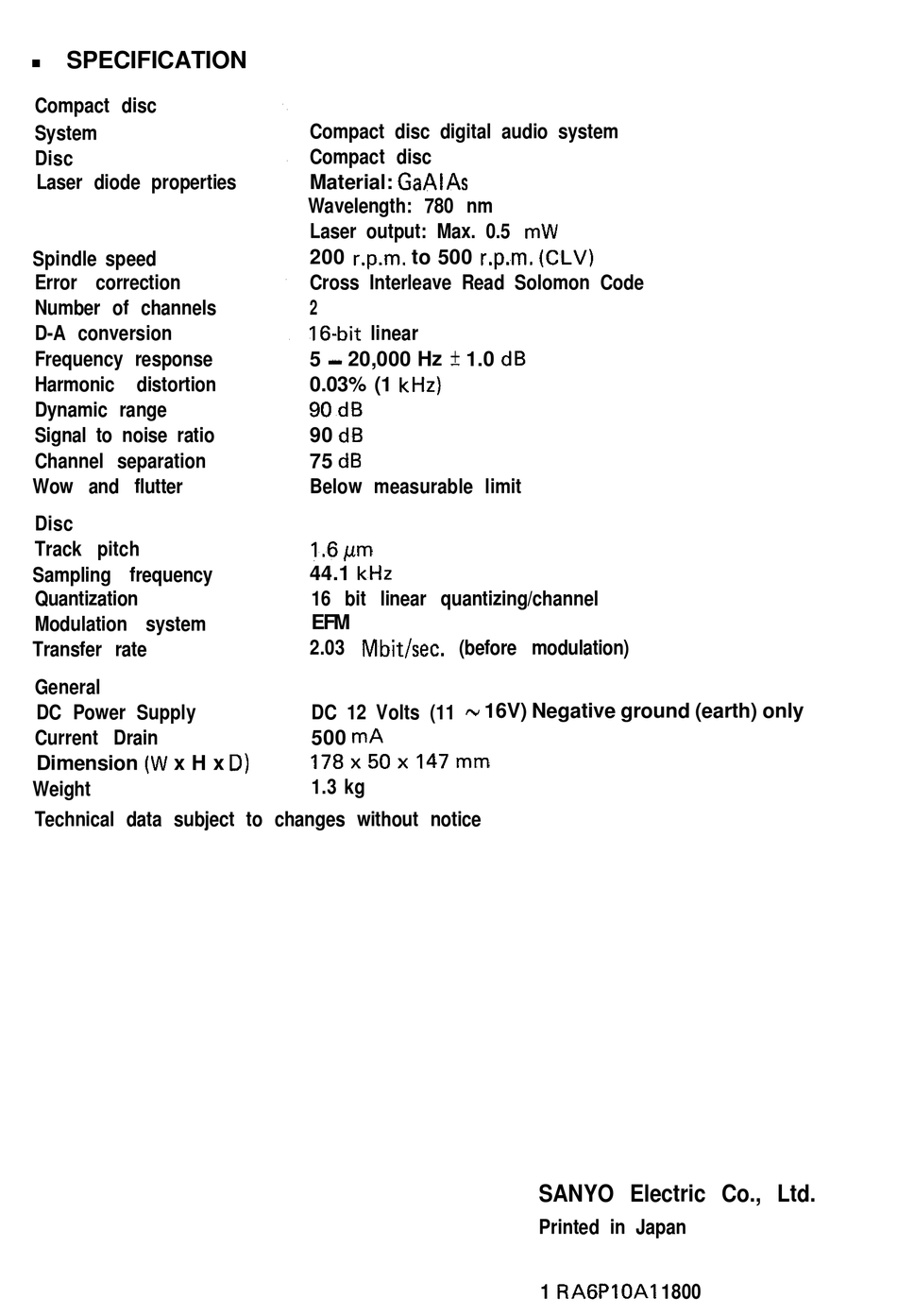

SPECIFICATION
n
Compact disc
System
Disc
Laser diode properties
Spindle speed
Error correction
Number of channels
D-A conversion
Frequency response
Harmonic
distortion
Dynamic range
Signal to noise ratio
Channel separation
Wow and flutter
Disc
Track pitch
Sampling frequency
Quantization
Modulation system
Transfer rate
General
DC Power Supply
Current Drain
Dimension (W x H x D)
Weight
Technical data subject to changes without notice
Compact disc digital audio system
Compact disc
Material: GaAlAs
Wavelength: 780 nm
Laser output: Max. 0.5 mW
200 r.p.m. to 500 r.p.m. (CLV)
Cross Interleave Read Solomon Code
2
5 - 20,000 Hz + 1.0 dB
0.03% (1 kHz)
90 dB
75 dB
Below measurable limit
44.1 kHz
16 bit linear quantizing/channel
EFM
2.03 Mbit/set. (before modulation)
DC 12 Volts (11 - 16V) Negative ground (earth) only
500 mA
1.3 kg
SANYO Electric Co., Ltd.
Printed in Japan
1 RAGPIOAI 1800
