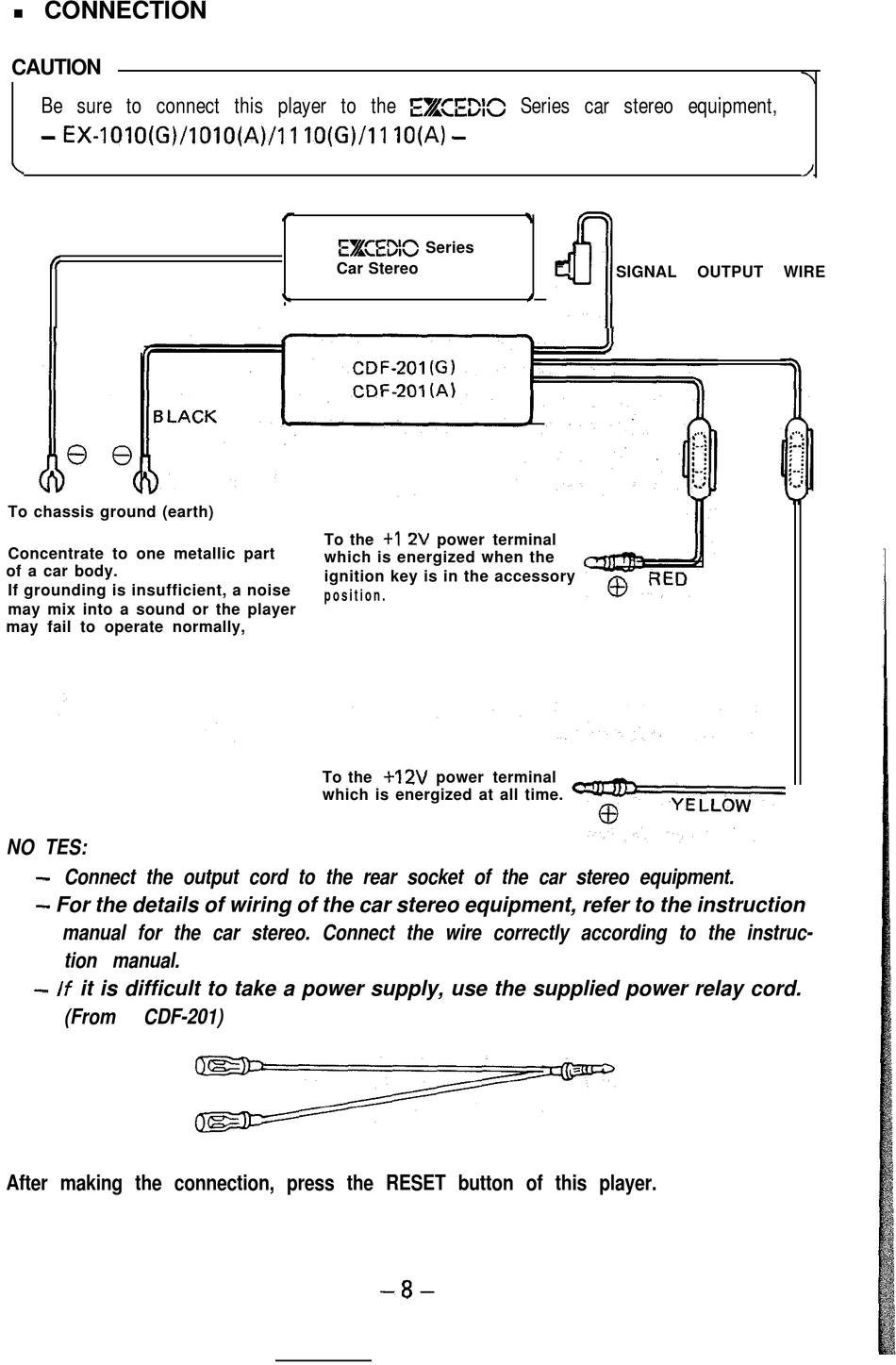

CONNECTION
n
CAUTION
Be sure to connect this player to the ExCEDic Series car stereo equipment,
To chassis ground (earth)
Concentrate to one metallic part
of a car body.
If grounding is insufficient, a noise
may mix into a sound or the player
may fail to operate normally,
NO TES:
manual for the car stereo. Connect the wire correctly according to the instruc-
tion manual.
(From
CDF-201)
After making the connection, press the RESET button of this player.
Car Stereo
To the +I 2V power terminal
which is energized when the
ignition key is in the accessory
p o s i t i o n .
To the +12V power terminal
which is energized at all time.
SIGNAL
OUTPUT
WIRE
