1

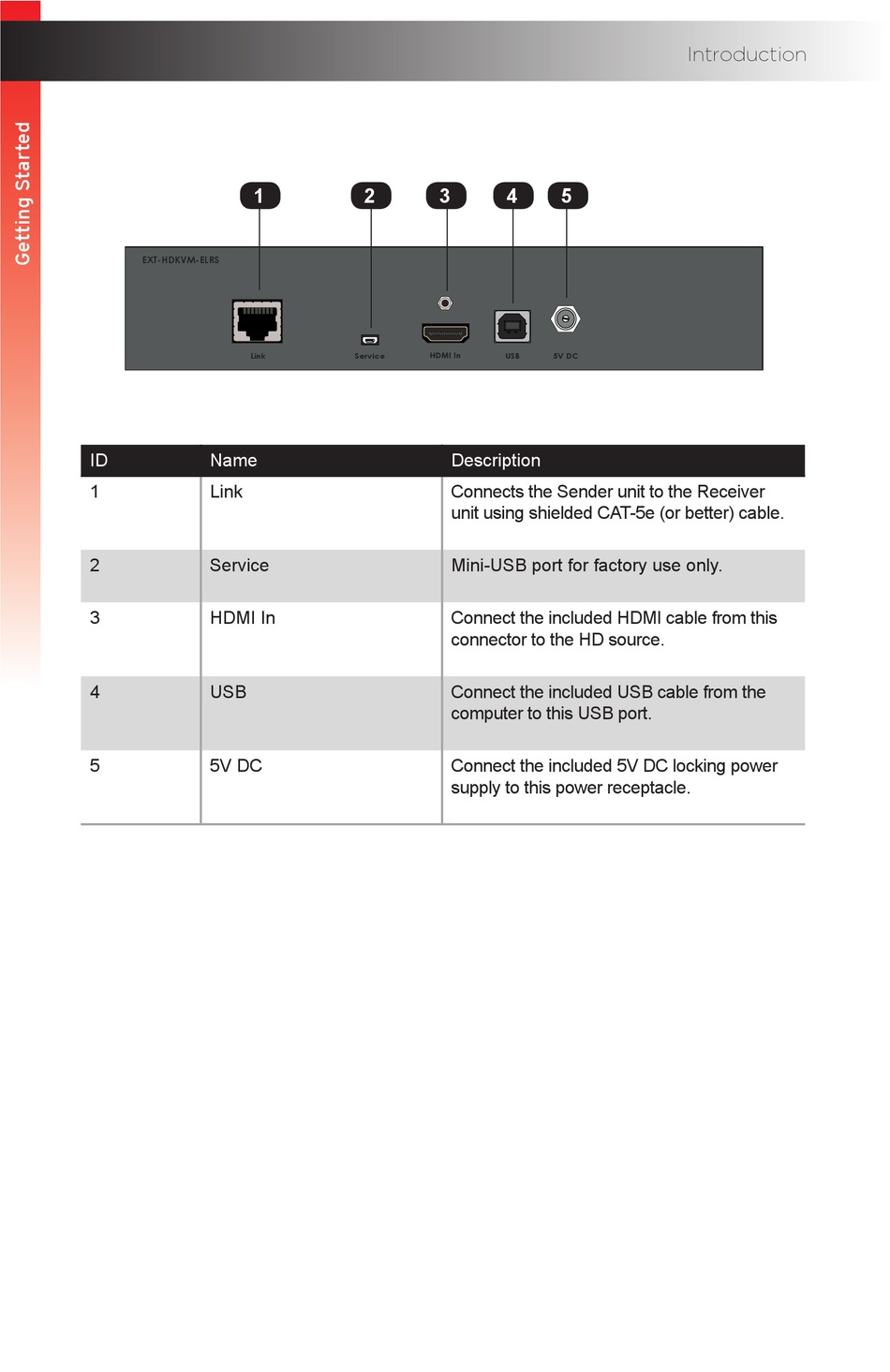

EXT-HDKVM-ELRS
Link
ID
Name
1
Link
2
Service
3
HDMI In
4
USB
5
5V DC
HD KVM ELR Extender over one CAT-5 S
®
2
3
HDMI In
Service
Description
Connects the Sender unit to the Receiver
unit using shielded CAT-5e (or better) cable.
Mini-USB port for factory use only.
Connect the included HDMI cable from this
connector to the HD source.
Connect the included USB cable from the
computer to this USB port.
Connect the included 5V DC locking power
supply to this power receptacle.
Link
Video
Power
USB
4
5
USB
5V DC
Introduction
