Gefen EXT-HDRS2IR-4K2K-1FO User Manual

Gefen EXT-HDRS2IR-4K2K-1FO User Manual

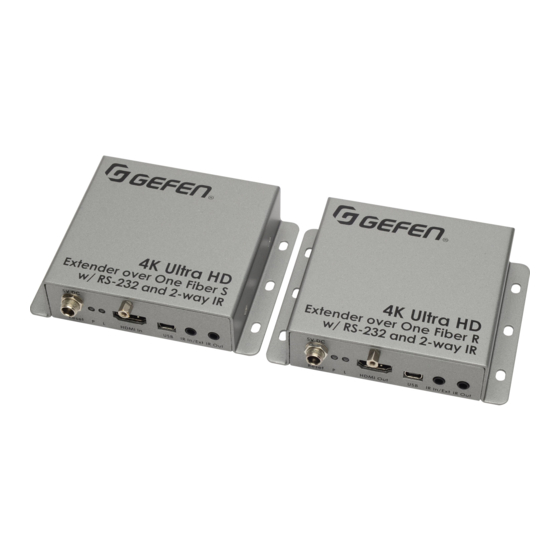

4k ultra hd extender over one fiber w/ rs-232 and 2-way ir

Advertisement

*Preferred
4K Ultra HD Extender
over One Fiber
w/ RS-232 and 2-way IR
EXT-HDRS2IR-4K2K-1FO
User Manual
RELEASE A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-HDRS2IR-4K2K-1FO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gefen EXT-HDRS2IR-4K2K-1FO

  • Page 1 *Preferred 4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR EXT-HDRS2IR-4K2K-1FO User Manual RELEASE A1...
  • Page 2 Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
  • Page 3 Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 4: Technical Support

    (800) 545-6900 (818) 772-9120 Email support@gefen.com http://www.gefen.com Mailing Address Gefen, LLC c/o Customer Service 20600 Nordhoff St. Chatsworth, CA 91311 Product Registration Register your product online by visiting the Register Product page under the Support section of the Gefen Web site.
  • Page 5 This product operates with SC-terminated single strand multimode fiber optic cable. Singlemode fiber is not supported. 4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR is a trademark of Gefen, LLC. © 2014 Gefen, LLC. All Rights Reserved.
  • Page 6 Features and Packing List Features • Extends HDMI, RS-232, and Bi-Directional IR over a single fiber strand • Extends Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) up to: ► 3300 feet (1000 meters) over 50/125μm OM3e/OM4 fiber ►...
  • Page 7: Packing List

    The 4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR ships with the items listed below. If any of these items are not present in the box when you first open it, immediately contact your dealer or Gefen. •...
  • Page 8: Table Of Contents

    Table of Contents Getting Started Introduction......................2 Sender Unit ....................2 Receiver Unit ....................4 Installation ......................6 Connection Instructions ................. 6 Sample Wiring Diagram ................6 Basic Operation Bidirectional IR Control..................10 Controlling the Source from the Viewing Location ........10 Controlling the Display from the Source Location ........
  • Page 11: Getting Started

    4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR Getting Started Introduction......................2 Sender Unit ....................2 Receiver Unit ....................4 Installation ......................6 Connection Instructions ................. 6 Sample Wiring Diagram ................6...
  • Page 12: Introduction

    Introduction Page Title Sender Unit EXT-HDRS2IR-4K2K-1FOS EXT-HDRS2IR-4K2K-1FOS EXT-HDRS2IR-4K2K-1FOS RS-232 Fiber RS-232 Fiber RS-232 Fiber ® ® ® 4K Ultra HD 4K Ultra HD Extender over One Fiber S 4K Ultra HD Extender over One Fiber S w/ RS-232 and 2-way IR w/ RS-232 and 2-way IR Extender over One Fiber S w/ RS-232 and 2-way IR...
  • Page 13 Used for upgrading the firmware. Updating the Firmware (page 20) for more information. IR In/Ext Connect an IR Extender (Gefen part no. EXT-RMT-EXTIRN) to this port. Alternatively, connect the 3.5mm mini-stereo connector of the IR cable from the IR In/Ext port to the automation system.
  • Page 14: Receiver Unit

    Introduction Page Title Receiver Unit EXT-HDRS2IR-4K2K-1FOR EXT-HDRS2IR-4K2K-1FOR EXT-HDRS2IR-4K2K-1FOR RS-232 Fiber RS-232 Fiber RS-232 Fiber ® ® ® 4K Ultra HD 4K Ultra HD Extender over One Fiber R 4K Ultra HD Extender over One Fiber R w/ RS-232 and 2-way IR w/ RS-232 and 2-way IR Extender over One Fiber R w/ RS-232 and 2-way IR...
  • Page 15 IR cable from the IR In/Ext port to the automation system. IR Out Connect an IR emitter (Gefen part no. EXT- IREMIT) from this jack to the IR sensor on the source device. page | 5...
  • Page 16: Installation

    FIBER OPTIC (SC-SC) CABLE HDMI CABLE RS-232 CABLE IR IN Ultra HD Source IR OUT IR Emitter Sender IR Extender (EXT-RMT-EXTIRN) Receiver Ultra HD Display IR Extender (EXT-RMT-EXTIRN) Automation Control Device RS-232 Controlled Unit IR Emitter EXT-HDRS2IR-4K2K-1FO page | 6...
  • Page 19: Basic Operation

    4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR Basic Operation Bidirectional IR Control..................10 Controlling the Source from the Viewing Location ........10 Controlling the Display from the Source Location ........11 Controlling the Source / Display from Different Locations ......12 LED Indicator Status ...................
  • Page 20: Bidirectional Ir Control

    EXT-HDRS2IR-4K2K-1FOS Bidirectional IR Control RS-232 Fiber Controlling the Source from the Viewing Location Connect the included IR extender to the IR In/Ext port on the Receiver unit. If using an automation system, connect the 3.5mm mini-stereo connector from the IR In/Ext port on the Receiver unit to the automation system.
  • Page 21: Controlling The Display From The Source Location

    Bidirectional IR Control ® Controlling the Display from the Source Location EXT-HDRS2IR-4K2K-1FOR Connect the included IR extender to the IR In port on the Sender unit. If using an automation system, connect the 3.5mm mini-stereo connector from the IR In port on the RS-232 Fiber Sender unit to the automation system.
  • Page 22: Controlling The Source / Display From Different Locations

    RS-232 Fiber Controlling the Source / Display from Different Locations Information Additional IR extenders (Gefen part no. EXT-RMT-EXTIRN) and IR emitters ® (Gefen part no. RMT-IREMIT) will be required for this configuration. EXT-HDRS2IR-4K2K-1FOR Using bidirectional IR, the 4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR...
  • Page 23: Led Indicator Status

    LED Indicator Status page | 13...
  • Page 24 LED Indicator Status page | 14...
  • Page 25: Dip Switch Configuration

    DIP Switch Configuration EXT-HDRS2IR-4K2K-1FOS RS-232 The bottom of the Sender unit has two banks of DIP switches. The bottom of the Receiver unit has a single bank of DIP switches. Each bank is comprised of four DIP switches. RS-232 Fiber Each DIP switch provides control over a different function.
  • Page 26: Baud Rate

    DIP Switch Configuration As of this writing, the only available feature supported by the DIP switches is the baud rate. Other DIP switches are reserved for future use. Baud Rate The baud rate is controlled by DIP switches on the Sender unit. Use the following DIP switch settings to configure the port speed of the RS-232 interface.
  • Page 27: Using Rs-232

    Using RS-232 The 4K Ultra HD Extender w/ RS-232 and 2-way IR supports RS-232 pass-through, allowing the control of remote RS-232 devices. The Sender and Receiver unit which are being used to pass-through the RS-232 data must be set to the same baud rate as the RS-232 host and client.
  • Page 29: Appendix

    4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR Appendix Updating the Firmware ..................20 Installing the Device Driver ................. 20 Updating the Firmware ................25 Surface Mounting Instructions ................28 Specifications ...................... 29...
  • Page 30: Updating The Firmware

    Updating the Firmware Installing the Device Driver If you are updating the firmware for the first time, the 4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR device driver must be installed. Connect the included 5V DC power supply to the Sender unit. Connect a USB cable (not included) from the Sender unit to the PC.
  • Page 31 Updating the Firmware The Computer Management window will open. In the left window pane, under System Tools, click Device Manager. In the right window pane, locate Other devices. The device “4k2k FO Extender Serial Port” will be displayed. 4k2k FO Extender Serial Port Select and right-click the “4k2k FO Extender Serial Port”...
  • Page 32 Updating the Firmware 11. Select Browse my computer for driver software. 12. Click the Browse... button. 13. Select the directory containing the 4K2KFiberOpticExtender.inf file, then click the OK button. (continued on next page) page | 22...
  • Page 33 Updating the Firmware 14. The following Windows Security dialog will be displayed: 15. Click Install this driver software anyway to being installing the driver. This process may take several minutes. (continued on next page) page | 23...
  • Page 34 Updating the Firmware 16. Once the driver has been successfully installed, the following dialog will be displayed: The COM port for the driver will also be indicated. COM12 is shown in the examples below. Your COM port assignment may vary. 17.
  • Page 35: Updating The Firmware

    4K Ultra HD Extender over One Fiber w/ RS-232 and 2-way IR Sender and Receiver unit(s) Download the latest firmware here: http://www.gefen.com/support/ download.jsp Extract the contents of the .zip file to the desktop on your computer. Make sure the power is connected to both the Sender and Receiver unit.
  • Page 36 Updating the Firmware 10. Press ‘4’ on the computer keyboard. The following will be displayed: Please send FW file for Sender 2xx MCU Waiting for the file to be sent ... (press ‘a’ to abort) CCCCCCCCCC 11. Begin the file transfer using the terminal program. For example, if using Hyperterminal, click Transfer >...
  • Page 37 Updating the Firmware 23. Connect the USB cable to the Receiver unit. 24. Press any key on the computer keyboard. The following will be displayed: ------ Receiver Appl Menu (Ver 1.15) ------ Remote operation temporary not allowed Download Receiver 2xx MCU FW____________2 Download Receiver 10x MCU FW____________3 View 10x version and set Equalizer______6 Upgrade Now / Reboot____________________9...
  • Page 38: Surface Mounting Instructions

    Surface Mounting Instructions The Sender and Receiver units can be mounted on any flat surface, as shown below (screws not included). There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for connection and disconnection of the HDMI cables.
  • Page 39: Specifications

    Specifications Supported Formats Video • 4K x 2K (Ultra HD) • 1920 x 1200 (WUXGA) • 1080p Full HD Audio • 7.1 Linear PCM • Dolby® Digital • DTS-HD Master Audio™ Connectors, Indicators, and Controls Video Input (Sender) • 1 x HDMI Type A, 19-pin, female Video Output (Receiver) •...
  • Page 40 *Preferred Stretch it. Switch it. Split it. Gefen’s got it. ® 20600 Nordhoff St., Chatsworth CA 91311 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 1-800-545-6900 818-772-9100 818-772-9100 fax: 818-772-9120 fax: 818-772-9120 www.gefen.com www.gefen.com support@gefen.com support@gefen.com...
