1

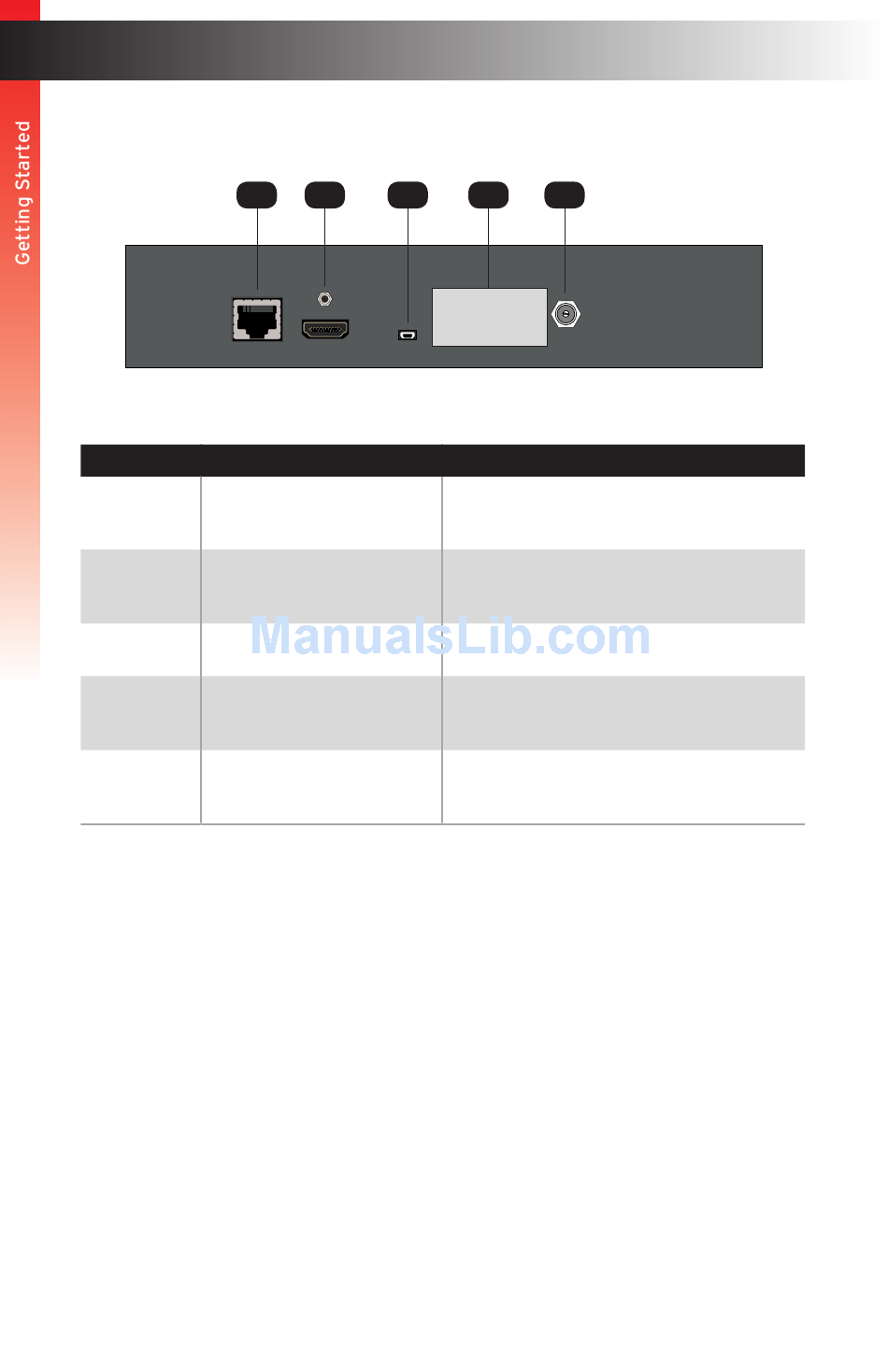

EXT-HDKVM-ELRR
Link
ID Name
1 Link
2 HDMI Out
3 Service
4 USB
5 5V DC
HD KVM ELR Extender over one CAT-5 R
®
2 3
HDMI Out Service
Description
Connects the Receiver unit to the Sender
unit using shielded CAT-5e (or better) cable.
Connect an HDMI cable from this connector
to the display.
2 E
Mini-USB port for factory use only.
Use these ports to connect up to three USB
devices.
Connect the included 5V DC locking power
supply to this power receptacle.
Link Video
Power USB
4 5
USB 5V DC
Introduction
