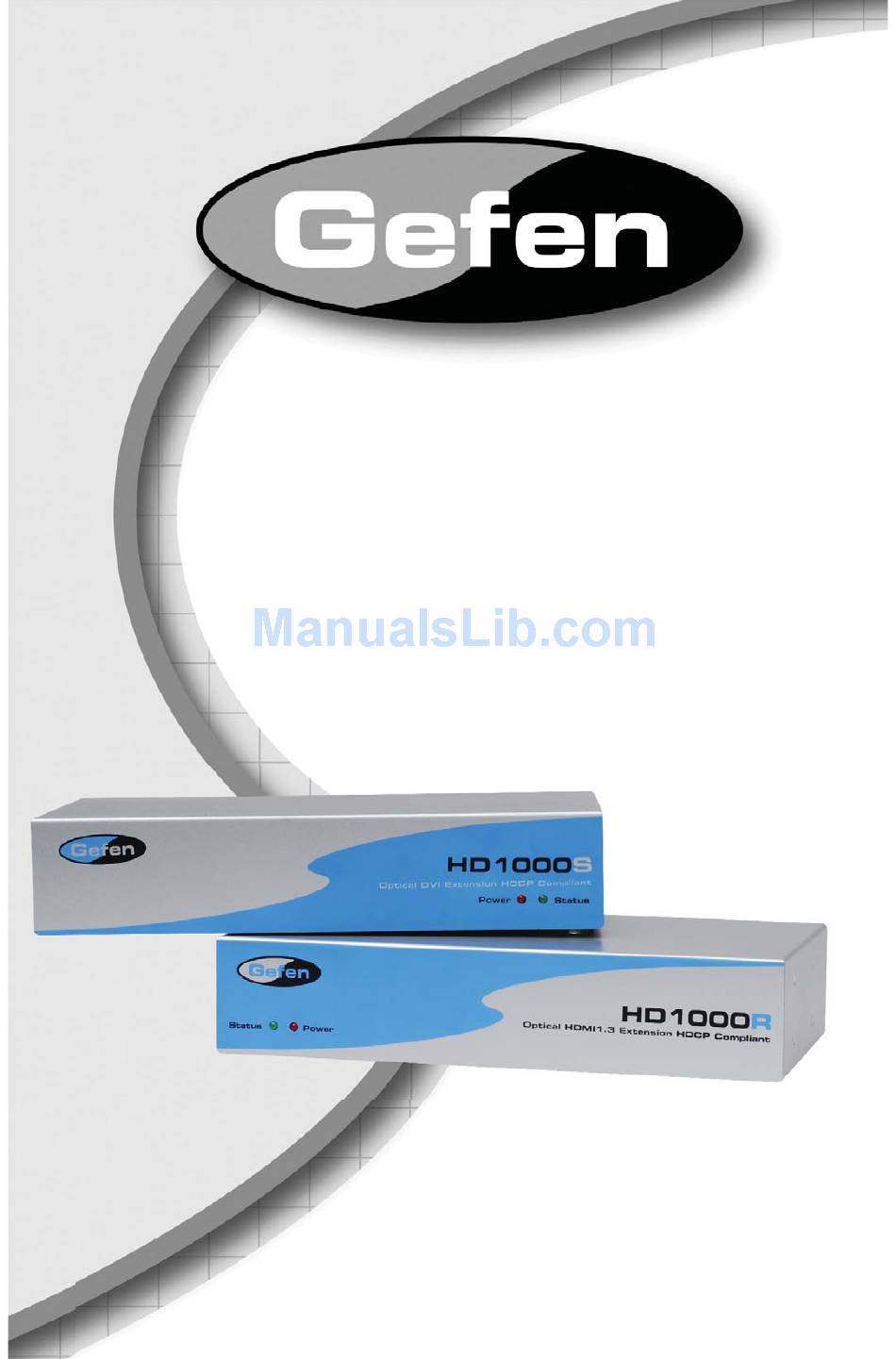

- Page 1 ® HD-1000 Extender EXT-HD-1000 User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. HDMI, the HDMI Logo, and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing in the United States and other countries.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction / Operation Notes Features Sender Panel Descriptions Receiver Panel Descriptions Connecting and Operating the HD-1000 Network Cable Wiring Diagram Specifi cations Warranty... -
Page 4: Introduction / Operation Notes
INTRODUCTION The Gefen HD-1000 allows an HDMI video signal to be extended up to 330 feet (1640 w/o HDCP) using multi-mode LC-LC fi ber optic cable. Fiber Optics technology allows the HD-1000 to carry video signals over long distances that are not possible with other technologies. -
Page 5: Features
FEATURES Features • Extends high defi nition HDMI compliant devices up to 330 feet (100 meters) • Uses a 4 strand multi mode LC-LC fi ber optic cable for HDMI and a CAT5e cable for DDC/control signals • Extends range of HDMI by equalizing signals •... -
Page 6: Sender Panel Descriptions
SENDER PANEL DESCRIPTIONS Front Panel Power LED Indicator Status LED Indicator Back Panel HDMI Input RJ-45 Port Port Fiber Optic LC-LC Terminals 5V DC Power Input... -
Page 7: Receiver Panel Descriptions
RECEIVER PANEL DESCRIPTIONS Front Panel Power LED Indicator Status LED Indicator Back Panel RJ-45 HDMI Port Output Fiber Optic Port LC-LC Terminals 5V DC Power Input... -
Page 8: Connecting And Operating The Hd-1000
CONNECTING AND OPERATING THE HD-1000 How To Connect The HD-1000 Connect the HDMI source to the HD-1000 sender unit using the supplied HDMI cable. Connect a user supplied CAT-5, CAT-5e or CAT-6 cable to the sender unit. Connect four user supplied multi-mode LC terminated fi ber optic cables into HD-1000 sender unit. -
Page 9: Network Cable Wiring Diagram
Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table above when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance. -
Page 10: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock................225 MHz Input Video Signal ..................1.2V p-p Input DDC Signal ................5V p-p (TTL) Single Link Range ............1080p, 2k, 1920 x 1200 HDMI Connector ..............Type A, 19 pin female Video Link Connector .................. LC X 4 DDC Link Connector .............. -
Page 11: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 12 Rev X4 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
