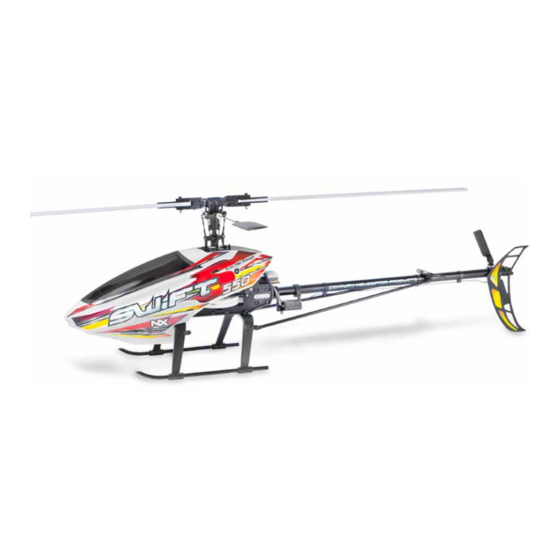

- Page 1 QUICK BUILD GUIDE Version 1.00 © Century Helicopter Products - All Rights Reserved.
-
Page 2: Box Contents
CENTURY SWIFT NX QUICK BUILD GUIDE Box contents Start with the main frame. Remove the elevator servo tray as shown. Configure a servo arm from your servo package and install M2 steel balls and nuts as shown. Make sure the distance between the balls is about 21.5mm. - Page 3 CENTURY SWIFT NX QUICK BUILD GUIDE Configure two servos as shown. Install the M2 steel balls and nuts. The Using the silver M2.3 phillips screws, install the servos into the sides of the distance between the balls should be about 27mm. Make sure to use main frame as shown.
- Page 4 CENTURY SWIFT NX QUICK BUILD GUIDE Install the flybar paddles. Make sure the space between the flybar paddles Install the flybar and flybar control arms. Make sure your flybar is centered and the head block is even on both sides.
- Page 5 CENTURY SWIFT NX QUICK BUILD GUIDE Using the M3x4 set screws, secure the landing skids in place. Make sure Motor shown is not included in the kit. You will need a motor, mounting not to overtighten these set screws. screws, and pinion. The pinion size will be dependent on your battery voltage and kV rating of your motor.
- Page 6 CENTURY SWIFT NX QUICK BUILD GUIDE Undo the M3x35 cap screw as shown. Install the vertical tail fin as shown. Locate the front of tail boom assembly. Position the transmission box into the main frames. Set up gear mesh by making sure the gears are not too close to each other.
- Page 7 CENTURY SWIFT NX QUICK BUILD GUIDE Locate the tail boom supports and screws. Install the tail boom supports onto the horizontal fin support as shown using the M3x8 self tapping phillips head screws. Install the front part of the tail boom supports onto the landing struts using Your tail boom and struts should look like this after installing of the boom the M3x8 self tapping phillips head screws.
- Page 8 After making the holes, install screws. the rubber grommets into place. You are done building your Swift NX. Please refer to your electronics manuals for further setup instructions. Please refer to the main instruction manual for more detailed information on the building and setup.
