  • Page 1 Version 1.10 © 2013 Century Helicopter Products - All rights reserved.

  • Page 2: Flight Checklist

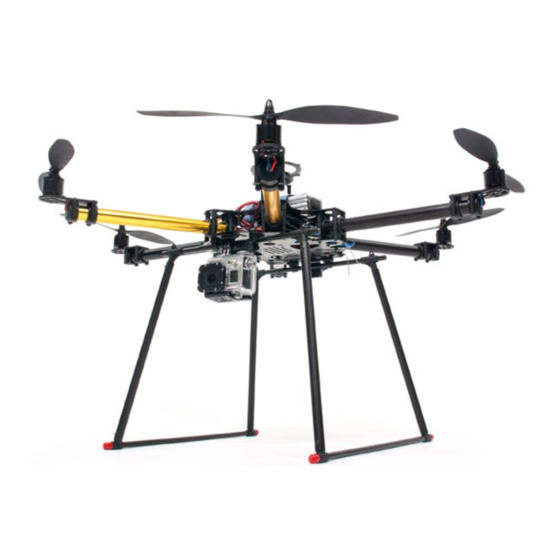

    Thank You Thank you for purchasing the all new NEO 600/600 class of multi-rotor aircraft. By incorporating the latest designs and the possibilty of running on blade sizes from 10” to 12” propellers, the lifting capabilities and stability of the NEO 600 & 660 are unmatched.
  • Page 3 NEO 600 & 660 AMA RULES & REGULATIONS General 1. Model aircraft will not be flown: (a) In a careless or reckless manner. (b) At a location where model aircraft activities are prohibited. 2. Model aircraft pilots will: (a) Yield the right of way to all man carrying aircraft.

  • Page 4: Arm Assembly

    NEO 600 & 660 ARM ASSEMBLY (ARF Version Only) (ARF Version Only) Description Part # 10-Inch Propeller( 10寸螺旋桨)  CN2229 Century HWC 2212 M otor(X2212马达) CNMR2212A CNMR6001 Black Motor Mounting Plate( 黑色马达固定板) CNMR6001 Silver Motor Mounting Plate( 银色马达固定板) CNMR6003 L=13mm Aluminum Tube Holder(13mm 铝管固定座) 20x233 Black Aluminum Tube(233mm 长黑色铝管)
  • Page 5 NEO 600 & 660 SWIVEL ARM ASSEMBLY (NEO 660) L=22mmAluminum Tube Holder(22mm Description Part # CNMR6010 61mm Aluminum Post(61mm 铝柱) CNM3x6BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x6 CNM3x6BHCS CNM3x30BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x30 CNMR6008A1 Flush Head Cap Screws( 斜头内六角螺丝)M3x6 CNM3x8BHCS...
  • Page 6 NEO 600 & 660 ARM ASSEMBLY (NEO 600) Description Part # CNMR6010 61mm Aluminum Post(61mm 铝柱) CNMR6024B Upper Frame Plate( 机架上固定板) CNM3x6BHCS CNM3x6BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x6 CNM3x30BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x30 CNM3x8BHCS CNMR6008B L=22mm Aluminum Tube Holder(22mm 铝管固定座)
  • Page 7 GPS SAVER (NEO 660) NEO 600 & 660 Description Part # CNMR6010 M3x8 Nylon Screws(3x8 尼龙螺丝) CNM3x8 CNMR6010 GPS Protection Board (GPS保护板) CNMR6010 L=15mm Hex Nylon Column(15mm 长六角尼龙柱) CNMR6010 GPS Saver Plate ( GPS固定板) Page 7...
  • Page 8 GPS SAVER (NEO 600) NEO 600 & 660 Description Part # CNMR6010 M3x8 Nylon Screws(3x8 尼龙螺丝) CNMR6010 GPS Protection Board(GPS保护板) CNM3x8 CNMR6010 L=15mm Hexagon Nylon Post(15mm 长六角尼龙柱) GPS Saver Plate (GPS固定板) CNMR6010 Page 8...
  • Page 9 SOLDERING ESC TO DISTRIBUTION BOARD NEO 600 & 660 (ARF Version Only) NEO 660 (Optional item) Solder the ESC’s as shown to the distribution board included with your NEO multirotor. Make sure the Positive (Red +) wire and the Negative (Black -) are correctly connected.
  • Page 10 INSTALLING DISTRIBUTION BOARD NEO 600 & 660 NEO 660 CNM3x6BHCS NEO 600 Page 10...

  • Page 11: Landing Gear Assembly

    NEO 600 & 660 LANDING GEAR ASSEMBLY FOR NEO 600, PART #2 SHOULD BE CNMR6016B (200mm Aluminum Strut) Description Part # Lower Right T Joint (右下脚架) CNMR6015 CNMR6016A Aluminum Strut 260 mm (260 mm 铝管 ) Upper Right T Joint (右上脚架) CNMR6015 Landing Gear Cross Boom 265mm ( 265mm  管...
  • Page 12 LANDING GEAR AND ELECTRONICS (NEO 660) NEO 600 & 660 CNM3X10TS Description Part # Self-tapping Screw (脸捣 ) CNM3X10TS (Optional item) (Optional item) (Optional item) (ARF Version Only) (Optional item) Part # Description DJI GPS (Optional Parts) DJINZM2GPS DJINZV2 NAZA (Optional Parts) Naza 主控器...
  • Page 13 LANDING GEAR AND ELECTRONICS (NEO 600) NEO 600 & 660 CNM3X10TS Description Part # Landing Gear Plate(脚架固定板) CNMR6021 CNM3x14BHCS Button Head Cap Screw( 圆头内六角螺丝)M3x14 (Optional item) (Optional item) (Optional item) (ARF Version Only) Description Part # DJI GPS (Optional) DJIGPSMDL NAZA (Optional) ( 主控器)
  • Page 14 BUILD PHOTOS (USING NEO 600 AS EXAMPLE) NEO 600 & 660 Using short tube holder (#4) and motor mount- Assemble the NEO 600 lower frame plate and Turn over the lower frame plate and install the ing plate (#3) assemble the arm together.
  • Page 15 BUILD PHOTOS (USING NEO 600 AS EXAMPLE) NEO 600 & 660 Assemble the GPS saver cage together, and Attach the upper frame plate along with “GPS The 1/4” camera mount hole indicates the front of install on top of the upper frame plate.
