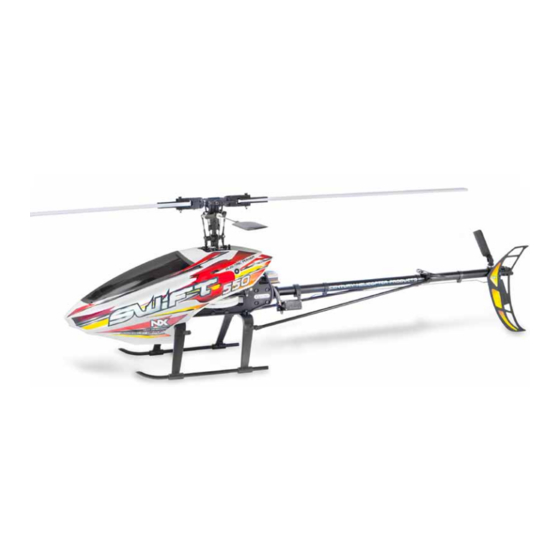

INSTRUCTION MANUAL

Kit Features:
Lightweight yet extremely rigid plastic composite frames.
120 degree CCPM for precise control.
CG is high up offering crisp rolling maneuvers.
Large electronics/battery tray is hidden underneath canopy for protection.
Auto-rotation bearing along with a driven tail hub comes standard.
Belt driven tail system for easy maintance and low cost repairs.
Tunable flight characteristics for stability or speed.
Canopy comes with high visibility decals and tinted windshield for monitor-
ing electronics.
© Century Helicopter Products - All Rights Reserved.

Specifications:

Length: 110.5cm (43.5in)
Height: 36cm (14.2in)
Width: 17.8cm (7.0in)
Main rotor diameter: 124.5cm (49in)
Tail rotor diameter: 210mm (8.25in)
Main rotor blades: 520mm-550mm
Tail rotor blades: 75mm (2.9in)
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Swift NX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Century Helicopter Products Swift NX

Summary of Contents for Century Helicopter Products Swift NX

  • Page 1: Instruction Manual

    Belt driven tail system for easy maintance and low cost repairs. Main rotor blades: 520mm-550mm Tunable flight characteristics for stability or speed. Tail rotor blades: 75mm (2.9in) Canopy comes with high visibility decals and tinted windshield for monitor- ing electronics. Version 1.00 © Century Helicopter Products - All Rights Reserved.

  • Page 2: Warranty Period

    INTRODUCTION The Swift NX is an R/C helicopter that is designed for beginners to advanced helicopter pilots. It comes 65% factory built so that the you can get to flying as quickly as possible. The drivetrain is equipped to handle the power of modern electric motors and power systems..

  • Page 3: Flight Checklist

    CENTURY SWIFT NX FLIGHT CHECKLIST Please note this checklist is not intended to be a replacement for the content included in this instruction manual. Although it can be used as a quick start guide, we strongly suggest reading through this manual completely before proceeding.

  • Page 4: Required Items

    CENTURY SWIFT NX REQUIRED ITEMS 6 CHANNEL RECEIVER (MINIMUM) CN2051 SERVOS X ACCURATECH BLADE BAL- 6 CHANNEL ANCER V.2 CCPM TRANSMITTER (MINIMUM) GYRO ELECTRONIC SPEED CONTROLLER RECEIVER BATTERY CN2050 CN2034A PADDLE GAUGE BALL LINK PLIERS CN2017 CN2027 HEX DRIVERS G-FORCE PITCH GAUGE HOBBY SCISSORS 1.5, 2.0, 2.5, 3.0, 4.0...

  • Page 5: Battery Guidelines

    CENTURY SWIFT NX BATTERY GUIDELINES For the most efficient power, we recommend a Lithium Polymer (Li-Po) battery for the Swift NX. Please follow these directions when operating or charging the Li-Po battery. Note: Lithium Polymer batteries are significantly more volatile than the alkaline, NiCd or Ni-MH batteries used in RC applications.

  • Page 6: Lithium Polymer Battery Safety

    DO NOT store fully charged or discharged batteries in your helicopter. When cutting wires, always cut ONLY ONE WIRE AT A TIME. ** Century Helicopter Products will not be liable for any damages that may occur to your helicopter due to any misuse or mishandling as explained above.

  • Page 7: Initial Setup

    CENTURY SWIFT NX INITIAL SETUP Use the Velcro strips for mounting the Li-Po battery onto the battery tray. Once you have the battery mounted, use the supplied strap and secure the battery in place making sure the ESC (Electronic Speed Control) wires can connect to the battery wires.
  • Page 8 CENTURY SWIFT NX CONTROLS Position the helicopter to view it from the left or right side. Move the left-hand stick up and down to check the collective pitch con- trol. Front of Helicopter When the stick is pushed up, the swashplate should rise, increasing the pitch of the main blades.
  • Page 9 CENTURY SWIFT NX CONTROLS While viewing the helicopter from the rear (tail boom toward you), move the right-hand stick left and right to check aileron roll control. When the right-hand stick is pushed to the left, the swashplate should also tilt left.
  • Page 10 BATTERY GUIDELINES If you are not familiar with the primary flight controls of your Swift NX, please take a few minutes to familiarize yourself with them before proceeding and before attempting your first flight. This guide will be for Mode 2 users (typically flown in the USA). The left- hand stick on the transmitter controls both throttle/collective pitch (climb/descend) and rudder or tail (yaw left/right).
  • Page 11 CENTURY SWIFT NX BATTERY GUIDELINES Moving the left-hand stick to the left will turn (yaw) the nose of the helicopter to the left about the axis of the main shaft. This is ac- complished by changing the pitch of the tail rotor blades.

  • Page 12: Flight Controls

    CENTURY SWIFT NX FLIGHT CONTROLS The elevator trim can be used to help keep the helicopter from drifting forward or backward when in hover with no elevator stick input. For example, if the helicopter drifts forward when in hover, click the elevator trim lever downward until the helicopter hovers as level as possible with no forward drifting.
  • Page 13 CENTURY SWIFT NX FLIGHT CONTROLS The right-hand stick controls both elevator (pitch fore/aft) and aileron (roll). Pushing the stick forward will pitch the nose of the heli- copter downward, allowing the helicopter to be flown forward. Page 13...

  • Page 14: Preflight Checklist

    CENTURY SWIFT NX PRE-FLIGHT CHECKLIST Check the security of all screws and control/linkage balls on your model. Tighten any screws and control/linkage balls that may be loose and replace any screws, control/linkage balls or other parts that may be stripped.
  • Page 15 Swift NX, we suggest that your first and subsequent test flights be made outdoors in low-wind conditions only. While it is possible for the Swift NX to be flown in windy conditions, we strongly suggest that it only be flown in windy conditions once you become accustomed to your Swift’s flight characteristics.
  • Page 16 CENTURY SWIFT NX MAINTANANCE To keep your Swift NX in optimal and safe flying condition, routine maintenance is highly recommended. Some of the most important things to check are as follows: • Ball Links: Before each flying session, check to see that the plastic ball link ends are secure, but not tight (binding), on the linkage/ control balls.

  • Page 17: First Flight

    Always fly your Swift NX in an open area and at least 25 ft away from yourself or any person or animal. During a hover, you should be able to establish if the helicopter is drifting forward or backwards or left or right. This is when you want to trim your radio controls.

  • Page 18: Radio Control

    CENTURY SWIFT NX AMA RULES & REGULATIONS General 1) I will not fly my model aircraft in sanctioned events, air shows or model flying demonstrations until it has been proven to be airwor- thy by having been previously, successfully flight tested.

  • Page 19: Main Blade Grips

    CENTURY SWIFT NX MAIN BLADE GRIPS The following diagrams are offered to assist in reassembly of your Swift NX. Due to the constant changes and improvements in manufacturing, some illustrations may not look exactly like their counterparts that are currently in production.

  • Page 20: Blade Grip Assembly

    CENTURY SWIFT NX BLADE GRIP ASSEMBLY CNM3X6BHCS CNLR1014 CNBB0730 序号 编号 名称（英文-中文） 数量（PCS） CNBB1030 CNE524 BELL MIXER (平衡控制臂) CNBB364 3X6X2.5 BALL BEARING (轴承) CNLR1014 STAINLESS 3MM SHORT BALL (轴) CNM3X5ST CNE524 BELL MIXER SET (十字自攻螺丝) CNE524 BELL MIXER SET (平衡杆固定片)
  • Page 21 CENTURY SWIFT NX FLYBAR CONTROL ARM ASSEMBLY CNM3X6BHCS CNLR1014 CNBB0730 CNBB1030 CNM3X5ST CNLR1013 CNM4X4SS M3X6X3 序号 编号 名称（英文-中文） 数量（PCS） CNE519 (平衡控制臂) SEESAW TIE BAR SET CNBB1030 3X10X4 BALL BEARING (轴承) CNE518 SEESAW SHAFT (轴) Hint: Note the orientation CNM3X6ST M3x5 PHILLIPS TAPPING SCREWS (十字自攻螺丝)
  • Page 22 CENTURY SWIFT NX SWASHPLATE AND WASHOUT ASSEMBLY Make sure the distance on Make sure the distance on both sides are equal both sides are equal 3X5X3.5 CNE552 序号 编号 名称（中文-英文） 数量（PCS） CNE516A WASHOUT SET (控制臂固定座) CNM3X8CS SOCKET CAP SCREW (有头内六角螺丝) CNE552 3X5X3.5 SPACER...

  • Page 23: Pushrod Lengths

    CENTURY SWIFT NX PUSHROD LENGTHS 序号 编号 名称（英文-中文） 数量（PCS） CNE546 BALL LINK SET (球头连接杆) CNE545 PUSHROD SET (连杆) CNE545 PUSHROD SET (连杆) CNE546 BALL LINK SET (球头连接杆) CNE545 PUSHROD SET (连杆) CNE546 BALL LINK SET (球头连接杆) CNE545 PUSHROD SET (连杆)
  • Page 24 CENTURY SWIFT NX ELEVATOR SERVO & SIDE FRAME ASSEMBLY *DO NOT OVER TIGHTEN THE SCREWS Re-torque all the screws once the tailboom is mounted to the mainframe during final assembly 序号 编号 名称（英文-中文） 数量（PCS） CNE500 ELEVATOR SERVO BLOCK(伺服机座) NOT INCLUDED ELEVATOR SERVO (伺服机)
  • Page 25 CENTURY SWIFT NX MOTOR INSTALLATION & ELEVATOR ARM ASSEMBLY M3X15CS M3X7X0.5 CNBB0812 序号 编号 名称（英文-中文） 数量（PCS） CNE580AM A-ARM ONLY (A臂) CNLR1014 CNLR1014 STAINLESS 3MM SHORT BALL (球头螺丝) CNE580AM LOCK PIN(插销) CNE580A A-ARM MOUNT (A臂座) CNBB812 BEARING (轴承) CNBB2027 NOT INCLUDED MOTOR (马达)
  • Page 26 CENTURY SWIFT NX FRAME REINFORCEMENT POSTS INSTALLATION CNBB1019 序号 编号 名称（英文-中文） 数量（PCS） CNE536HX HEX SPACERS( 六角铝柱)36MM CNBB1019 10X19X5 BEARING CNE555A (陀螺仪板) ELECTRONICS PLATE Page 26...
  • Page 27 CENTURY SWIFT NX TAIL GEARBOX ASSEMBLY 序号 编号 名称（英文-中文） 数量（PCS） M3X14CS CNM3LOCK LOCK-NUT (M3螺母) CNE528A TAIL GEARBOX (尾管座) CNBB1350 5X13X4 BALL BEARING (轴承) M3X10CS CNE530 TAIL GEARBOX OUTPUT SHAFT (尾传动轴) 2X12MM PIN (插销 2x12) CNE529 BELT PULLEY CNE529 (皮带轮) CNE528A TAIL GEARBOX (尾管座)
  • Page 28 CENTURY SWIFT NX TAIL BLADE GRIP ASSEMBLY CNM3X16CS CNM3X14BHCS CNBB0830 序号 编号 名称（英文-中文） 数量（PCS） TAIL ROTOR HUB CNE539 (尾夹片固定座) CNBB038 3x8x3 BEARING (轴承) TAIL BLADE GRIPS (尾旋翼夹片) CNE540 CNLR1014 (有头内六角螺丝) CNM3X16CS M3x16 SOCKET HEAD CAP SCREWS CNE541 TAIL ROTOR BLADES (尾旋翼)

  • Page 29: Tail Pitch Plate Assembly

    CENTURY SWIFT NX TAIL PITCH PLATE ASSEMBLY 序号 编号 名称（英文-中文） 数量（PCS） CNM3X4SS BRASS SLIDER (铜滑套) CNE537 CNM3X14CS BEARING (滚珠轴承) 6x10x3 CNBB610 CNE537 PITCH SLIDER BASE (滑座) CNBB1060 CNE537 TAIL PITCH ARM (摆臂座) CNBB0360 CNE537 LOCK PIN(插销)M2x7 TAIL PITCH ARM (摆臂) CNE537 SET SCREW(无头内六角螺丝)M3x4...
  • Page 30 CENTURY SWIFT NX FRONT TRANSMISSION BOX ASSEMBLY Tail Drive Belt Orientation CNM3X12ST 序号 编号 名称（英文-中文） 数量（PCS） CNE534NX1 TAIL PUSHROD GUIDES (尾拉杆固定座) CNE544 TAIL SERVO MOUNT (尾翼伺服机座) CNE542 UPPER TRANSMISSION CASE (尾管夹片) CNBB410 CNE542 LOWER TRANSMISSION CASE(尾管夹片) CNM3LOCK M3 LOCKNUT (M3螺母) M4X6X0.5...
  • Page 31 CENTURY SWIFT NX BOOM SUPPORTS & FINS 序号 编号 名称（英文-中文） 数量（PCS） CNM3x8ST SELF TAPPING SCREWS (尖尾自攻螺丝)M3x8 CNE536TF HORIZONTAL FIN (水平翼) CNE535NX FIN MOUNT(水平翼支撑杆座) CNE543NX TAIL BOOM SUPPORT STRUTS (尾支撑杆) CNM3X8ST CNM3x8ST SELF TAPPING SCREWS (尖尾自攻螺丝)M3x8 CNE534NX TAIL PITCH CONTROL ROD (拉杆) BALL LINK (GRAY)(塑胶球头)

  • Page 32: Rudder Servo Installation

    CENTURY SWIFT NX RUDDER SERVO INSTALLATION 序号 编号 名称（英文-中文） 数量（PCS） NOT INCLUDED RUDDER SERVO (伺服机) NOT INCLUDED (摆臂) SERVO ARM M2.3X12 NOT INCLUDED SERVO MOUNTING PLATE (伺服机固定螺丝垫片) (2mm球头螺丝) STEEL BALL, 2mm THREAD, SHORT CNLR1013 CNLR1013 CNM2.3X12ST (伺服机固定螺丝2.3x12) ELEVATOR SERVO SETTING BOLT...
  • Page 33 CENTURY SWIFT NX SIDE FRAME & AILERON BELL CRANK M3x12CS CNM3X12ST CNLR1014 序号 编号 名称（英文-中文） 数量（PCS） CNM3x12CS M3x12 SOCKET HEAD CAP SCREWS (有头内六角螺丝) HW6205 BELLCRANK SPACER( 铁套)3x5x3 d3xD5x3 CNLR1014 M3 LINKAGE BALL( 球头螺丝) 头长5.8MM WASHOUT SET (摆臂) CNE502 M3x20 CNLR1014 M3 LINKAGE BALL( 球头螺丝) 头长5.8MM...

  • Page 34: Aileron Servo Installation

    CENTURY SWIFT NX AILERON SERVO INSTALLATION 序号 编号 名称（英文-中文） 数量（PCS） ELEVATOR SERVO (伺服机) NOT INCLUDED SELF TAPPING SCREWS (割尾自攻螺丝) CNM3x12ST M3 LINKAGE BALL (球头螺丝头长) 5.8MM CNLR1014 CNM3X12ST NOT INCLUDED SERVO MOUNTING PLATE (伺服机固定螺丝垫片) M2.3X12 M2.3 X 12 PHILLIPS SERVO SCREWS (伺服机固定螺丝2.3x12) CNM2.3X12ST...
  • Page 35 CENTURY SWIFT NX MOUNTING LANDING GEAR CNM3X8ST M3x20 序号 编号 名称（英文-中文） 数量（PCS） CNM3x8ST SELF TAPPING SCREWS(尖尾自攻螺丝) M3x8 3X7X0.5 MACHINED CAP SCREW (杯头内六角螺丝)M3x20 CNM3x20CS CNM3X7FW M3x7x.5 FLAT WASHERS (平面垫片) CNE612 HEAVY DUTY LANDING STRUTS(脚架) M3防松螺母 LANDING SKIDS(脚架铝管) CNE513A CNM3x4SS CNM3X4SS SET SCREW (无头内六角螺丝) M3x4 CNM3LOCK M3 LOCKNUT (M3 螺母)
  • Page 36 CENTURY SWIFT NX INSTALLING DRIVE GEARS & HEAD 序号 编号 名称（英文-中文） 数量（PCS） CNE511A (固定套) LOW PROFILE SHAFT COLLAR CNM4X4SS SET SCREW (无头内六角螺丝)M3x4 CNE510C (轴承座) AUTOROTATION HUB CNE510A MAIN GEAR (齿轮) CNM3X8FHCS FLUSH HEAD SCREW (斜头螺丝) CNE510D DRIVE TAIL HUB (轴承座)
  • Page 37 CENTURY SWIFT NX SIDE FRAME & AILERON BELLCRANK 序号 编号 名称（英文-中文） 数量（PCS） CNE546 (球头连接杆) BALL LINKS CNE545 (连杆) PUSHROD SET CNE545 (连杆) PUSHROD SET CNE546 BALL LINKS (球头连接杆) Page 37...
  • Page 38 CENTURY SWIFT NX RUDDER SERVO INSTALLATION INCLDED INCLDED INCLDED 序号 编号 名称（英文-中文） 数量（PCS） NOT INCLUDED BATTERY (电池) NOT INCLUDED (电池) RECEIVER BATTERY CNE505A ELECTRONICS MOUNTING PLATE (板) CNM2.5x6ST SELF TAPPING SCREWS (尖尾自攻螺丝)M2.5x6 NOT INCLUDED RECEIVER (接收机) NOT INCLUDED SWITCH (开关) NOT INCLUDED (防震垫片)
  • Page 39 CENTURY SWIFT NX WINDSHIELD & CANOPY 序号 编号 名称（英文-中文） 数量（PCS） CNE550NX SMOKED WINDSHIELD (还明罩) CNM2X5ST CNM2X5ST SCREW (螺丝) CNE549NX CANOPY (机头) RUBBER GROMMET (橡皮环) CN2210A Page 39...
  • Page 40 CENTURY SWIFT NX CANOPY MOUNTS CNM3X12CS 序号 编号 名称（英文-中文） 数量（PCS） CNE601 CANOPY MOUNT (机头固定铝柱) CNM3X12CS SOCKET HEAD CAP SCREW (有头内六角螺丝) Page 40...

  • Page 41: Main Blades

    CENTURY SWIFT NX MAIN BLADES IMPORTANT! When assembling the blades, use a 2-part expoxy or medium CA to glue the roots to the blades. Add tracking tape to measure tracking of the blades once the helicopter is flying. CNM4X30CS 序号...

  • Page 42: Replacement Parts

    CENTURY SWIFT NX REPLACEMENT PARTS CN2312 CN2322 CND421900LH CNE500 CN2210A Tracking Tape 550mm Main Blades Loop and Hook Strap Servo Block Canopy Grommets CNE503A CNE505B CNE502 Main Frames CNE504A CNE505A Electronics CCPM Bellcrank Set (Left and right) Motor Bottom Block...
  • Page 43 CENTURY SWIFT NX REPLACEMENT PARTS CNE533P Transmission Gear CNE534NX CNE534NX1 CNE535NX CNE532A Lock Pin Tail Pitch Control Rod Tail Pushrod Guides Horizontal Fin Mount Swift Tail Boom CNE536HX CNE536TF CNE537 CNE538 CNE539 Hex Spacers Fin Set Tail Pitch Slide Tail Pitch Lever...

  • Page 44: Option Parts

    CENTURY SWIFT NX OPTION PARTS CNBB364 CNBB410 CNBB610 CNBB614T CNBB36 4x10x4 Ball Bearing 6x10x3 Ball Bearing 6x14x5 Thrust Bearing 3x6x2.5 Ball Bearings 3x6x2.5 Ball Bearing CNBB614T2 CNBB812 CNBB814 6x14x5 Thrust Bearings 8x12x3.5 Ball Bearing 8x14x4 Ball Bearings OPTION PARTS CNE275PK...
  • Page 45 CENTURY SWIFT NX OPTION PARTS CN2517 CN2353 CNE520A Delrin CN2215AB CN2215ASF Flybarless Metal Flybarless Follower for Dampeners for Machined Head Button Swift Machined Head Rotor Head 10mm Main Shafts Flybarless System (Black) Button (Silver) CNE557 CNE558S CNE556 CNE564S CNC Machined...
