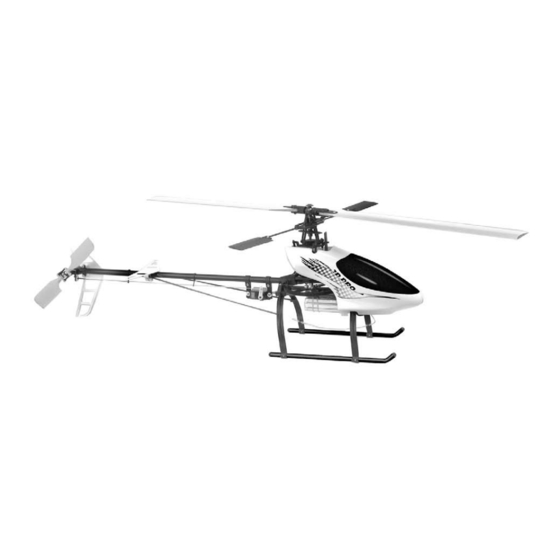

Hummingbird
Elite 3D Pro
This Super-Micro R/C helicopter has the most advanced capabilities and is considered
top-of-the-line. 120 degree eCCPM control, collective main and tail rotors, torque tube tail
drive and brushless motor ensure top performance.
MAX MAIN ROTOR RPM
RECOMMENDED MOTOR:
MAIN ROTOR DIAMETER:
LENGTH:
WEIGHT:
Century Helicopter Products

SPECIFICATIONS

Designed and Developed in USA
Copyright June 2005. All rights reserved. Revision 1.0
Century Helicopter Products
1740-C Junction Ave.
San Jose, CA 95112
Fax: (408) 451-1156
Web:www.centuryheli.com
Assembly Kit
Instruction
Manual
3000
HIMAX 4100
520mm
485mm
360-380g with electronics and battery

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hummingbird Elite 3D Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Century Helicopter Products Hummingbird Elite 3D Pro

Summary of Contents for Century Helicopter Products Hummingbird Elite 3D Pro

  • Page 1: Specifications

    MAIN ROTOR DIAMETER: 520mm LENGTH: 485mm WEIGHT: 360-380g with electronics and battery Century Helicopter Products Designed and Developed in USA Copyright June 2005. All rights reserved. Revision 1.0 Century Helicopter Products 1740-C Junction Ave. San Jose, CA 95112 Fax: (408) 451-1156...

  • Page 2: Table Of Contents

    Tail Rotor Assembly .............. 9 Attention! If you purchased your Hummingbird Elite 3D Pro with the Lightning Brushless Motor the motor bolts will not be mounted. See below for details. If you are using a motor other than the Lightning Brushless DO NOT ALLOW MAIN BLADES TO EXCEED 3000 RPM.

  • Page 3: Mast Tower Assembly

    Section 1: Mast Tower Assembly Bags Used: Swashplate Bearing #CNE213 CNE309, CNE310, CNE312, CNE216 Antirotation (Between bracket Bracket & tower) #CNE216 Mast Tower Assembly (1-1) 1) Place the Mast Tower CNE309 on top of the CNE312 Upper Frame Plate align until the Mast Tower to match the bolt pattern of the Upper Frame...

  • Page 4: Tail Boom & Drive Shaft Assembly Ii

    M2x2 Set Screw Section 4: Tail Drive Assembly (Continued) Tail Drive Shaft #CNE305 #CNE315 Bags Used: Bearing CNE308, CNE309, CNE312, CNE216 #CNE213 Tail Boom/Drive II (4-1, 4-2, 4-3) 9) Slide one of the CNE213 Bearing over the Tail Drive Shaft. 10) Open parts bag CNE305 Tail Drive Gear Set.

  • Page 5: Main Rotor Hub

    Section 6: Main Rotor Hub CNC Rotor Hub #CNE303 Bags Used: CNE303, CNE313 Main Rotor Head Assembly (6-1, 6-2) Get parts bag CNE303 CNC Rotor Hub and rotor hub collar and Part bag CNE313 Main Shaft, spacers and main shaft collar. Place not used here in a container to avoid losing them.

  • Page 6: Main Rotor Head Assembly

    Section 8: Main Rotor Head Assembly Rubber Large Black Bags Used: Dampener Washer #CNE201 CNE303, CNE313, CNE201, CNE302, CNE304, CNE207 #CNE201 Small Brass Main rotor head assembly (8-1, 8-2, 8-3, 8-4, 8-5) Washer 25) Place the two Rubber Dampeners in the circular openings of Jesus Pin #CNE201 #CNE201...

  • Page 7: Gear Train Assembly

    Rotor Hub Section 9: Main Gear Train Assembly Collar #CNE303 Bags Used: CNE313, CNE314, CNE319, CNE250 Main Shaft Collar Main rotor head assembly (9-1, 9-2, 9-3, 9-4, 9-5) #CNE313 Using the built Upper Main Frame and the built Rotor Head Assembly.

  • Page 8: Combining Major Assemblies

    Section 10: Combining Major Assemblies Tail Boom Brace Bracket #CNE310 Bags Used: Upper Frame CNE313, CNE301 Assembly M2x5 Machine Screw #CNE310 (2) Combining Major Assemblies (10-1, 10-2) 10-1 42) Install the Brass Washer from bag CNE313 onto the Main Shaft located in the Upper Frame Assembly.

  • Page 9: Tail Rotor Assembly

    Section 12: Tail Gearbox Assembly Bags Used: CNE318, CNE325, CNE321, CNE317, CNE324, CNE322 Tail gearbox assembly (12-1, 12-2, 12-3, 12-4) Open parts bag CNE318 Tail Output Shaft Assembly, CNE321 Tail Pitch Tail Gearbox Lever, Tail Pitch Slider and CNE325 Tail Gearbox.
  • Page 10 Your new equipment is warranted to the original purchaser against manufacturer defects in material and workmanship for 30 days from the date of purchase. During this period, Century Helicopter Products will repair or replace, at our discretion, any component that is found to be factory defective at no cost to the purchaser.
  • Page 11 Notes:...

  • Page 12: Optional Items

    Replacement & Option Parts CNE213 CNE207 CNE201 CNE216 CNE250 CNE209A Main Shaft Bearings Auto Rotation Hub & Gear Head Axle & Dampeners Antirotation Bracket Flybar Paddles Swashplate Links (3x6mm -2pc-) CNE213F Bottom Plate Flanged CNE305 CNE304 Bearing (Flanged CNE302 CNE303 CNE301 3x6mm -1pc-) Metal Flybar (2)
