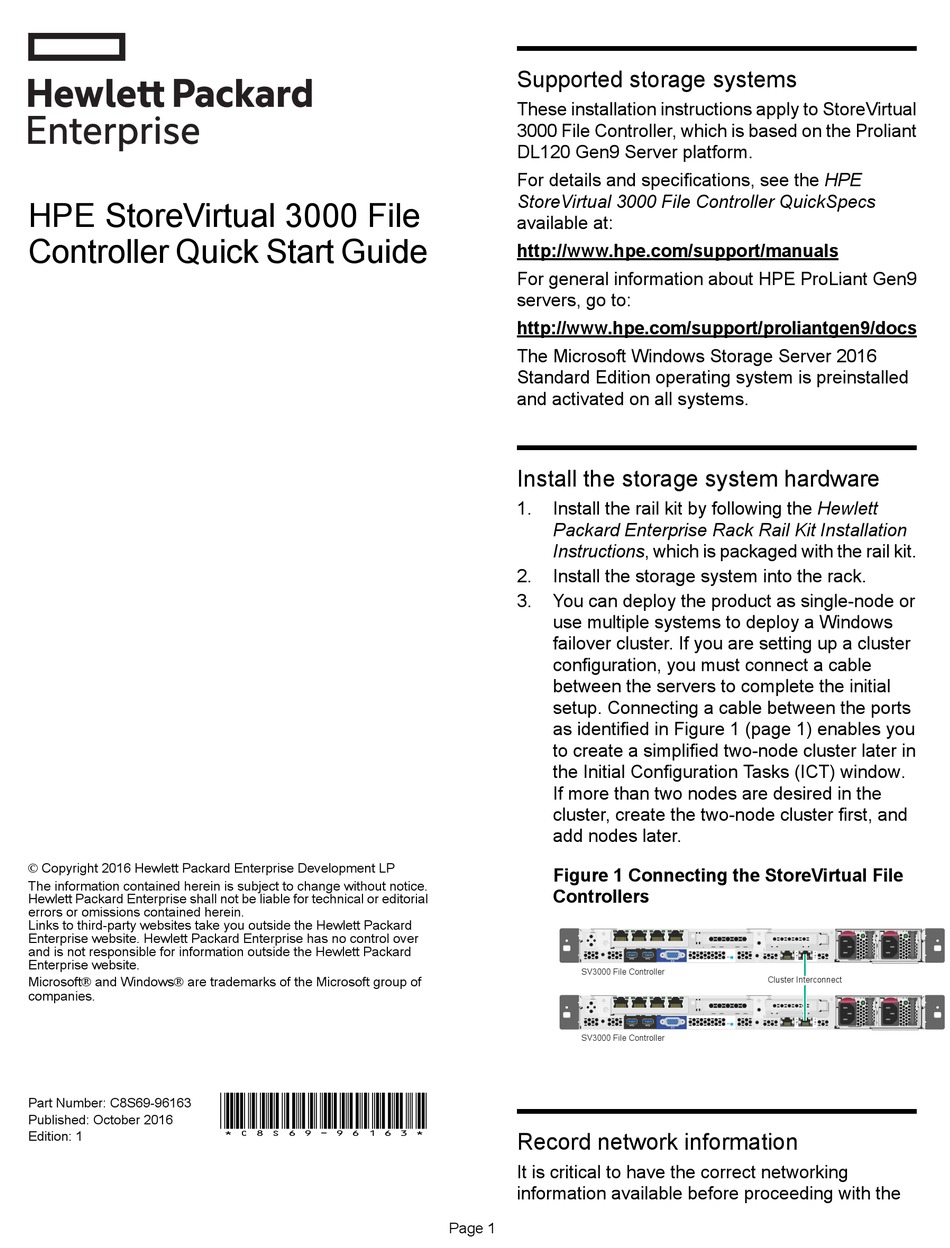

HPE StoreVirtual 3000 Quick Start Manual

HPE StoreVirtual 3000 File
Controller Quick Start Guide
© Copyright 2016 Hewlett Packard Enterprise Development LP
The information contained herein is subject to change without notice.
Hewlett Packard Enterprise shall not be liable for technical or editorial
errors or omissions contained herein.
Links to third-party websites take you outside the Hewlett Packard
Enterprise website. Hewlett Packard Enterprise has no control over
and is not responsible for information outside the Hewlett Packard
Enterprise website.
Microsoft® and Windows® are trademarks of the Microsoft group of
companies.
Part Number: C8S69-96163
Published: October 2016
Edition: 1
*C8S69-96163*

Supported storage systems

These installation instructions apply to StoreVirtual
3000 File Controller, which is based on the Proliant
DL120 Gen9 Server platform.
For details and specifications, see the HPE
StoreVirtual 3000 File Controller QuickSpecs
available at:
http://www.hpe.com/support/manuals
For general information about HPE ProLiant Gen9
servers, go to:
http://www.hpe.com/support/proliantgen9/docs
The Microsoft Windows Storage Server 2016
Standard Edition operating system is preinstalled
and activated on all systems.
Install the storage system hardware
1. Install the rail kit by following the Hewlett
Packard Enterprise Rack Rail Kit Installation
Instructions, which is packaged with the rail kit.
2. Install the storage system into the rack.
3. You can deploy the product as single-node or
use multiple systems to deploy a Windows
failover cluster. If you are setting up a cluster
configuration, you must connect a cable
between the servers to complete the initial
setup. Connecting a cable between the ports
as identified in Figure 1 (page 1) enables you
to create a simplified two-node cluster later in
the Initial Configuration Tasks (ICT) window.
If more than two nodes are desired in the
cluster, create the two-node cluster first, and
add nodes later.
Figure 1 Connecting the StoreVirtual File
Controllers
SV3000 File Controller
SV3000 File Controller
Record network information
It is critical to have the correct networking
information available before proceeding with the
Page 1
550W
UID 1 2
Cluster Interconnect
550W
UID 1 2
