Operating Instructions

Version 1.9.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EN2-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecom EN2-F

Summary of Contents for Ecom EN2-F

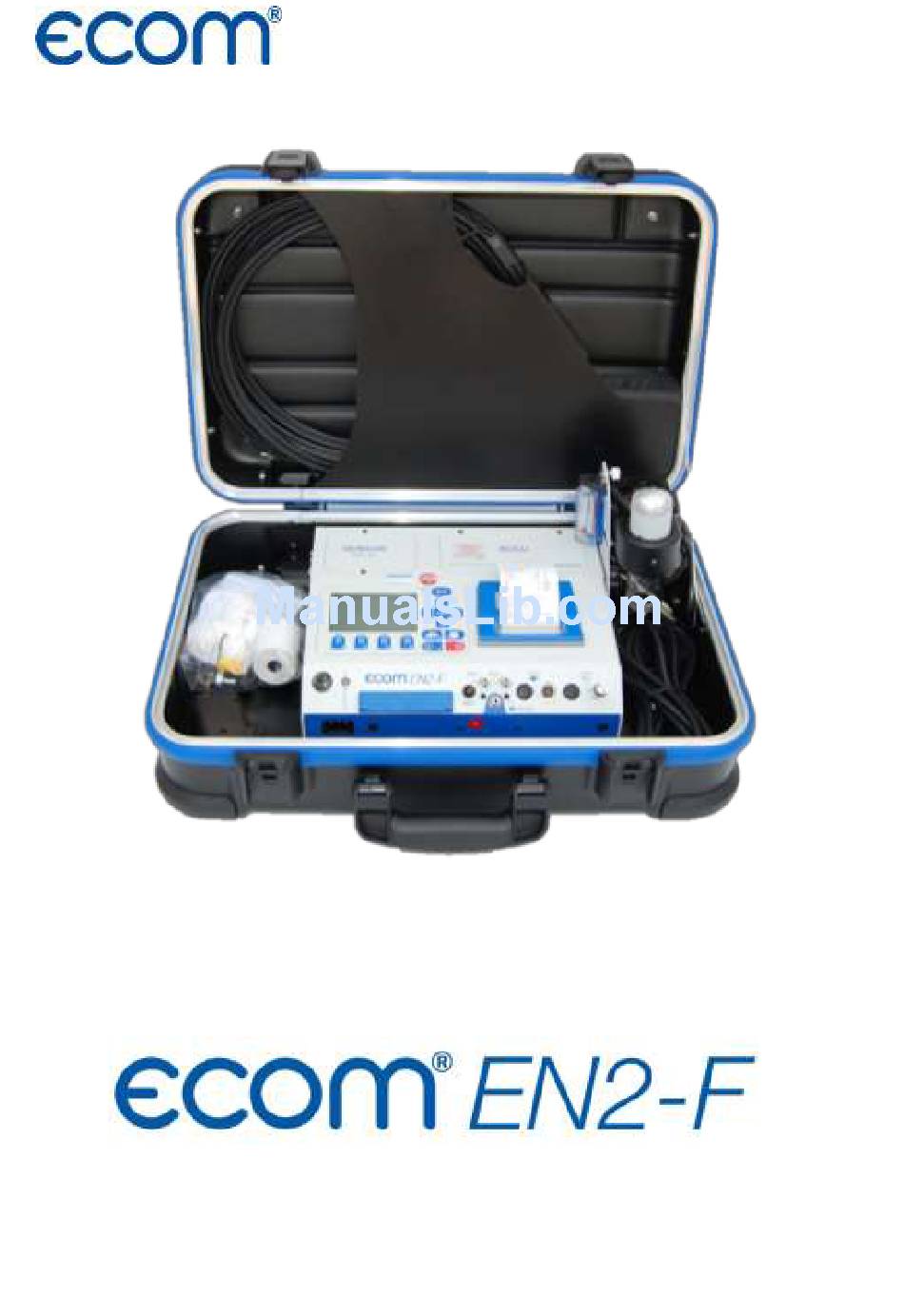

  • Page 1: Operating Instructions

    Operating Instructions Version 1.9.2...
  • Page 2 Page 2...
  • Page 3 Table of Contents Page EN2F Design & How It Works i. Important Tips 1. Instrument Design 2. Accessories 3. Remote display (ECOM-R) 4. Gas Cooler 5. Power Supply 6. Data Logging onto Memory Card Testing Emissions with the EN2F 7. Analyzer startup 7.1 Carrying case &...

  • Page 4: I. Important Tips

    Important Tips The ecom-EN2-F meets the requirements for CTM 030, CTM 034, and ASTM D6522. To control for thermal drift, start the analyzer and let it acclimate to ambient temperature for 15-30 minutes, then restart the analyzer before testing.
  • Page 5 i. Important Tips (continued) Fresh air opening Do not block fresh air opening for fresh air pump! Before begining with measurements, please set up condensation trap as follows: - pull knob out to unlock - swing the condensation trap a full 90deg up until it locks into place - Unblocking pin must be engaged before pump will start...

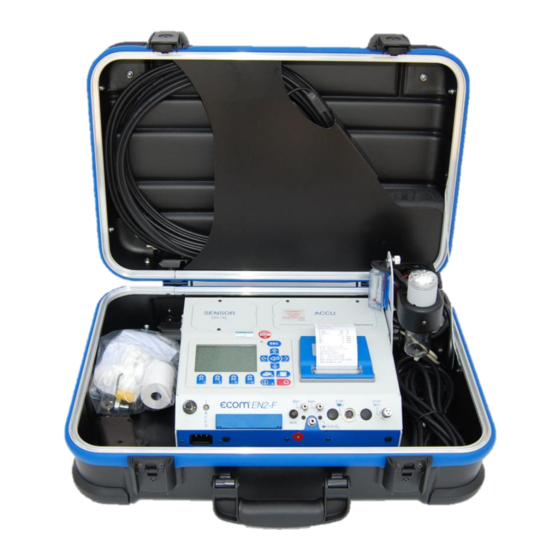

  • Page 6: Instrument Design

    1. Instrument Design Optical flow control Sensors com- partment Peltier cooler w/ con- Graphic Battery com- densate drain and display partment particulate filter Integral printer Bluetooth Slot for multi- Connection Connection air Antenna media card pressure temperature Charging Connection indicator Connection via USB light...

  • Page 7: Accessories

    Keyboard ESC key In the input mode, the keys are (quit/ used for numerical inputs escape menu) Enter key (confirm selection) Cursor keys (Up/Down/Right/ Left/Scroll) Save snapshot to internal memory Access printing menus (press F2 to quick print) F1: Standby – pump shuts off Info key ON / OFF F2: Quick print...

  • Page 8: Remote Display (Ecom-R)

    (wireless range is approx. 10 m) Connection with ECOM analyzer (the ecom-R connects with only 1 analyzer at a time) Setup Bluetooth Connection - Ensure there is only one instrument with Bluetooth near the ecom-R - Turn on the analyzer - Go to Adjustments Internal...
  • Page 9 Batteries 1.5 V AA (2) Unlocking Model with integrated air temperature sensor Air temperature sensor If there is no air temperature sensor connected at the ecom- EN2, then the air temperature sensor of the ecom-R supplies the measured values. Page 9...

  • Page 10: Gas Cooler

    4. Gas Cooler Peltier outlet element WARM Level COLD monitoring Gas inlet Condensate evacuation Exhaust gas with a temperature above the steam dew point (35 - 65 °C) is introduced into a long spiralling gas path with a surface coated metal body with good thermal conductivity. The gas radiates its heat to this metal body.

  • Page 11: Power Supply

    Used batteries can be brought to recycling stations or public waste disposal companies! The EN2-F is recommended to be powered by AC power when available. The analyzer can also be powered using the internal bat- tery for a while (6 V; 3.8 Ah). The battery should be recharged when the analyzer starts beeping or an alert message appears.
  • Page 12 6. Data Logging onto Memory Card (continued) Memory card must be 32MB to 2GB! To log data using the memory card, follow these steps: -insert the memory card – on the main menu a new option “Data processing” will appear -go to Data Processing –...

  • Page 13: Analyzer Startup

    7. Analyzer startup 7.1 Carrying case & cooler When opening the case, make sure to pull out and up on the two tabs on the front. After the case is opened, unlock the cooler by pulling out on the knob and swinging the cooler 90deg upward.

  • Page 14: Analyzer Startup

    : Check operation state of instrument (see Chapter 13) - Diagnostics : Only used with ECOM AK tool To perform measurements, select Gas analysis and confirm with <Enter>. The instruments starts a 1- minute auto-zero phase and the fuel types selection list is displayed. The following fuel types are...

  • Page 15: Gas Analysis 8.1. Gas Analysis Display Screen

    8. Gas Analysis 8.1. Gas analysis display screen After the 1-minute auto-zero phase, the instrument switches over to the measurement mode. The gas measurement values can be viewed on 4 display pages. Press up/down to scroll between the pages. 13.1 T.Gas °C Edit line...

  • Page 16: Inserting The Probe

    8.1. Gas analysis display screen (continued) Pressing <F4> goes to “Edit” mode which allows the user to change the line items on the display screen. In “Edit” mode, the values on the screen can be changed to what the user wants to see. To change these values, press F4 and you should see the 1 line start blinking: - select line you would like to change with Up/Down –...

  • Page 17: Calculations: Co2, Efficiency, Losses, Excess Air, Dew Point

    8.2 Inserting the probe (continued) Perform the measurement in the core stream of the exhaust gas channel (probe placed in the hottest gas temperature area). A trend indication for T.Gas lets you know whether the temperature is in- creasing or decreasing so that you can find the core stream. As long as the display shows an up arrow, it means the probe tip is moving towards the core stream center.

  • Page 18: Printing

    If the measurement values are stable, press the Save Button (num- ber 6) to transfer the values in the internal memory or F2 to print. 8.5. Printing Press F2 to print the values on the screen. To use the Printer button (number 6 on the keypad), you have to press the Save button (number 7 on the keypad) before pressing Measurement stored in the Printer button.

  • Page 19: Draft/Pressure

    Now go to Adjustments -> Units and press up/down or right/left to change the unit to %O2 undiluted. Your units have been changed and you can return to Gas Analysis to view the corrected readings. 9. Draft/Pressure A trend indication for the draft/pressure conditions in the exhaust channel can be viewed during the gas analysis.

  • Page 20: Averaging Tests

    -Select the line „1st. Soot meas.“. -Press <Enter> to start the measurement. The analyzer will pull 1.63 liters of sample gas. -Release the filter paper from the probe slot. 10. Soot test (continued) -Compare the greyness to your soot test chart (0-9). -Input the result using the numerical keys and press <Enter>.

  • Page 21: Adjustments

    8. Press ESC, select Mean Value, and press F1 to quit mean value calculation 12. Adjustments Additionally to those ecom-EN2-F functions described previously, various adjustments can be made in the instrument. From the main menu, select the sub-menu "Adjustments" and con- firm with <Enter>.
  • Page 22 12. Adjustments (continued) - ppm (undiluted) = volume concentration (parts per million) w/ O2 correction - mg/m (undiluted) = mass concentration per volume unit w/ O2 correction Undiluted: Conversion of the gas concentration on selected reference oxygen: - mg/kWh and mg/MJ are always calculated on 0% O basis - Conversion formula 21 - O...
  • Page 23 12. Adjustments (continued) Internal Print contrast Printout contrast (0..9) Displ. contrast (press <Enter> to access input menu): - Printer contraste adjustment Key beep Language: English Display contrast  Select:  (press <Enter> to access input menu): F1 Hotkey - Display contraste adjustment with cursor keys F4 Hotkey Eff.
  • Page 24 12. Adjustments (continued) USB (selection after pressing <Enter>): - Press up/down to change baud rate - Press right/left to change protocol Bluetooth (selection after pressing <Enter>): - Press up/down to change baud rate - Press right/left to change protocol With first use of the Bluetooth connection to PC type in password „0000“...

  • Page 25: Control

    13. Control The electrochemical sensors for gas analysis are submitted to a wearing process and do age. They alter their output values along the time depending on the gas concentration, the exposure time and the soiling grade of the sampled gas. The programme monitors the sen- sors and corrects drifts.

  • Page 26: Data Processing

    14. Data Processing In order for this menu to appear, a memory card (32MB to 2GB) must be Data processing inserted into the analyzer. Select View Note: This section explains how to save data snapshots to internal Memory (M) memory. For data logging onto a Format memory card, see “6.

  • Page 27: Delta-T Measurement (Option)

    PC programme (procedure similar to chapter „Load data“). 15. Delta-T Measurement (Option) With the ecom-EN2-F a difference temperature measurement is pos- sible. For measurements at pipings (e.g water-in and water-out of heating systems), special temperature sensors are needed, available from your authorised rbr agency.

  • Page 28: Maintenance Tips

    To secure the accuracy of your measuring instrument we recom- mend the annual check by an authorized ecom partner. In the case of strong demand (e.g. permanent several hours of measurement per day, rough conditions etc.) shorter intervals between checks should be selected - please contact your ecom partner.
  • Page 29 Prefilter The prefilter made of high-grade steel is within the condensate con- tainer. It should be cleaned when contamination (with warm water and dry). Unscrew condensate container and prefilter. Assemble after cleaning again in reverse order. Prefilter Sensors The sensors get calibrated with the reference gas fresh air by each switch-on.
  • Page 30 Probe and tubing Depending on the frequency of use, probe and tubing should be regularly cleaned in order to release particle deposits and to prevent early wearing due to corrosion. - Release the connections at the instrument and at the probe grip to free the tubing.

  • Page 31: Technical Data

    15. Technical Data Parameter Range Principle 0 ... 21 vol-% Electrochemical 0 ... 4000 ppm Electrochemical NO (option) 0 ... 5000 ppm Electrochemical (option) 0 ... 500 ppm Electrochemical (option) 0 ... 5000 ppm Electrochemical CO% (option) 4000 ... 63000 ppm Electrochemical 0 ...
  • Page 32 - T-Air sensor is broken - Thermocouple is broken - Cable is defective Note: The error messages can be ignored at the EN2-F by pressing „Enter“. Calculations that depents on these temperatures are not implemented. Possible reasons could be: The instrument shows wrong or...
  • Page 33 My instrument cannot be - Please check the mains cable switched on! - Please check the fuse - Please check mains connection (Plug socket switched on?) - Please load the accumulator min. 8 hours (Accumulator could be over-discharged) My instrument does not print! Please check whether the printer paper is correctly inserted.

  • Page 34: Calibration Procedure

    19. Calibration Procedure For best results, the calibration gas concentration should be as close to the expected levels of emissions as possible. Because each sensor is linear through a nominal range, one calibration gas concentration can be used for a reasonably wide range of emission levels.
  • Page 35 19. Calibration Procedure (continued) You must check for air leaks before calibrating. Apply a gas with 0% O2 to check for air leaks (ECOM service dept. uses NO gas balanced in N2). Flow calibration gas for 3 minutes. Check that O2 reading is 0.0%.

  • Page 36: Memory Card Data

    20. Memory Card Data Description of data record ecom-EN2-F with Multi Media Card Format data logger records: J2KDL-xx.csv (separation mark between values = comma) Format punctual measurements: J2KDV.txt (separation mark between values = comma) Column Description Remark / Example Date DD.MM.YYYY (also US-Version)
  • Page 37 0 – 1000,00 dP (velocity) in Pa 300 – 1100 Air pressure in hPa Unit 2 0=ppm; 1=mg/m3; 2=mg/kWh; 3=mg/MJ; 4=ppmN; 5=mg/m3; 6=--- CO (Unit 2) NO (Unit 2) NO2 (Unit 2) NOx (Unit 2) SO2 (Unit 2) Analogue input 1 Analogue input 2 Sensor 7 in ppm Meas.
  • Page 38 Calibration log Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Page 38...
  • Page 39 Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Date: Cal gas concentration Sensor reponse after 5 min Page 39...
  • Page 40 UGGED ELIABLE CCURATE ECOM A MERICA 1628 O AKBROOK RIVE , GA 30507 AINESVILLE (877) 326-6411 OLL FREE (770) 532-3280 HONE (770) 532-3620 ecom.info@ecomusa.com w w w . e c o m u s a . c o m Page 40...
