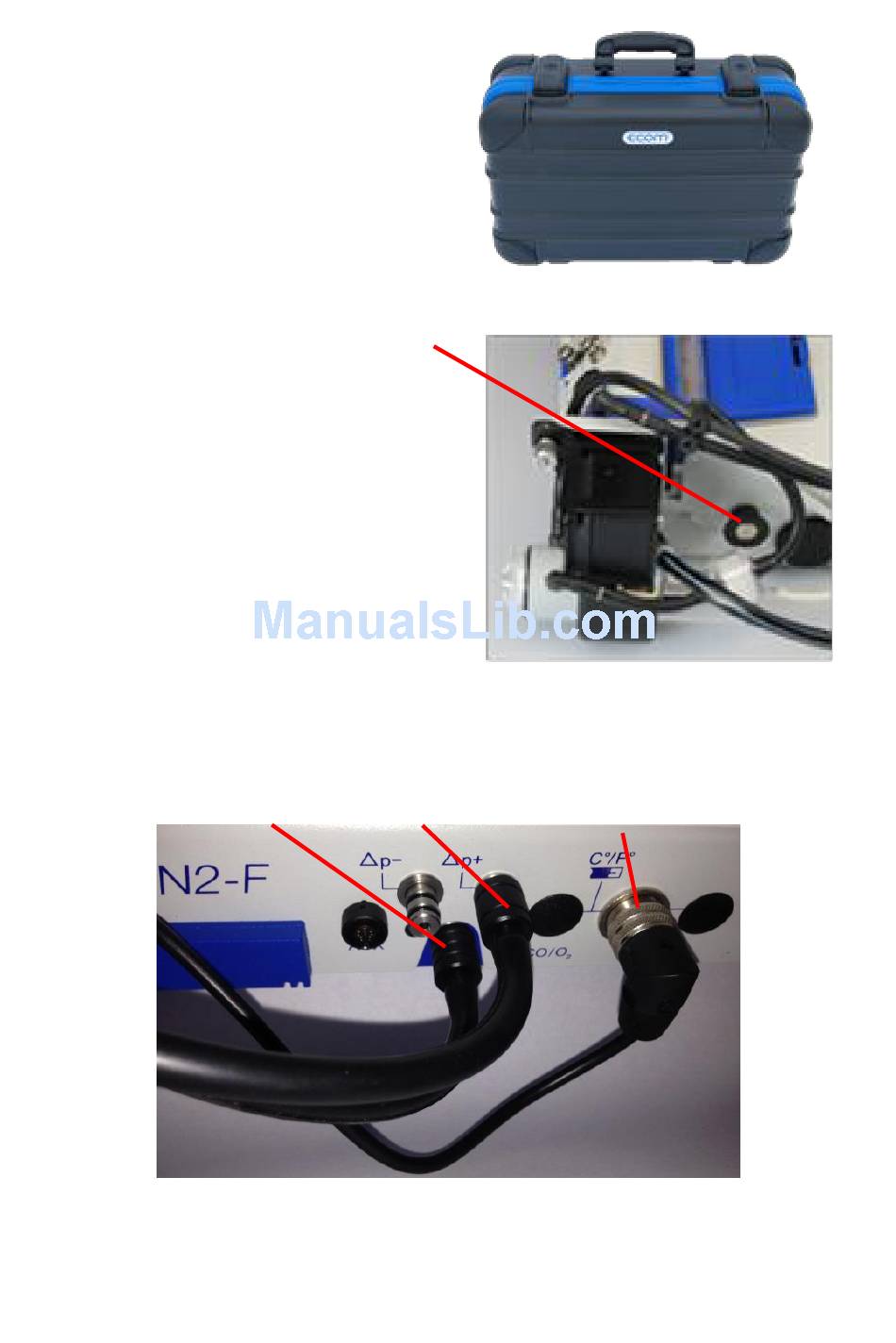

Analyzer Start-up
Carrying case & cooler
When opening the case, make
sure to pull out and up on the
two tabs on the front.
Unlock the cooler by pulling out on
the knob and swinging the cooler
90deg upward. The cooler must
be upright and locked into place
before the pump engages.
Sample line & probe
Connect gas sample line, pressure line, and thermocouple as pictured:
The fittings are sized so that you cannot switch the gas and pressure lines.
Page 5
