CVU155N Series – 220V 60Hz
Installation, Operation and Service Manual
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

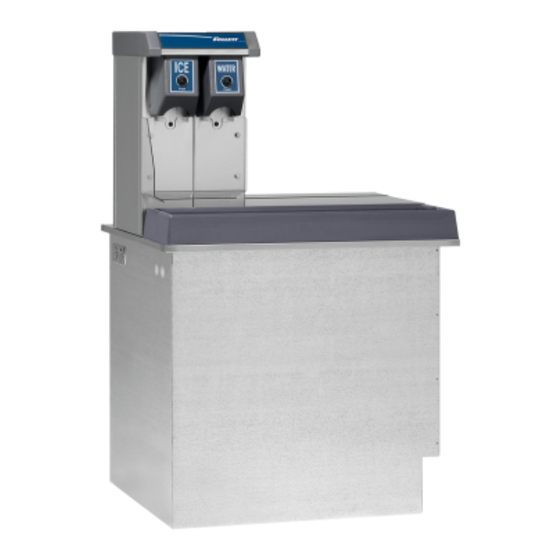

Ice and Water Dispensers
Service numbers above B50000
00120527R04
Advertisement
Table of Contents
Related Manuals for Follett CVU155N Series
Summary of Contents for Follett CVU155N Series
- Page 1 CVU155N Series – 220V 60Hz Ice and Water Dispensers Installation, Operation and Service Manual Order parts online www.follettice.com Service numbers above B50000 Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Toll free (877) 612-5086 •...
-
Page 2: Table Of Contents
Table of contents Welcome to Follett Corporation Important cautions Specifications Installation Installing dispenser in counter Field wiring diagrams Installing optional ice machine Operation How the dispenser works Cleaning Service Dispense chute cover removal Auger motor assembly removal Gate assembly removal... -
Page 3: Welcome To Follett Corporation
Before you begin After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim, if necessary. -
Page 4: Specifications
Standard electrical – 220V, 60Hz, 1 phase. Model Ice machine Dispenser number amperage amperage CVU155N series 5.0 amps ea 2.0 amps Plumbing Dispenser 3/4" PVC pipe nipple for bin drain 3/4" PVC pipe nipple for drain pan drain 3/8"... - Page 5 Dimensions and clearances Required clearances 1295 mm (51") minimum above counter for installation if dispenser will be dropped into counter 915 mm (36") minimum above counter for all units after installation for auger cleaning and servicing 305 mm (12") minimum on side opposite ice chute for service 305 mm (12") minimum on ice chute side if ice transport tube enters this side 305 mm (12") minimum between dispenser side(s) and optional ice machine(s) 696mm...
-
Page 6: Installation
Installation Installing dispenser in counter Note: All dispensers must be supported from below with supplied 153 – 229 mm (6" – 9") adjustable leg accessory, or equivalent. Do not hang dispenser on flange. All dispensers must be installed level in both directions to ensure proper operation. Check that dispenser location meets all requirements in this manual and cut counter as shown. -
Page 7: Field Wiring Diagrams
2. For manual load units, remove front drain pan or rear lid and fill storage area with approved ice. Note: Follett manual load dispensers can accommodate most cube/cubelet ices up to 1" square, or Follett compressed nugget ice. Crushed, flake, bagged, nugget or congealed ice cannot be used. Use of these ices can jam dispenser and void warranty. -
Page 8: Operation
In automatic load units, ice is manufactured in either one or two Follett RIDE model ice machines. These ice machines may be located up to 6 m (20 ft) away from the dispenser. Extruded ice is transported through a tube and pushed to the storage compartment of the dispenser. - Page 9 Recommended cleaning prior to start up Cleaning ice storage area before use 1. Refer to disassembly instructions (see Service section) and remove dispense wheel from ice storage area. 2. Remove auger, auger tube and dispense mechanism. 3. Wipe all components and ice storage area with cleaning Solution A. 4.
-
Page 10: Service
Service Fig. 1 Dispense chute cover removal 1. Remove top cover. Front View 2. Push chute cover up vertically to slip off right-hand unit holding tab. 3. After clearing tab, pull chute cover forward to remove. top cover chute Dispense mechanism assembly removal cover 1. - Page 11 Fig. 3 Front View auger motor (side view) auger dispense wheel auger tube stationary agitator rotating agitator wheel motor plain water auger bearing plate hook-up baffle plate chilled water coil wheel motor mounting plate...
-
Page 12: Wiring Diagrams
Wiring diagrams WATER SWITCH WATER SOLENOID AUGER MOTOR COUNTERCLOCKWISE ROTATION INterlock RELAY DISPENSE RELAY PL2-1 PL2-2 POWER PL2-3 WHEEL COUNTERCLOCKWISE ROTATION AUTOFILL PL3-2 PL3-3 AUTOFILL R2 PL3-1 220 Volts 24 Volts DISPENSE SWITCH DISPENSE RELAY right-hand interlock relay dispenser white white white TOP LID... -
Page 13: Troubleshooting
3. Check that drain pan, rear lid and top are on securely. If ajar, dispenser will not operate. When the top is off, auger does not operate, even though the solenoids do. 4. Check that all drains are clear. Note: For units equipped with Follett Chewblet ice machine, see Ice machine Operation and Service Manual for service and troubleshooting information. Possible cause... -
Page 14: Replacement Parts
Front View Top View right hand (RH) tower unit with right hand (RH) tower (push button dispensing) Reference # Description Part # Label, “Follett” 502438 Top cover (includes label and magnet) 502905 Drain pan (includes magnet) 502903 Grille, drain pan 502450... -
Page 15: Dispense Assembly
Dispense assembly Side View (right hand (RH) unit shown) Top View Reference # Description Part # Gate, dispense 502455 Linkage pin, gate/solenoid 502456 Pin, quick release, 141 mm, dispense gate 502102 Solenoid (includes linkage pin) 00126607 Dispense mechanism assembly, right hand unit 502458 Not shown Dispense mechanism assembly, left hand unit... - Page 16 Hopper Side View left-hand (LH) unit shown Reference # Description Part # Auger, LH unit (black, stamped with “1”) 502491 Not shown Auger, RH unit (gray, stamped with “2”) 502492 Plate, auger bearing 501696 Not shown Tube, auger, right hand unit 502487 Not shown Tube, auger, left hand unit...
- Page 17 Auger motor Top View Side View Reference # Description Part # Auger motor/drive assembly, vertical (includes all items below) 502893 Motor, vertical auger (includes gearbox and capacitor) 502889 Chain, auger drive #35, 40p 502477 Sprocket 35#, 22T 5/8 bore 502478 Sprocket 35#, 12T 5/8 bore 502479 Drive shaft...
-
Page 18: Electrical Components
Electrical components 4 3 7 Reference # Description Part # Transformer, 24V 502885 Relay, dispense 501826 Relay, auto fill 501826 Timer, auto fill (automatic fill units) 502471 Strip, terminal 502472 Tube, water dispense, stainless steel 502356 Bracket, water solenoid 01111228 Fitting, compression to NPT 01111434 Valve, solenoid, water, complete assembly... - Page 19 Registro de Garantía y Evaluación del Equipo Gracias por haber elegido este producto Follett ® . Esperamos que nuestro equipo cumpla o supere sus expectativas porque es nuestro objetivo ofrecer productos y servicios de gran valor que se ganen su plena confianza.
- Page 20 Registrazione della garanzia e valutazione dell’attrezzatura Grazie per aver acquistato un dispositivo Follett®. Ci auguriamo che il nostro prodotto soddisfi o superi le Sue aspettative, in quanto il nostro obiettivo è quello di offrire prodotti e servizi di alta qualità che soddisfino pienamente le vostre esigenze! La preghiamo di leggere attentamente il manuale per l’installazione e per l’uso allegato.
- Page 21 Garantiregistrering och utvärdering av utrustning Tack för att du köpt utrustning från Follett ® . Vi hoppas att du ska tycka att den uppfyller eller överträffar dina förväntningar, då vårt mål är att leverera produkter och tjänster av högt värde som gör dig helt nöjd! Studera medföljande installations- och bruksanvisning.
- Page 22 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett ® equipment. We hope you find that our equipment meets or exceeds your expectations, as our goal is to deliver high value products and services that earn your complete satisfaction! Please review the enclosed installation and operations manual.
- Page 24 RIDE is a trademark of Follett LLC. Chewblet is a registered trademark of Follett LLC, registered in the US. 801 Church Lane • Easton, PA 18040, USA 00120527R04 Toll free (877) 612-5086 • +1 (610) 252-7301 © Follett LLC 5/17...
