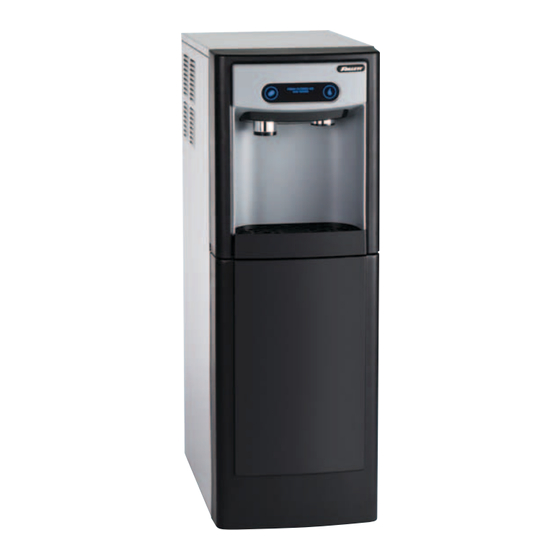

Countertop and Freestanding Ice and Water
Dispenser with Chewblet
Ice Icemaker
®
7CI100A, 7FS100A
Installation, Operation and Service Manual
Serial numbers above D25455
7CI100A
7FS100A
Following installation, please forward this manual
to the appropriate operations person.
801 Church Lane • Easton, PA 18040, USA
Order parts online:
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
www.follettice.com
00951640R03
Advertisement
Table of Contents
Related Manuals for Follett 7CI100A
Summary of Contents for Follett 7CI100A
- Page 1 Countertop and Freestanding Ice and Water Dispenser with Chewblet Ice Icemaker ® 7CI100A, 7FS100A Installation, Operation and Service Manual Serial numbers above D25455 7CI100A 7FS100A Following installation, please forward this manual to the appropriate operations person. 801 Church Lane • Easton, PA 18040, USA Order parts online: Toll free (877) 612-5086 •...
-
Page 2: Table Of Contents
Base Stand ................30 Dispenser and Icemaker 7CI100A/7FS100A... -
Page 3: Welcome
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage is found, immediately notify the shipper and contact Follett Corporation so that we can help in the filing of a claim, if necessary. If needed, the serial number of your dispenser can be found by removing the drip tray (1) and locating the serial number label (2). -
Page 4: Specifications
17.53" (450 mm) 41.93" (1065 mm) Unit Shipping Weight 90 lb (41 kg) 120 lb (54.4 kg) Ambient Information CAUTION! The 7CI100A and 7FS100A are for indoor use only. Maximum* Minimum* Air Temperature 100 F (38 C) 50 F (10 C) †... -
Page 5: Detailed Drawing
14.55" (370 mm) NEMA 5-15 right angle 17.54" 17.54" (446 mm) (446 mm) 6.72" 6.79" (171 mm) (172 mm) power cord 2.40" 2.98" (61 mm) (76 mm) 1/4" MPT water inlet 24.39" (620 mm) 22.05" (560 mm) Dispenser and Icemaker 7CI100A/7FS100A... -
Page 6: Installation
3. Connect water line. Recommended routing (Fig. 2) allows easy access Fig. 2 to water for cleaning and sanitizing procedure. 4. Connect power supply. 3' (76 mm) 5. Sanitize the dispenser prior to use (see Cleaning and Sanitizing on page 13). 1/4" MPT Dispenser and Icemaker 7CI100A/7FS100A... - Page 7 2. Remove drip tray and drill 11/32" hole through drain nipple (Fig. 4). Fig. 4 3. Connect supplied drain tubing to drain tray nipple with supplied hose clamp. Run drain tubing to floor drain. 4. Return tray to original position. Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 8: Freestanding Installation
8 ft. (2.4 m) cord and plug. § Water: supply line (with shut-off valve) connects to the dispenser's 1/4" MPT inlet. NOTICE! If using Leg Accessory with base stand, complete those steps before proceeding. Dispenser and Icemaker 7CI100A/7FS100A... - Page 9 5. Connect water line. Recommended routing (Fig. 8) allows easy access Fig. 8 to water for cleaning and sanitizing procedure. 6. Connect power supply. 3' (76 mm) Sanitize the dispenser prior to use (see Cleaning and Sanitizing on page 13). 1/4" MPT Dispenser and Icemaker 7CI100A/7FS100A...
- Page 10 1. If installing optional Drip Tray Drain Kit, remove drip tray and drill 11/32" hole through drain nipple (Fig. 11). 2. Connect supplied drain tubing to drain tray nipple with supplied hose clamp. Run drain tubing to floor drain. 3. Return tray to original position. Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 11: Maintenance/Cleaning Mode
5. Remove and set aside the front panel (Fig. 13.4) - do not disengage the plug on the back of the User Interface or the tubing at the water dispenser chute (if so equipped). Dispenser and Icemaker 7CI100A/7FS100A... -
Page 12: Filter Display Indicator Activation
Filter Display Indicator Activation ––––––––––––––––––––––––––––––––––––– Fig. 14 If you purchased your dispenser with a Follett filter, the filter display indicator activation has been preset at the factory. If you are using an “after market filter,” an adjustment may be made to activate the “Fresh Filtered Ice &... -
Page 13: Cleaning And Sanitizing
Place a bucket under the dispense chute and remove cap. Caution: Some sanitizing solution will remain and drain out when cap is removed. Reposition cap on bin lid spout. 8. Reinstall front panel, ice dispense chute, and drip tray. 9. Press and hold maintenance/clean switch to exit Maintenance Mode. Dispenser and Icemaker 7CI100A/7FS100A... -
Page 14: Service
Internal leak in dispenser. High amps Auger gearmotor has exceeded 0.55A. Service 8000 hour bushing check (call Follett technical service group at (877) 612-5086 or +1 (610) 252-7301). Maintenance Yellow Enter Maintenance Mode by pressing and holding maintenance/clean switch for 5 seconds. -
Page 15: Water Feed Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Water Feed Schematic Evaporator Float Water Chute (optional) Water Solenoid Valve Filter (optional) (optional) Water Solenoid Valve Dispenser and Icemaker 7CI100A/7FS100A... -
Page 16: Bin Melt Water/Evaporator Feed/Clean Out System Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Melt Water/Evaporator Feed/Clean Out System Schematic Storage Bin Vent System Schematic Storage Bin Vent Tube Reservoir Tube Dispenser and Icemaker 7CI100A/7FS100A... -
Page 17: Refrigeration Schematic
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Refrigeration Schematic CONDENSER FILTER-DRIER CAP TUBE COMPRESSOR EVAPORATOR ACCUMULATOR LOW PRESSURE LIQUID HIGH PRESSURE VAPOR HIGH PRESSURE LIQUID LOW PRESSURE VAPOR Dispenser and Icemaker 7CI100A/7FS100A... -
Page 18: Condenser Fan Motor Removal
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Condenser Fan Motor Removal Dispenser and Icemaker 7CI100A/7FS100A... -
Page 19: User Interface Display Identification
Service - 8000 hr Call Follett Technical Service Group bushing check at (877) 612-5086 or +1 (610) 252- 7301. The flashing wrench indicates that the 8000 hr bushing check is required. - Page 20 Procedure High amps Contact Follett technical service group at (877) 612- 5086 or +1 (610) 252-7301. Internal leak in dispenser Locate leak and repair - Press reset on control board. Contact Follett if icemaker is leaking. Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 21: Electrical Wiring Diagram
Service –––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Electrical Wiring Diagram Dispenser and Icemaker 7CI100A/7FS100A... -
Page 22: Parts
Parts ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Exterior Dispenser and Icemaker 7CI100A/7FS100A... - Page 23 Panel, Top 00957654 Panel, Rear 00957662 Not Shown Cord, 115 VAC 00958058 Not Shown Packaging for Returns, Dispenser 00957993 Not Shown Fitting, Elbow - 1/4" FPT x 1/4" Tube 00974261 Not Shown Drip Tray Drain Kit 00956375 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 24: Interior
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Interior Dispenser and Icemaker 7CI100A/7FS100A... - Page 25 Valve, Failsafe Solenoid 00957738 Compressor with Mounting Hardware 00958009 Condenser 00958017 Condenser Fan and Cord 00958025 Control Board with Stand-offs 00958033 Capacitor, Gearmotor 00958041 Sensor, Retainer Hardware Kit 00958066 Relay and Overload 00958090 Refrigeration, Piping Assy 00958132 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 26: Bin Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Bin Assembly Dispenser and Icemaker 7CI100A/7FS100A... - Page 27 00957761 Lid, Bin Assy 00957779 Bin, Assy 00957787 Auger, Dispense 00957795 Motor, Dispense 00957803 Cap and Insulation, Bin 00957936 Not Shown For serial numbers D17619 and below: Bin Cap 00931519 Ice Chute 00927210 Chute Adapter 00926550 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 28: Evaporator Assembly
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Evaporator Assembly Dispenser and Icemaker 7CI100A/7FS100A... - Page 29 Housing, Bushing with Insulation 00957886 Hardware kit, Gearmotor 00957894 Reservoir and Float Complete Assy 00957902 Lid, Reservoir with Insulation and O-Ring 00957910 Float Valve 00957928 “T” Fitting - 1/4" 502923 Tubing - 1/4" (sold in 12" increments) 502079 Dispenser and Icemaker 7CI100A/7FS100A...
-
Page 30: Base Stand
Parts –––––––––––––––––––––––––––––––––––––––––––––––––––––– (continued) Base Stand Dispenser and Icemaker 7CI100A/7FS100A... - Page 31 Not Shown 6" Legs for base stand, set of 4 00956318 Not Shown 4" Legs for countertop dispenser, set of 4 00956300 Not Shown Kit, add water option 00957944 Not Shown Kit, delete water option 00957951 Dispenser and Icemaker 7CI100A/7FS100A...
- Page 32 SafeCLEAN and SensorSAFE are trademarks of Follett Corporation. Chewblet and Follett are registered trademarks, and Horizon is a trademark of Follett Corporation, registered in US. 801 Church Lane • Easton, PA 18040, USA 00951640R03 Toll free (877) 612-5086 • +1 (610) 252-7301 08/11 www.follettice.com...
