Foam sensor for Rotavapor
Installation Guide
This Installation Guide is part of the Rotavapor
„Fitting a foam sensor". This Installation Guide can be downloaded from www.buchi.com in
English, German, French, Italian, Spanish, Chinese and Japanese. The Russian version can be
obtained from BUCHI Russia, e-mail: russia@buchi.com.
1. Scope of delivery
Product

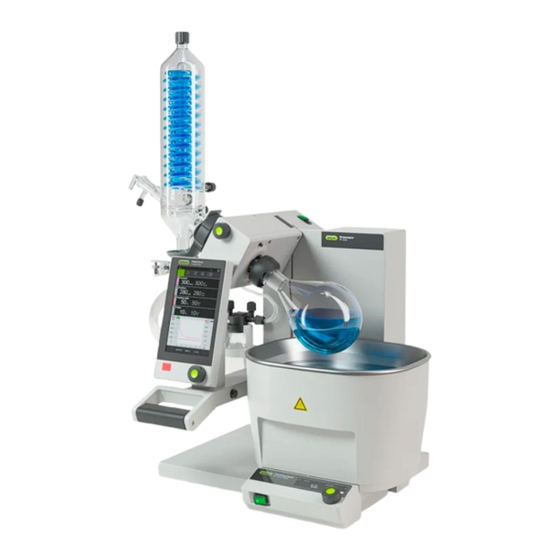

Foam sensor for Rotavapor® R-300
2. Description
The foam sensor measures foam formation in the evaporating flask and emits a
signal if the foam reaches the foam sensor. The foam is reduced by a short ventilation
burst.
1
2
3
4
7
6

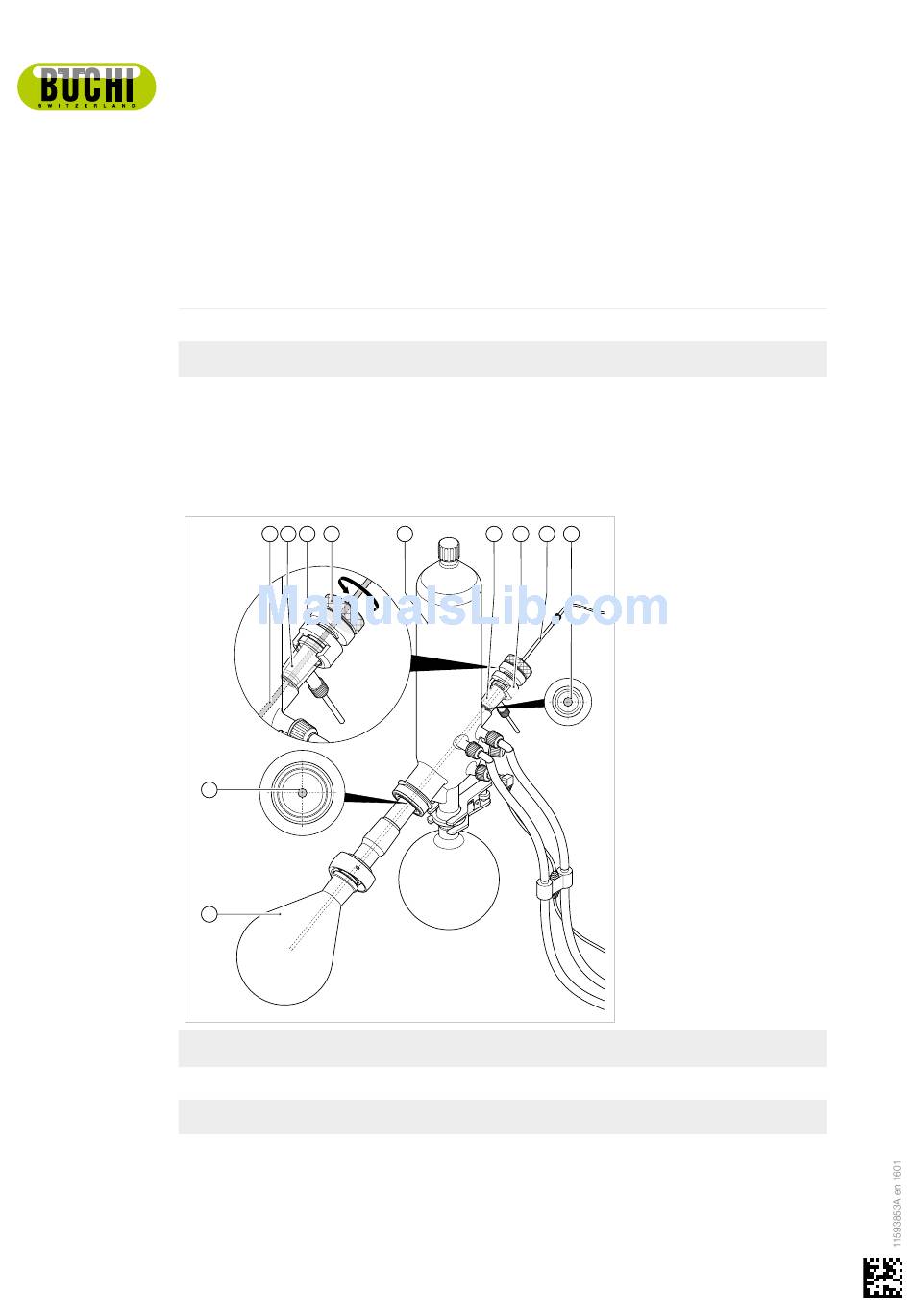

Foam sensor
Holder for foam sensor
Securing nut
Clamp screw
R-300 Operation Manual, chapter 5.11
®
5
2
3
1
7
Cooling condenser
Evaporating flask
Foam sensor centrally positioned
R-300
®
Article number
11061167
