Buchi R-80 Replacement Manual

Replacement Guide
Rotary drive arm R-80
Unlock more insights and guidance through our media re-
sources:
www.buchi.com/r-80/service
NOTE
Reading and following the instructions in this doc-
ument does not replace reading and following the
instructions in the operation manual.
4 This operation must be performed by qualified,
authorized and trained technicians, consistent
with the local applicable regulations.
4 Only carry out the service described in this
section.
4 Use only genuine BUCHI spare parts in order
to ensure correct operation and preserve the
warranty.
4 Carry out the service described in this section
to extend the lifetime of the instrument.
Rotary drive arm R-80
Rotary drive arm R-80, complete
Tools
Torx size 10
Torx size 20
Slotted screwdriver (Size 2)

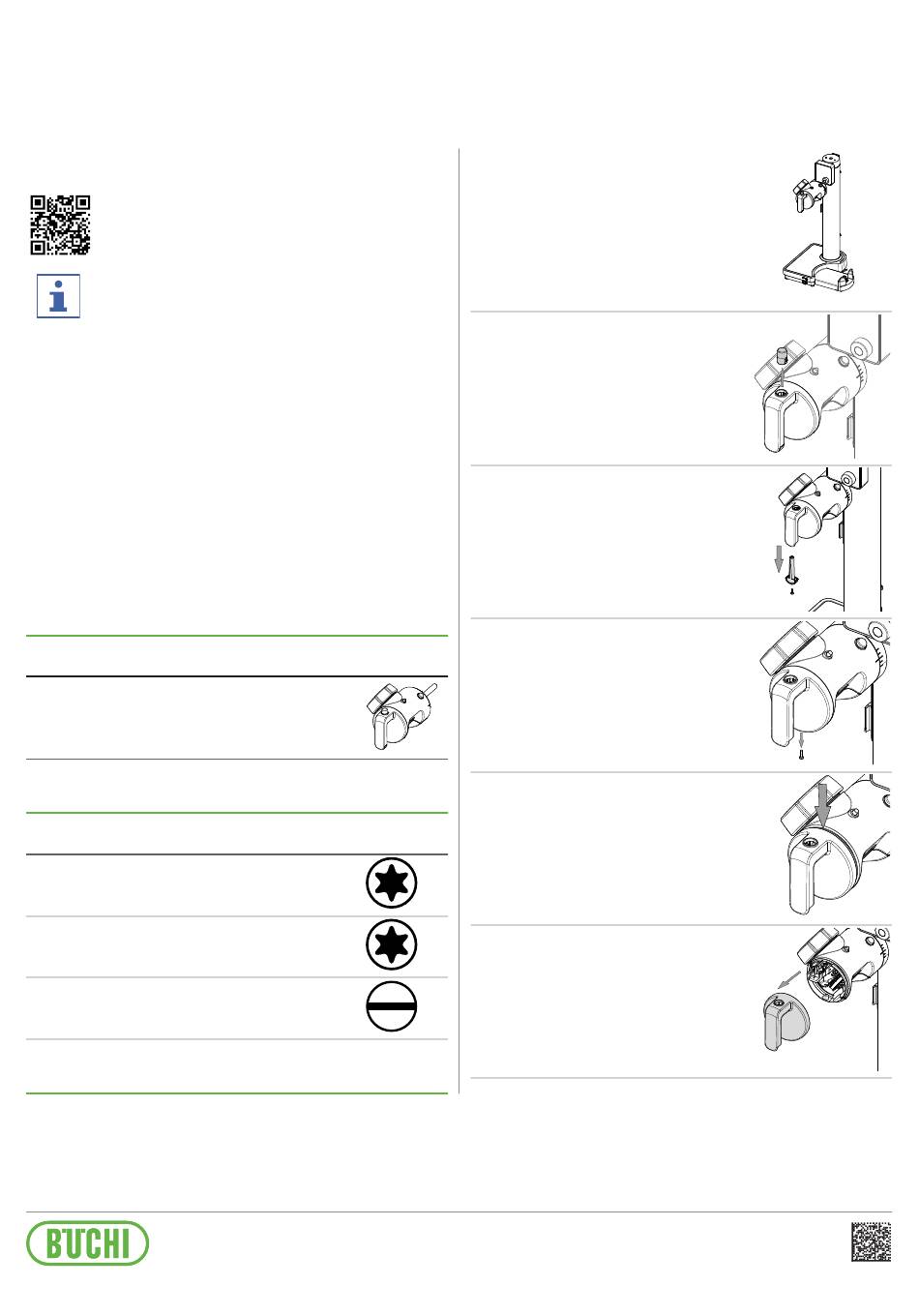

Replacing the rotary drive arm
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: quality@buchi.com
Order no. Image
11080630
Order no. Image
none
none
none
Precondition:
R Instrument is disconnected from
the main supply.
u Remove all connections.
u Remove all accessories.
u Remove all glass parts.
u Remove the heating bath.
u Remove the height adjustment but-
ton by pulling it firmly out of the
height adjustment handle.
Remove the screw.
u
Remove the height adjustment
u
handle cover plug.
u Remove the screw.
Insert a flat screwdriver on top of
u
the height adjustment handle.
Slide the flat screwdriver through
u
the forming gap to release the clip.
u Remove the height adjustment
handle.
