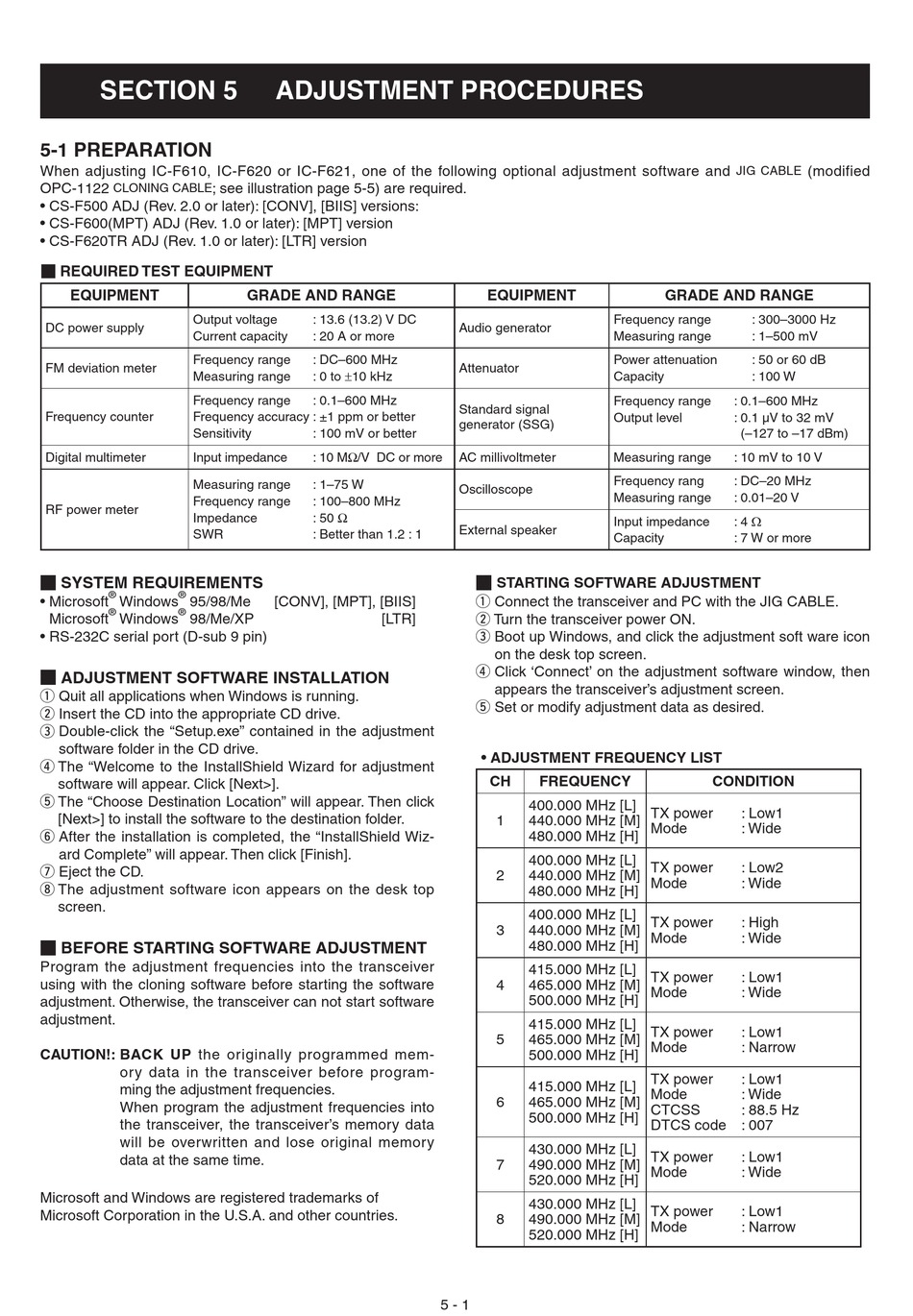

SECTION 5

5-1 PREPARATION

When adjusting IC-F610, IC-F620 or IC-F621, one of the following optional adjustment software and
OPC-1122
CLONING CABLE
• CS-F500 ADJ (Rev. 2.0 or later): [CONV], [BIIS] versions:
• CS-F600(MPT) ADJ (Rev. 1.0 or later): [MPT] version
• CS-F620TR ADJ (Rev. 1.0 or later): [LTR] version
M REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
Frequency range
FM deviation meter
Measuring range
Frequency range
Frequency counter Frequency accuracy : ± 1 ppm or better
Sensitivity
Digital multimeter Input impedance
Measuring range
Frequency range
RF power meter
Impedance
SWR
M SYSTEM REQUIREMENTS
® ®
• Microsoft Windows 95/98/Me
® ®
Microsoft Windows 98/Me/XP
• RS-232C serial port (D-sub 9 pin)
M ADJUSTMENT SOFTWARE INSTALLATION
q Quit all applications when Windows is running.
w Insert the CD into the appropriate CD drive.
e Double-click the "Setup.exe" contained in the adjustment
software folder in the CD drive.
r The "Welcome to the InstallShield Wizard for adjustment
software will appear. Click [Next>].
t The "Choose Destination Location" will appear. Then click
[Next>] to install the software to the destination folder.
y After the installation is completed, the "InstallShield Wiz-
ard Complete" will appear. Then click [Finish].
u Eject the CD.
i The adjustment software icon appears on the desk top
screen.
M BEFORE STARTING SOFTWARE ADJUSTMENT
Program the adjustment frequencies into the transceiver
using with the cloning software before starting the software
adjustment. Otherwise, the transceiver can not start software
adjustment.
CAUTION!: BACK UP the originally programmed mem-
ory data in the transceiver before program-
ming the adjustment frequencies.
When program the adjustment frequencies into
the transceiver, the transceiver's memory data
will be overwritten and lose original memory
data at the same time.
Microsoft and Windows are registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.

ADJUSTMENT PROCEDURES

; see illustration page 5-5) are required.
GRADE AND RANGE
: 13.6 (13.2) V DC
: 20 A or more
: DC–600 MHz
: 0 to ±10 kHz
: 0.1–600 MHz
: 100 mV or better
: 10 MΩ/V DC or more
: 1–75 W
: 100–800 MHz
: 50 Ω
: Better than 1.2 : 1
[CONV], [MPT], [BIIS]
[LTR]
EQUIPMENT
Audio generator
Attenuator
Standard signal
generator (SSG)
AC millivoltmeter
Oscilloscope
External speaker
M
STARTING SOFTWARE ADJUSTMENT
q Connect the transceiver and PC with the JIG CABLE.
w Turn the transceiver power ON.
e Boot up Windows, and click the adjustment soft ware icon
on the desk top screen.
r Click 'Connect' on the adjustment software window, then
appears the transceiver's adjustment screen.
t Set or modify adjustment data as desired.
• ADJUSTMENT FREQUENCY LIST
CH FREQUENCY
400.000 MHz [L]
1 440.000 MHz [M]
480.000 MHz [H]
400.000 MHz [L]
2 440.000 MHz [M]
480.000 MHz [H]
400.000 MHz [L]
3 440.000 MHz [M]
480.000 MHz [H]
415.000 MHz [L]
4 465.000 MHz [M]
500.000 MHz [H]
415.000 MHz [L]
5 465.000 MHz [M]
500.000 MHz [H]
415.000 MHz [L]
6 465.000 MHz [M]
500.000 MHz [H]
430.000 MHz [L]
7 490.000 MHz [M]
520.000 MHz [H]
430.000 MHz [L]
8 490.000 MHz [M]
520.000 MHz [H]
5 - 1
JIG CABLE
GRADE AND RANGE
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Power attenuation : 50 or 60 dB
Capacity : 100 W
Frequency range : 0.1–600 MHz
Output level : 0.1 µV to 32 mV
(–127 to –17 dBm)
Measuring range : 10 mV to 10 V
Frequency rang : DC–20 MHz
Measuring range : 0.01–20 V
: 4 Ω
Input impedance
Capacity : 7 W or more
CONDITION
TX power : Low1
Mode : Wide
TX power : Low2
Mode : Wide
TX power : High
Mode : Wide
TX power : Low1
Mode : Wide
TX power : Low1
Mode : Narrow
TX power : Low1
Mode : Wide
CTCSS : 88.5 Hz
DTCS code : 007
TX power : Low1
Mode : Wide
TX power : Low1
Mode : Narrow
(modified
