Icom IC-F610 Service Manual page 17

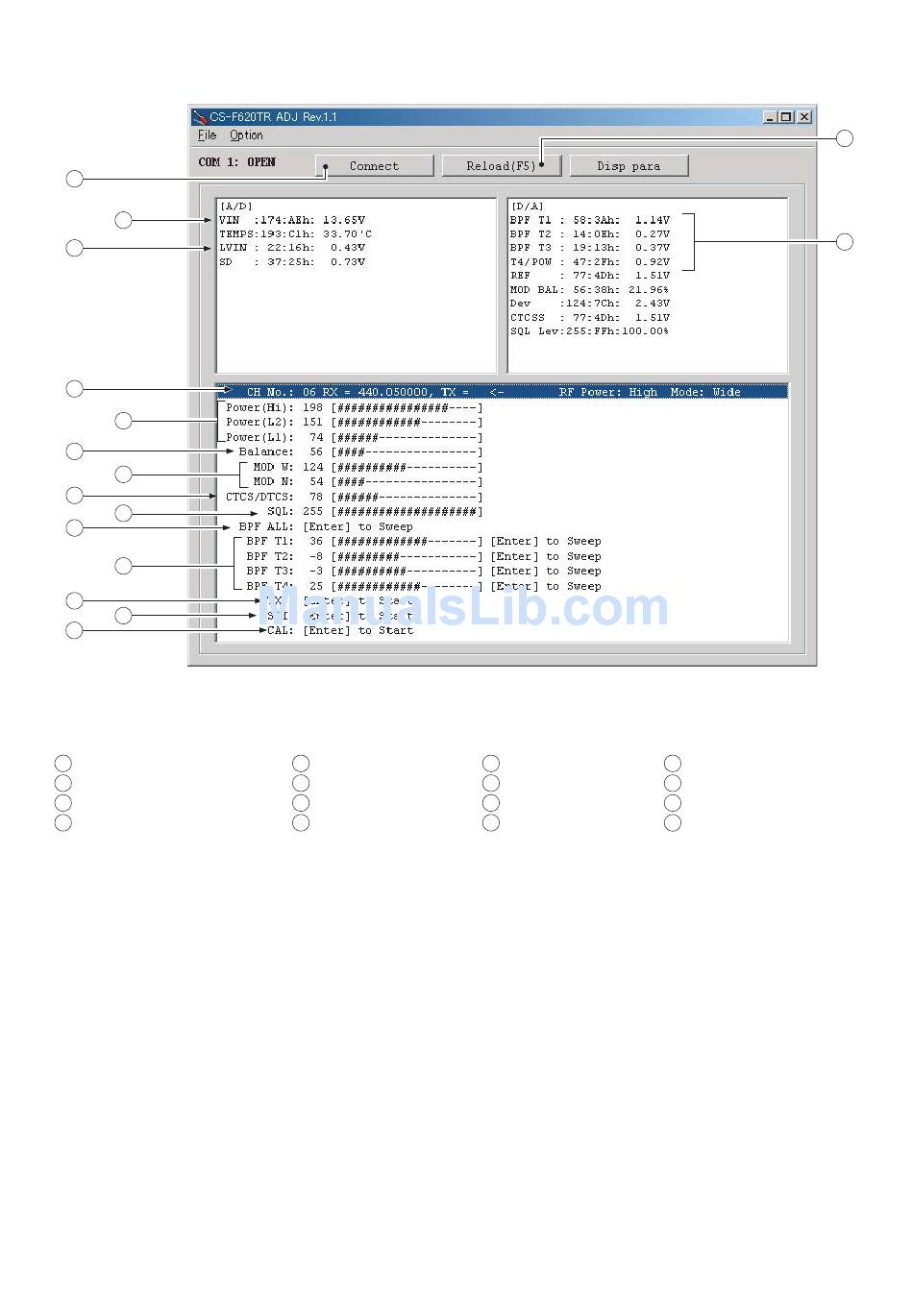

• CS-F620TR ADJ'S SCREEN EXAMPLE
1
4
5
6
7
8
9
10
11
12
13
14
15
16
NOTE:
: Transceiver's connection state
1
: Reload adjustment data
2
: Receive sensitivity measurement
3
: Connected DC voltage
4
The above values for settings are example only.
Each transceiver has its own specific values for each setting.
: PLL lock voltage
5
: Operating channel select
6
: RF output power
7
: Modulation balance
8
: FM deviation
9
: CTCSS/DTCS deviation
10
: Squelch level
11
: Receive sensitivity
12
(automatically)
5 - 4
: Receive sensitivity (manually)
13
: Reference frequency
14
: S-meter
15
: LSD calibration
