External SIM tray

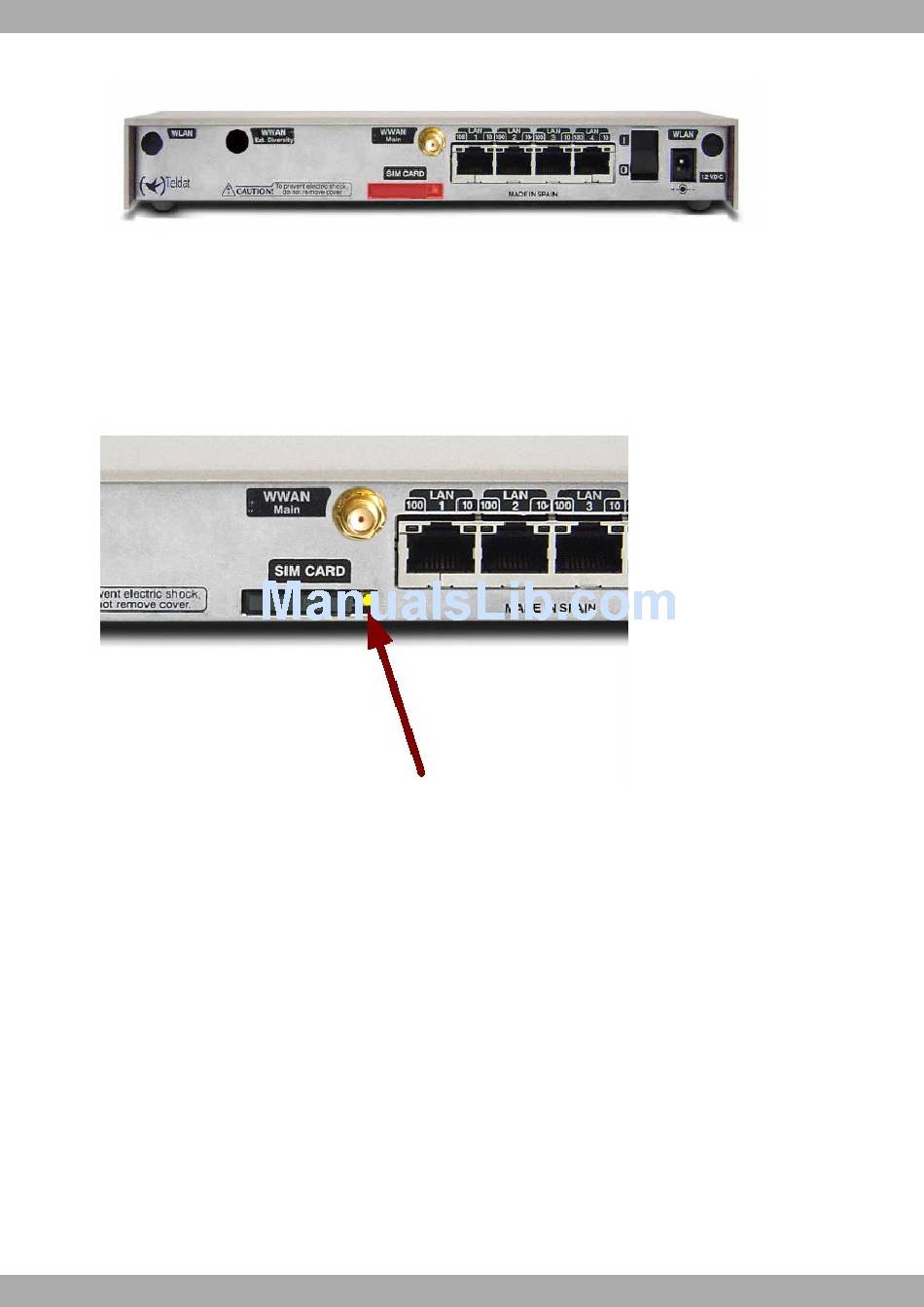

Fig. 8:
Procedure:
• Place the device as indicated in the above figure.
• Extract the tray. The tray is located in the red colored slot you can see in the above figure (SIM CARD).
• To extract it, press the yellow button located on the right of the slot by using a pointed object such as a ballpoint as
shown in the following figure.
Extracting the external SIM
Fig. 9:
• In order to insert the SIM card, first place it in the tray.
• If the tray already has a SIM card, you need to extract it by pushing the circular hole underneath the tray.
• Subsequently, you need to place the SIM on the tray so that its connectors can be seen; these are normally a gold
color. In addition, you must make sure that the tray notch coincides with the SIM notch.
• Then insert the tray in the slot using the guides.
