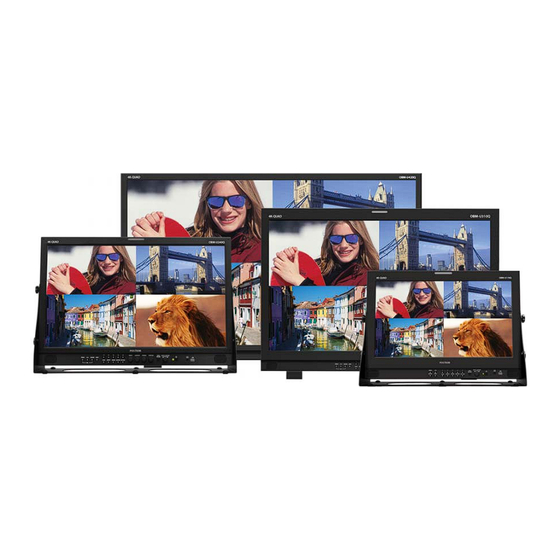

Postium OBM-4K Quad Series User Manual

Professional video 4k quad-split monitors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
OBM-4K Quad Series
Professional Video 4K Quad-Split Monitors
Operational Instructions
OBM-U170Q
OBM-U240Q
OBM-U310Q
OBM-U420Q
Ver.24.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OBM-4K Quad Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Postium OBM-4K Quad Series

Summary of Contents for Postium OBM-4K Quad Series

  • Page 1 User Manual OBM-4K Quad Series Professional Video 4K Quad-Split Monitors Operational Instructions OBM-U170Q OBM-U240Q OBM-U310Q OBM-U420Q Ver.24.11...

  • Page 2: Table Of Contents

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Table of Contents 1. Precaution 2. Main Features 3. Location and Function of Parts and Controls Front Panel Rear Panel 4. Using the Menu 5. Adjustment Using the Menu 6.

  • Page 3: Precaution

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 1. Precaution Always use set voltage. AC 100 ~ 230V, 50/60Hz DC 24V(OBM-U170Q, OBM-U240Q, OBM-U310Q), U420Q cannot be connected to DC. All these instruc ons should be read and understood before opera ng the unit. If liquid is spilled on or impacts this product, please disconnect the product immediately and seek professional help before con nued use.
  • Page 4 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Do not a empt to service the product yourself. Removing covers can expose you to high voltage and other dangerous condi ons. Request a qualified service person to perform servicing. When the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteris cs and performance as the original parts.

  • Page 5: Main Features

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 2. Main Features 4K professional monitor OBM-U***Q Series unit has the following features: -Versa le HD/3G/4K Input Capability This monitor is equipped with standard 12G-SDI input interface(x4) and support 4K 2-sample interleave signals and 4K square division signals and Quad split and Side by side split.

  • Page 6: Location And Function Of Parts And Controls

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 3. Location and Function of Parts and Controls Front Panel (OBM-U170Q) Front Panel (OBM-U240Q / U310Q / U420Q) A : Input select Bu ons/Lamp Press to monitor the signal input to each connector. [SINGLE] Bu on/Lamp - Press the bu on to select SDI input or SFP input for one channel.
  • Page 7 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors C : Func on Bu on/Lamp Press to adjust or turn/off each func on. [SCAN/S.SEL] Bu on - Press the bu on to adjust the scan mode. (Zero Scan, 1:1 Scan). (single mode) - Press this bu on to select the channel which you want to adjust the se ngs of.

  • Page 8: Rear Panel

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors (Standby) Switch and Indicator - Press to turn the power on when this monitor is in standby mode. A er being turned on, the monitor performs ini aliza on and the indicator flashes in green. - Press the switch again for a second to set the monitor in standby mode.
  • Page 9 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors E : SERIAL REMOTE IN/OUT connector (RJ-45) Used for the future func on expansion. Connects the monitor to control the program provided by the manufacturer by using RS-422/485 communica on or the external UMD(IMD) equipment and controls the monitor.

  • Page 10: Using The Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 4. Using the Menu This monitor is equipped with an OSD menu to make various adjustments and se ngs such as picture control, input se ng, set se ng change, etc. 1.

  • Page 11: Adjustment Using The Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 5. Adjustment Using the Menus The OSD menu of this monitor consists of the following items. Status menu (To indicate the current se ngs) Color Temp./Color Space/Gamma menu Format Color Temp Color Temp...
  • Page 12 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors User Configura on menu WFM/Vector Se ng User Preset Se ng WFM/Vector Load Type Save Intensity Func on Bu on Se ng Transparency F1 Bu on Color F2 Bu on Line Select F3 Bu on Line Posi on...
  • Page 13 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Security Se ng Remote menu Parallel Remote Key Lock 1 Pin Password 2 Pin User Parameter Lock 3 Pin Change Password 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin Monitor ID In-Monitor Display Se ng...

  • Page 14: Osd Menu Operations

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 6. OSD Menu Operations Status Menu The Status menu displays the current status of the Page 3/4 monitor. The following items are displayed. Page 1/4 SDI Input SDI Payload ID Iden fier Sampling Format...

  • Page 15: Color Temp/Color Space/Gamma Menu/Input Range Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Color Temp/Color Space/Gamma Menu/Input Range Menu These menus are used for adjus ng or se ng the Page 2/3 color temperature, color space or gamma of the picture. Page 1/3 Color Space Selects the color space from among [ITU-R...
  • Page 16 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Color Temp/Color Space/Gamma Menu/Input Range Menu ST-2084 10,000 - ToneMappingPQ-1,000/4,000/10,000: As shown in the graph below, within the panel Tone mapping mode can be set to 1,000, 4,000, maximum brightness level 800 cd/m2 sec on or 10,000.
  • Page 17 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Color Temp/Color Space/Gamma Menu/Input Range Menu Tonemapping PQ 4,000 As shown in the graph below, within the panel maximum 800 cd/m2 sec on of the model, the data level is only expressed up to 4000 cd/m²...
  • Page 18 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Color Temp/Color Space/Gamma Menu/Input Range Menu Default Log Sel ** 1) OSD Menu of this mode is different, Allows the user to select a camera log among depending on each model’s HDR maximum Log-C EI 160~3200, S-Log2 To LC-709, luminance.

  • Page 19: Camera Assist Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Camera Assist Menu Color Temp/Color Space/Gamma ... Page 3/3 Page 1/2 Zebra & False Color RGB/YCC Range - Evaluates the Luma(Y’) level of the input image. - Selects Black Level and White Level of RGB/YCC If the certain Y’...

  • Page 20: User Configuration Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Camera Assist Menu User Configura on Menu User Configura on consists of the adjustment menus Page 2/2 such as[User Preset Se ng],[Func on Bu on Se ng],[Input Se ng], [Output Se ng], [Speaker Out / Audio Level Meter Se ng], [Marker Se ng],[WFM/Vector Se ng], [Closed Cap on Se ng], [System Se ng].
  • Page 21 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors User Configura on Menu - The following func ons are assigned in the factory. [Auto]: [F1]: HDMI to Screen 4(2) / (4:quad, 2:PBP) Square / 2-S.I. The input automa cally recognizes [F2]: H/V Delay the VPID (Video Payload ID) embedded in the SDI [F3]: Color Temp...
  • Page 22 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors User Configura on Menu Page 3/7 Page 4/7 Marker Se ng Speaker Out / Audio Level Meter Se ng Marker - Selects the audio channel of the SDI & HDMI - Selects On to display the marker, and Off...
  • Page 23 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors User Configura on Menu Page 5/7 Page 6/7 Marker Se ng 2/2 WFM/Vector Se ng This func on is ac vated when the “Aspect Marker” WFM/Vector is set [Custom]. - Select [On] to display the [WFM/Vector] and Menu >...

  • Page 24: Remote Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors User Configura on Menu Remote Menu Page 7/7 Page 1/3 Parallel Remote System Se ng Selects the Parallel Remote connector pins for Internal Signal which you want to change the func on. Generates the White Pa ern internally.
  • Page 25 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Remote Menu Page 2/3 L-Tally Color - Selects the color of le tally lamp displayed in IMD. - The user can select from among [White], [Gray], [Red], [Green], [Blue], [Yellow], [Cyan], [Magenta]. R-Tally Color - Selects the color of right tally lamp displayed in IMD.
  • Page 26 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Remote Menu **Note Remote SFP module support is ac vated only when the module is first connected and the monitor power is turned on. Embrionix emSFP Settings 2/2 PTP Mode : MultiCast Remote...

  • Page 27: Security Menu

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Security Menu Page 1/1 Security Security Setting Key Lock : Password : * * * * User Parameter Lock : Change Password : * * * * Security Se ng Key Lock When Key Lock func on is set On, the change of the menu se ngs and func ons doesn’t work.

  • Page 28: Scan Mode Image

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 7. Scan Mode Image 4K/QFHD Mode The LCD panel resolu on of OBM-U170Q/U240Q/U310Q/U420Q is QFHD(16:9) 3840x2160, so if the input signal is 3840x2160 1:1 mapping is supported. If the input signal is DCI 4K(4096x2160), 1:1 mapping is not supported.

  • Page 29: Connecting The Sdi Signals

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 8. Connecting the SDI Signals Single Link 12G/6G/3G/HD-SDI, Dual-Link 6G/3G-SDI, Quad Link 12G/6G/3G/-SDI signals can be Input to the SDI In connectors of this monitor. Up to 4-channel Single Link 12G/6G/3G/HD-SDI signals, 1-channel Dual-Link 6G/3G-SDI or 1-channel Quad-Link 12G/6G/3G-SDI signals can be input.

  • Page 30: Available Signal Formats

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 9. Available Signal Formats This monitor is applicable to the following signal formats Single / Quad / PBP HD-SDI Signal System Signal Format 1920 x 1080 / 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p/Psf, 50, 59.94, 60i 2048 x 1080 / 4:2:2 YCbCr 10bit...
  • Page 31 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Quad-Link (4K) HD-SDI Signal System Signal Format 3840 x2160 / 2-sample interleave division/ 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p Square division 4096 x2160 / 2-sample interleave division/ 4:2:2 YCbCr 10bit 23.98, 24, 25, 29.97, 30p Square division...

  • Page 32: Key Functions

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 10. Key Functions Versa le 4K/QFHD Input Capability OBM-HDR provides the func on of comparing HDR The OBM-U***Q series is equipped with standard and SDR(Standard Dynamic Range) on the displayed 12G-SDI input interface(x4) and support 4K/8K Quad image on the OBM series simultaneously.
  • Page 33 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Adjustable Gamma Focus Assist This func on controls the aperture level of a video Gamma value is adjustable from 1.0 to 3.0 as user's preference to monitor in the dark area of the picture. signal, and displays images on screen with sharpened edges to help camera focus opera on.
  • Page 34 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Various 4K/12G Display Modes Single Link 12G-SDI 12G-SDI Single Link 12G-SDI Single Link 2160 Dual Link 2-Sample Interleave(2-SI) 3G-SDI Level B x 2 Link A-1 A-2 B-1 B-2 (*Supported up to 2160/30p) Quad Link 2 Sample Interleave (2SI) Each link contains a full image at 1/4 resolu on.
  • Page 35 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors False Color This func on evaluates the Luma(Y') level of the input image. If the certain Y' level is set, the pixels with the designated Luma(Y') level are displayed with the zebra pa ern or the color pa ern. There are three modes in OBM False Color.
  • Page 36 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Supports 12G-SDI Single Link Square Division signal format The OBM-U***Qseries can display 12G-SDI Single Link 4K/UHD signals as well as 3G-SDI Quad Link signals. This is already a very useful feature, compared to compe tors’ monitors. Most of the single link 12G-SDI signals are displayed as 2-S.I.
  • Page 37 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors HDR Waveform When HDR more is set on, HDR Waveform is displayed on screen. HDR Mode + HDR Waveform HDR Waveform SDR Mode + SDR Waveform SDR Waveform In-Monitor Display(IMD) Func on The image source names and tally informa on can be displayed on the screen, with an external remote func on via Ethernet.
  • Page 38 12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Various Markers The OBM U/X series can display various markers, including aspect marker, area marker, and center marker. In addi on, the detailed display se ngs of each marker are allowed. For example, the color, brightness, horizontal/ver cal posi on, and thickness of aspect markers can all be adjusted.

  • Page 39: Product Specifications

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors 11. Product Specifications Specifica ons (OBM-U170Q) ITEM OBM-U170Q 12G/6G/3G/HD 4 x BNC Input 1 x HDMI HDMI 2.0 2 x SFP Output 12G/6G/3G/HD/4 Ac ve Loop Output 4 x BNC SMPTE ST 2082-12(12G Quad 8K) 4320p(60/59.94/50) SMPTE ST 2082-10(12G Single)

  • Page 40: Obm-U240Q

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Specifica ons (OBM-U240Q) ITEM OBM-U240Q 12G/6G/3G/HD 4 x BNC Input 1 x HDMI HDMI 2.0 2 x SFP Output 12G/6G/3G/HD/4 Ac ve Loop Output 4 x BNC SMPTE ST 2082-12(12G Quad 8K) 4320p(60/59.94/50) SMPTE ST 2082-10(12G Single) 2160p(60/59.94/50/30/29.97/25/24/23.98)

  • Page 41: Obm-U310Q

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Specifica ons (OBM-U310Q) ITEM OBM-U310Q 12G/6G/3G/HD 4 x BNC Input HDMI 2.0 1 x HDMI 2 x SFP Output 4 x BNC 12G/6G/3G/HD/4 Ac ve Loop Output 4320p(60/59.94/50) SMPTE ST 2082-12(12G Quad 8K) 2160p(60/59.94/50/30/29.97/25/24/23.98) SMPTE ST 2082-10(12G Single)

  • Page 42: Obm-U420Q

    12G-SDI 4K Quad Monitors OBM-4K Q Series Professional Video 4K Quad-Split Monitors Specifica ons (OBM-U420Q) ITEM OBM-U420Q 12G/6G/3G/HD 4 x BNC Input HDMI 2.0 1 x HDMI 2 x SFP Output 4 x BNC 12G/6G/3G/HD/4 Ac ve Loop Output 4320p(60/59.94/50) SMPTE ST 2082-12(12G Quad 8K) SMPTE ST 2082-10(12G Single) 2160p(60/59.94/50/30/29.97/25/24/23.98)
  • Page 43 208, Building A, Samsong Techno Valley, 140, Tongil-ro, Deogyang-gu, Goyang-si, Gyeonggi-do, Korea, 10594 Tel : +82.2.354.6055 / Fax : +82.2.354.6056 E-mail : sales@postium.com www.postium.com...
