Page 1: User Manual

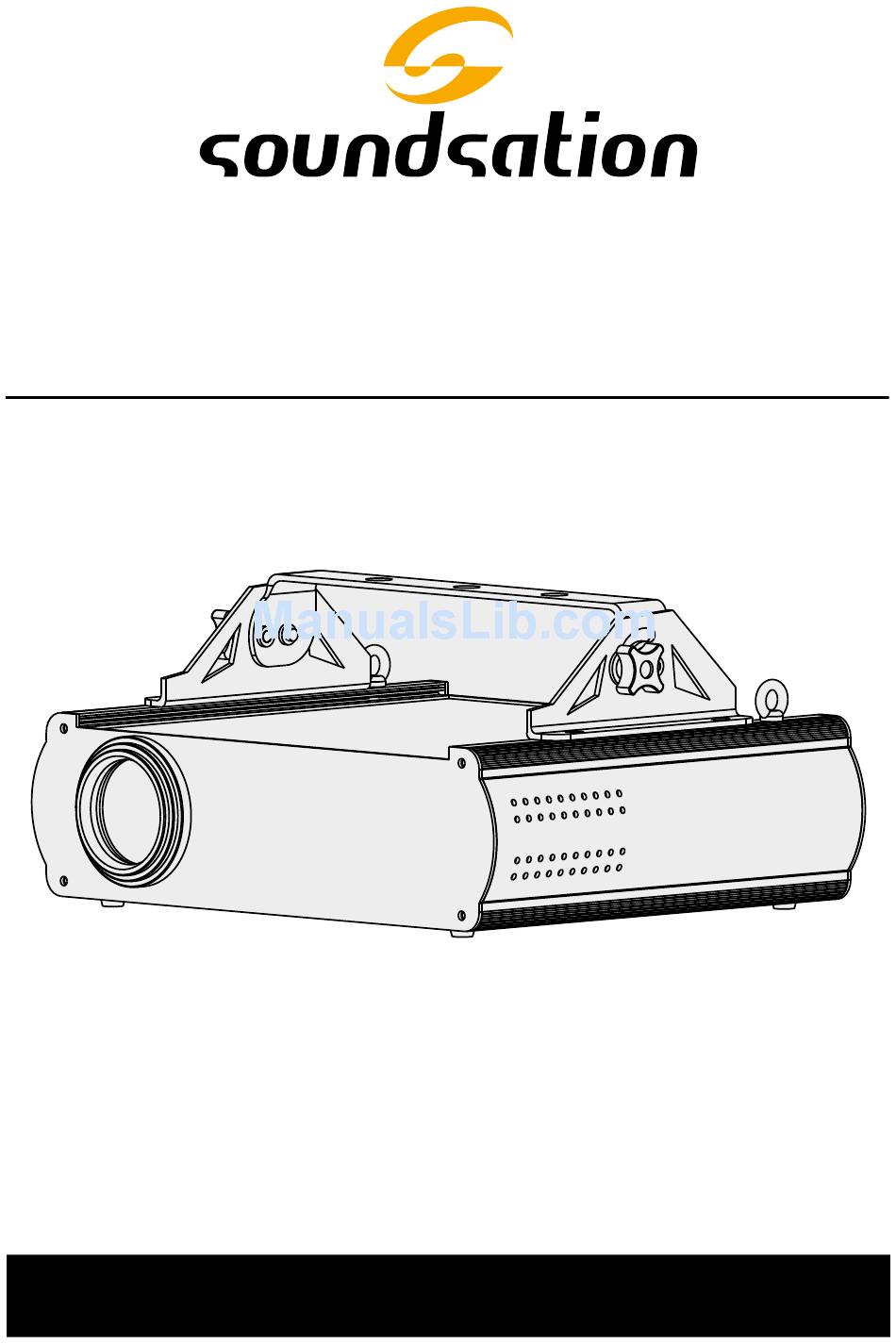

OMEGA-850 PRO 850mW Professional Graphic Laser with ILDA and SD-Card ® USER MANUAL Please read this manual carefully and proper take care of this manual. - Page 2 Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future.
-
Page 3: Table Of Contents
ENGLISH TABLE OF CONTENTS 1. 1. INTRODUCTION ....................7 1.1. UNPACKING ................................7 1.2. ACCESSORIES ................................7 2. OVERVIEW ........................8 3. MAIN FEATURES ......................8 4. OVERHEAD RIGGING ....................8 5. MAINS CONNECTIONS .....................9 6. DMX CONNECTION ....................10 6.1. DMX Terminator ..............................11 6.2. 3-Pin vs 5-Pin DMX cables ..........................11 7. - Page 4 ENGLISH OMEGA-850 PRO User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 5 ENGLISH OMEGA-850 pro User manual CAUTION - CLASS 4 LASER LIGHT - WHEN OPEN AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED RADIATION f This product is for laser show only. The Class 4 laser light should be operated by professional operator only.
-
Page 6: Power Supply
ENGLISH OMEGA-850 PRO User manual Water / Moisture The apparatus should be protected from moisture and rain and can not be used near water; for example near a bathtub, a kitchen sink, a swimming pool, etc. Condensation To avoid condensation to be formed inside, allow this unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. -
Page 7: Introduction
1.2. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with your OMEGA-850 PRO laser, like Cables, Splitters, DMX controllers, and a wide range of fixtures. All products in our catalogue has been long tested with this device, so we recommend... -
Page 8: Overview

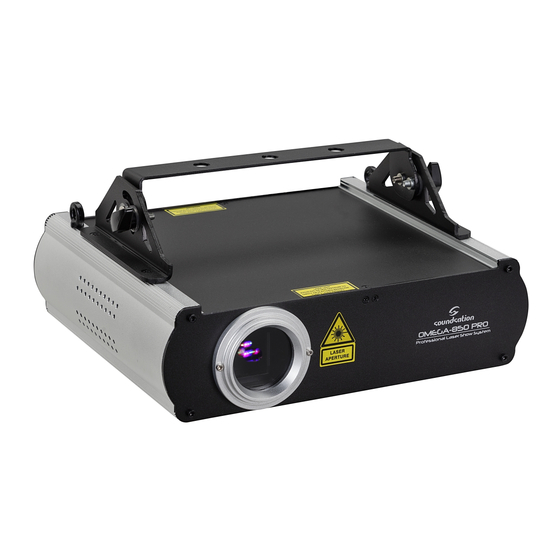

2. OVERVIEW SOUNDSATION OMEGA-850 PRO is a professional Class 4 graphic laser projector based on latest scanning laser light technology. It features high-quality LED RGB laser emitters and fish-eye lens that produce bright laser beams with light angle of almost 180°. -
Page 9: Mains Connections
ENGLISH OMEGA-850 pro User manual • Make sure the area below the installation place is free from unwanted persons during rigging, de -rigging and servicing. • Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. -
Page 10: Dmx Connection
ENGLISH OMEGA-850 PRO User manual Wire correspondence is as follow: Cable (EU) International Brown Live Blue Neutral Yellow/Green Earth The earth must to be connected! Pay attention to the safety! Before taking into operation for the first time, the installation has to be approved by an expert. -
Page 11: Dmx Terminator
ENGLISH OMEGA-850 pro User manual 6.1. DMX Terminator DMX is a resilient communication protocol, however errors still occa- DMX Terminator sionally occur. In order to prevent electrical noise from disturbing and 120ohm, 1/4W resistor corrupting the DMX control signals, a good habit is to connect DMX output of last fixture in the chain to a DMX terminator, especially over long signal cable runs. -
Page 12: Front/Rear Panels
ENGLISH OMEGA-850 PRO User manual NOTE: • Adjust 1 and 2 at the same time • Adjust 3 and 4 at the same time INSTRUCTIONS • 1 tight 2 loose - light slants to left • 1 loose 2 close - light slants to right •... -
Page 13: Menu Operating Instruction
ENGLISH OMEGA-850 pro User manual 15. Knob with push switch: Menu control knob up and down to select, push to con- firm, exit, etc. 16. ILDA input: Standard ILDA interface, input, when connected to the device, it auto- matically switch between internal program and ILDA program. -
Page 14: Initial Setting
ENGLISH OMEGA-850 PRO User manual 9.1. Initial Setting Language Setting At start-up, when version information appears, press and hold 2 seconds. Choose between Simplified Chinese, Traditional Chinese, ENGLISH, and JAPANESE. Confirm the selection, and automatically exit into boot routine. Basic Setting At start-up, when version information appears, move left or right the encoder. -
Page 15: Pattern Setting
ENGLISH OMEGA-850 pro User manual file by file put into the SD list, as follows ILD file playback times SD default list Select No. previously compiled list will be added to the back, empty on the new list, re-start editing a new list. - Page 16 ENGLISH OMEGA-850 PRO User manual DMX Programming Mode Channel Value Description 000-255 Sound sensitivity control Laser Blackout Pattern out through the mode. Channel values of 1-6. The pattern 001-049 will shrink. Pattern out of bounds fold back mode. Channel values of 51-56. The...
-
Page 17: Specifications
ENGLISH OMEGA-850 pro User manual 000-007 Primary 008-015 016-023 Green 024 031 Yellow 032-039 Blue CH13 / CH24 040-047 Purple Color 048-055 Cyan 056-063 White 064-127 Current discoloration 128-191 Monochrome transition 192-255 Blending transition 11. SPECIFICATIONS Model OMEGA-850 PRO Light source... -
Page 18: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. - Page 19 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
