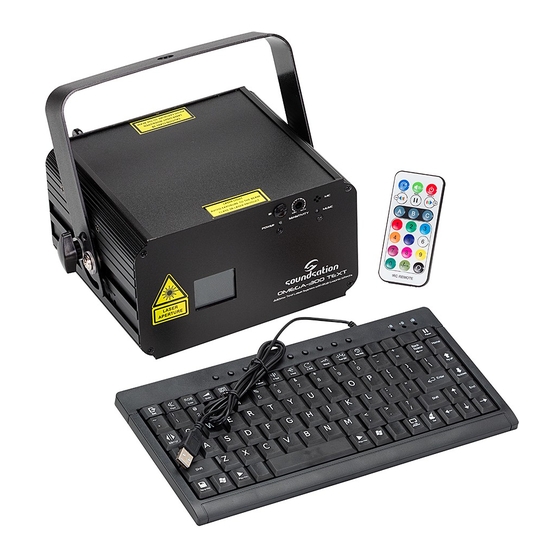

- Page 1 OMEGA-330 TEXT 330mW Text Laser System with RGB Graphic Effects USER MANUAL Please read this manual carefully and proper take care of this manual.
-
Page 2: Table Of Contents
Dear customer, First of all thanks for purchasing a SOUNDSATION® product. Our mission is to satisfy all possible needs of musical instrument, professional audio and lighting users offering a wide range of products using the latest technologies. We hope you will be satisfied with this item and, if you want to collaborate, we are looking for a feedback from you about the operation of the product and possible im- provements to introduce in the next future. - Page 3 ENGLISH OMEGA-330 TEXT User manual IMPORTANT SAFETY SYMBOLS The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating con- ditions, which may be sufficient to constitute the risk of electric shock or death.
- Page 4 ENGLISH OMEGA-330 TEXT User manual f This product is for laser show only. The class 3B laser light should be operated by professional operator only. f This is so-called show laser, emitting radiation with a wavelength spectrum between 400 and 700nm and producing lighting effects for shows.
-
Page 5: Power Supply
ENGLISH OMEGA-330 TEXT User manual f Heed all warning f Follow all instructions Water / Moisture The apparatus should be protected from moisture and rain and can not be used near water; for example near a bathtub, a kitchen sink, a swimming pool, etc. -
Page 6: Introduction
1. INTRODUCTION Thank you for purchasing our OMEGA-330 TEXT graphic laser. Enjoy your new equip- ment and make sure to read this manual carefully before operation! This user manual is made to provide both an overview of controls, as well as informa- tion on how to use them. -
Page 7: Overview
1.2. ACCESSORIES SOUNDSATION can supply a wide range of quality accessories that you can use with your OMEGA-330 TEXT laser, like Cables, Splitters, DMX controllers, and a wide range of fixtures. All products in our catalogue has been long tested with this device, so we recommend you to use Genuine SOUNDSATION Accessories and Parts. -
Page 8: Mains Connections
ENGLISH OMEGA-330 TEXT User manual • Make sure the area below the installation place is free from unwanted persons during rigging, de -rigging and servicing. • Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. -
Page 9: Dmx Connection
ENGLISH OMEGA-330 TEXT User manual Wire correspondence is as follow: Cable (EU) International Brown Live Blue Neutral Yellow/Green Earth The earth must to be connected! Pay attention to the safety! Before taking into operation for the first time, the installation has to be approved by an expert. -
Page 10: Front/Rear Panels
ENGLISH OMEGA-330 TEXT User manual 6.1. DMX Terminator DMX is a resilient communication protocol, however errors still occasionally occur. In order to prevent electrical noise from disturbing and corrupting the DMX control signals, a good habit is to connect DMX output of last fixture in the chain to a DMX terminator, especially over long signal cable runs. - Page 11 ENGLISH OMEGA-330 TEXT User manual MIC: Receiving sound signal. Music LED: Indicated light of music signal when detected. Handle: Used for hanging the light. SENSITIVITY POWER MUSIC OMEGA-300 TEXT 330mw Text Laser System with RGB Graphic Effects Key switch: Make sure the professional person use.
-
Page 12: Menu Operating Instruction
ENGLISH OMEGA-330 TEXT User manual 8. MENU OPERATING INSTRUCTION When laser is powered on, LED display on rear panel shows the current operating standalone mode or DMX address of DMX mode. With help of LED control panel, is very easy to set and change the operating mode of laser. After every resetting and sav- ing, the new mode information will be shown on the LED display at next power on. - Page 13 ENGLISH OMEGA-330 TEXT User manual...
- Page 14 ENGLISH OMEGA-330 TEXT User manual 8.1. Initial Setting Auto/ Auto1-Auto9 To choose program effect through UP/DOWN, ENTER to Sound Sound1- confirm Programs Sound9 Text TEXT Loop playback of saved TEX0-9 Editing TEXTO-TEXT9 Text program 0-9, ENTER to play Mode d-dt (DATE &...
-
Page 15: Remote Controller
ENGLISH OMEGA-330 TEXT User manual 9. REMOTE CONTROLLER BUTTON FUNCTION DESCRIPTION Power ON/OFF and black out. When it is pressed, enable laser light ON/OFF output, press again to blackout the laser, and circle as it. Press AUTO to enter Auto mode, it will play Auto show randomly. -
Page 16: Keyboard Operation
6 - DMX 7 - SLAVE 8 - SYSTEM 10.1. Keyboard operation instruction of AUTO mode Press WINDOWS button to enter menu. OMEGA-330 TEXT will show corresponding menu. Press UP/DOWN to choose 1 (AUTO). Press ENTER to run AUTO mode. Keyboard... - Page 17 ENGLISH 10.3. Keyboard operation instruction in TEXT mode Press WINDOWS button to enter menu. The OMEGA-330 TEXT will show corre- sponding menu. Press UP/DOWN to choose 3 (TEXT). Press ENTER to run TEXT mode. Keyboard Pattern Instruction Operation Text flow setting, FLOW/STOP, press UP/DOWN to set flow Flow speed.
- Page 18 ENGLISH Keyboard Pattern Instruction Operation ALT + Save text and text parameter, No. KEY means content saved Play + No. on it. Loop Play- Display repeat setting, from the saved text. back Choose last edited text, if one key without text, it will not TEXT DISPLAY Pg Up display.
-
Page 19: Dmx Channel Chart
ENGLISH OMEGA-330 TEXT User manual Enters countdown mode. NO. is flicker, press 0-9 to ENTER set countdown second. 4 number countdown time is maximum, press ENTER to confirm. BACKSPACE Delete previous character. SPACE KEY Press SPACE KEY or PAUSE, timing and timing pause COUNT- switch. - Page 20 ENGLISH OMEGA-330 TEXT User manual PATTER GROUPS Channel Value Description 000-031 First pattern group 032-063 Second pattern group 064-095 Third pattern group 096-127 Fourth pattern group 128-159 Fifth pattern group 160-191 Sixth pattern group 192-223 Seventh pattern group 224-255 Eighth pattern group...
-
Page 21: Specifications
ENGLISH OMEGA-330 TEXT User manual 000-127 128 different fixed position on X axis CH14 X Movement 128-191 Clockwise rotation 192-255 Anticlockwise rotation CH15 Movement 000-255 Fast to slow Speed 000-127 128 different fixed position on X axis CH16 Y Movement... -
Page 22: Warranty And Service
SOUNDSATION shall satisfy the warranty obligations by remedying any material or manufacturing faults free of charge at SOUNDSATION’s discretion either by repair or by exchanging individual parts or the entire appliance. Any defective parts removed from a product during the course of a warranty claim shall become the property of SOUNDSATION. - Page 23 Questo prodotto viene importato nella UE da FRENEXPORT SPA – Via Enzo Ferrari, 10 - 62017 Porto Recanati - Italy www.soundsa tionmusic.com Soundsation® is a registered trademark of FRENEXPORT SPA - Italy Soundsation® è un marchio di fabbrica registrato della FRENEXPORT SPA - Italy...
