Dynojet POWER COMMANDER V Installation Instructions page 4

FIG.D
FIG.E
FIG.F
I17-017 www.powercommander.com
TPS
Remove

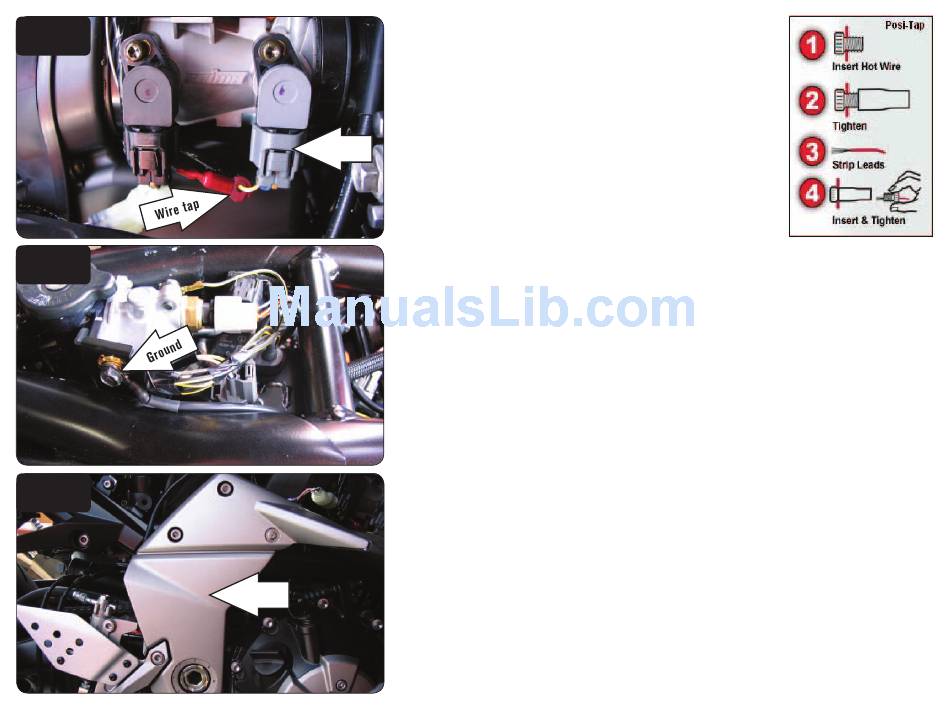

6 Locate the Throttle Position Sensor connector (Fig. D).
This connector is located on the right hand side of the
throttle bodies and is GREY in color.
7 Attach the supplied Posi-tap to the YELLOW/WHITE
wire of the TPS.
This connection can be made further up the harness to
make it less noticable if desired.
8 Connect the GREY wire from the PCV to the Posi-tap
(Fig. D)
9 Attach the ground wire from the PCV to the stock ground wire next to the
thermostat housing (Fig. E).
10 Reinstall fuel tank.
11 Remove the frame cover on the right hand side (Fig. F).
2009 Kawasaki Z1000 PCV - 4
