Dynojet POWER COMMANDER V Installation Instructions page 3

FIG.A
FIG.B
Unplug
FIG.C
I17-017 www.powercommander.com
1
2
3
Unplug
4
Ground wire
5
Remove the main seat and the passenger seat.
The installation can be done without removing the fuel tank, but it may make
the installation easier by doing so.

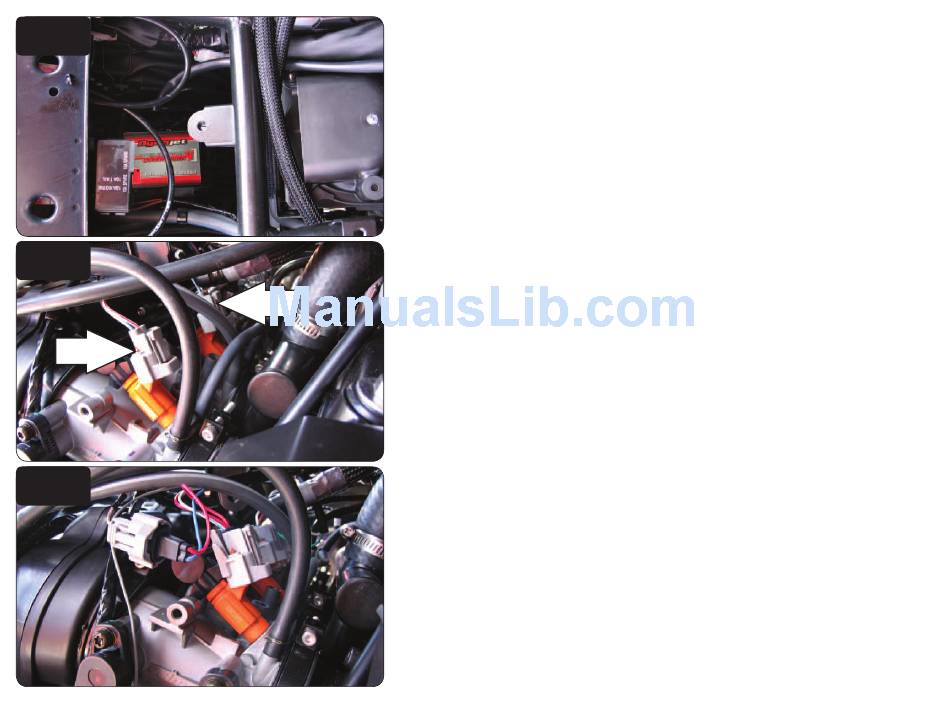

Mount the PCV to the inner rear fender, behind the air box (Fig. A).
Route the harness towards the front of the bike along the left hand frame tube.
Unplug the stock wiring harness from each of the 4 injectors.
Figure C only shows the #3 and #4 injector. You will need to also remove the
harness from #1 and #2 .
Plug the PCV wiring harness in-line of the stock harness and injectors (Fig. C).
PCV harness:
ORANGE - cylinder #1 (left)
YELLOW - cylinder #2
GREEN - cylinder #3
BLUE - cylinder #4 (right)
2009 Kawasaki Z1000 PCV - 3
