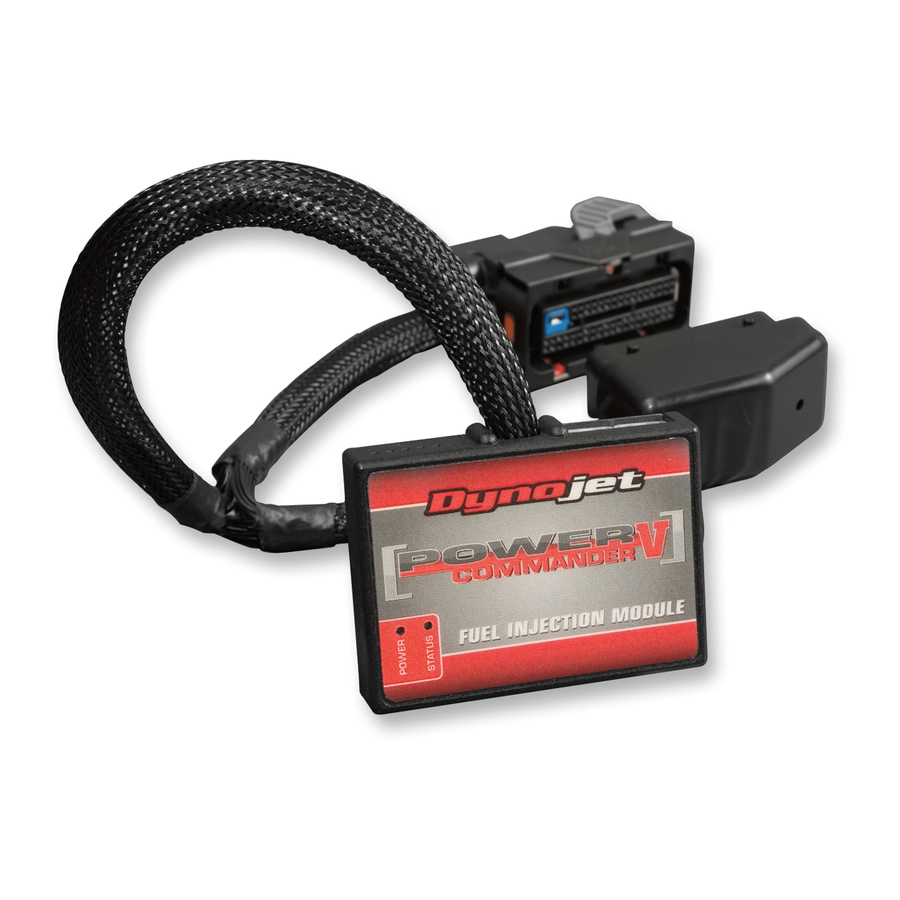

Dynojet POWER COMMANDER V Installation Instructions

For arctic cat 450cc 2013; arctic cat 500cc 2013

Hide thumbs Also See for POWER COMMANDER V:

2013 Arctic Cat 450cc/500cc ATV

I n s t a l l a t i o n I n s t r u c t i o n s

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

I11-016.01

www.powercommander.com

2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com

PARTS LIST

Power Commander

USB Cable

CD-ROM

Installation Guide

Power Commander Decals

Dynojet Decals

Velcro

Alcohol swab

Posi-tap

THE IGNITION MUST BE TURNED

OFF BEFORE INSTALLATION!

YOU CAN ALSO DOWNLOAD THE

POWER COMMANDER SOFTWARE AND

LATEST MAPS FROM OUR WEB SITE AT:

www.powercommander.com

2013 Arctic Cat 450cc/500cc - PCV - 1

Page 1 2013 Arctic Cat 450cc/500cc ATV Installation Guide I n s t a l l a t i o n I n s t r u c t i o n s Power Commander Decals Dynojet Decals Velcro Alcohol swab Posi-tap...
Page 2: Usb Connection
Crank Do NOT connect anything to this port unless Wire connections: instructed to do so by Dynojet. It is used to transfer crank trigger data from one module to 1. Remove the rubber plug on the backside of the another.
Page 3 FIG.A 2013 Arctic Cat 450cc Installation Use the following instructions to install the 2013 Arctic Cat 450cc PCV module. Remove the side panels and seat. FIG.B Remove the two screws securing the gas tank shroud and the single bolt securing the gas tank to the frame as shown in Figure B. Prop the fuel tank up slightly to gain access to the injector connection.
Page 4 FIG.D Locate the injector on top of the throttle body from the right hand side of the ATV as shown in Figure D. Unplug the stock wiring harness from the injector. Attach the connectors from the PCV to the injector and the stock wiring harness.
Page 5 FIG.G Remove the two screws securing the tool kit to expose the battery. Using the supplied velcro, secure the PCV under the seat as shown in Figure G. Make sure to clean both surfaces with the alcohol swab before attaching. Route the PCV harness under the frame spar toward the front of the machine.
