EdgeStar AWC151DZ Service Manual page 9

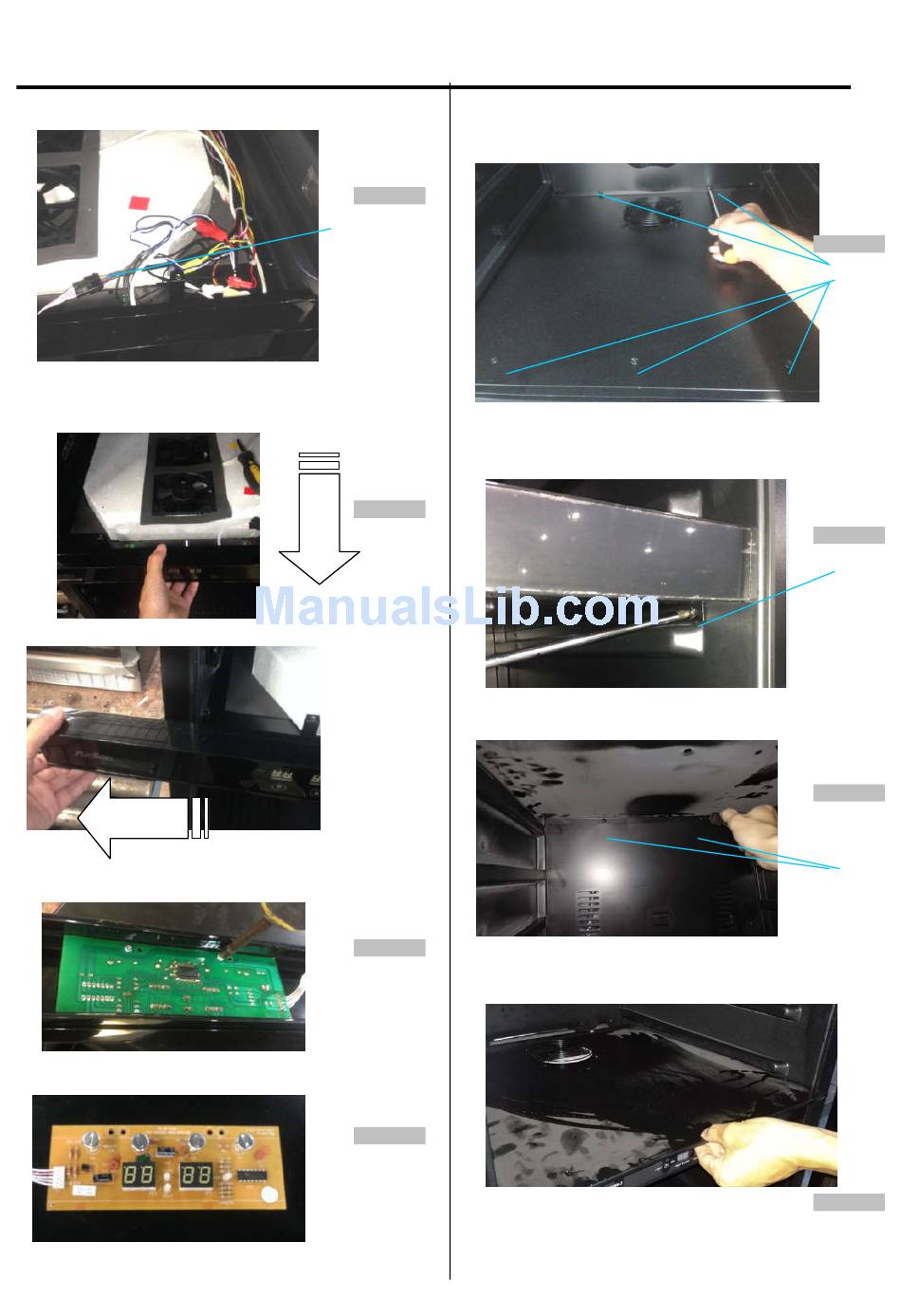

3. DISASSEMBLY
4.Find out the display board connector. (figure 22)
5.Pull out the air duct board assembling from the cabinet, then
remove the front display support bracket from left side (figure
23)
6. Loosen two screws. (figure 24)
7. The display board is like below. (figure 25)
(Models：AWC241TDZ)
1. Loosen five screws. (figure 2 6 )
Figure 22
connector
2. Remove two screws from both side of air duct board C
(figure 27)
Figure 23
3. Remove screws from the lower side of air duct board C
(figure 28)
Figure 24
4. Lift up the air duct board B cover and pull it out (figure 29)
Figure 25
- 9 -
Figure 26
screw
Figure 27
screw
Figure 28
screw
Figure 29
