3. DISASSEMBLY
3-6 SENSOR & FAN
(Models：AWC151DZ)

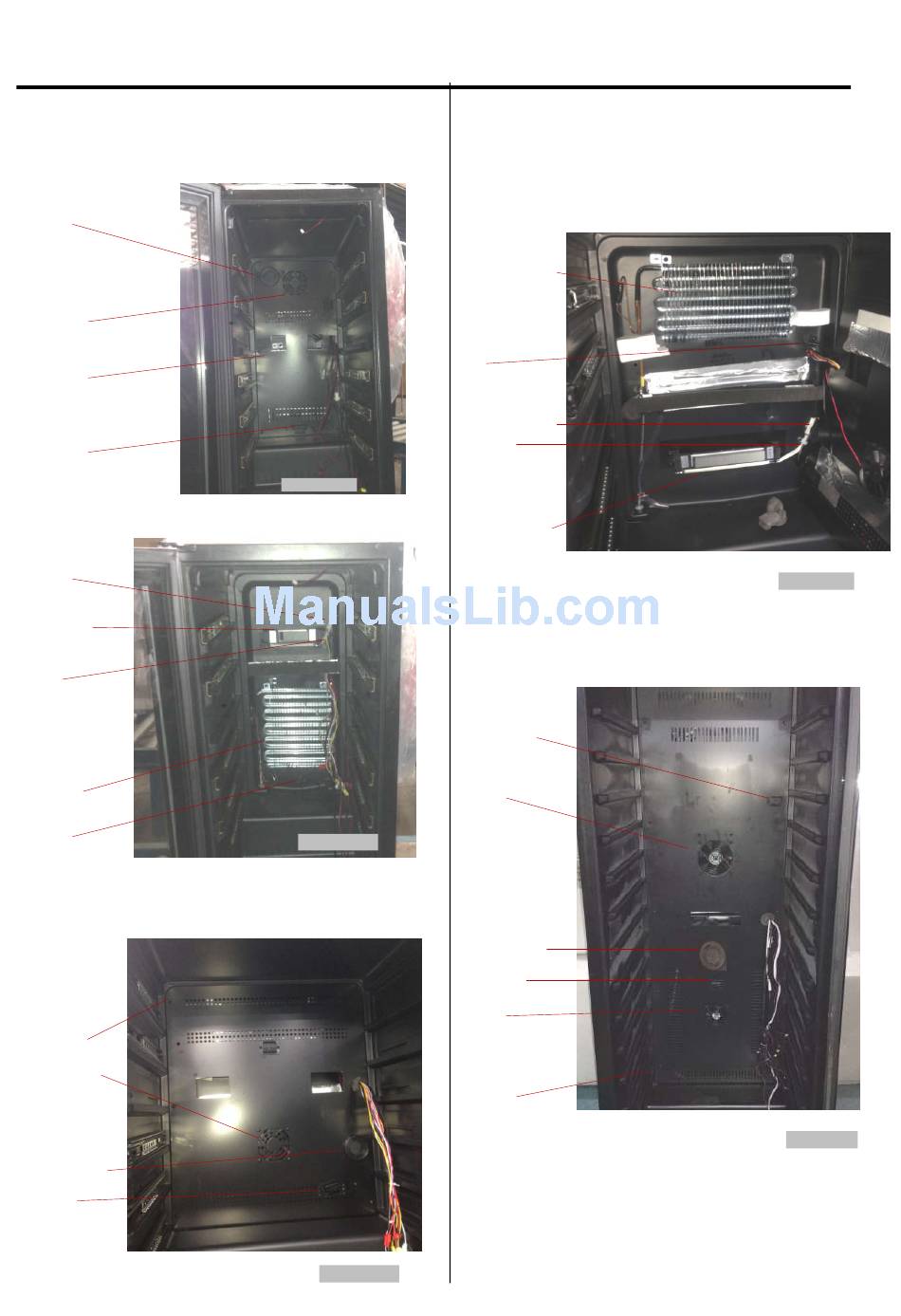

1. Loosen six screws. Pull out the rear air duct cover.
(figure 37)
Carbon Filter
fan
Screw
Sensor
2.
Loosen 1 screw to replace the sensor & fan.
(figure 38)
wire housing
PTC Heater
screw
evaporator
defrost
sensor
(Models：AWC241DZ)
1. Loosen six screws. Pull out the rear air duct cover. (figure
(figure 39)
Screw
fan
cold catalyst
Sensor
Figure 37
Figure 38
- 11 -
Figure 39
2.
Loosen 1 screw to replace the sensor & fan.
(figure 40)
evaporator
defrost
sensor
wire housing
screw
PTC Heater
(Models：AWC241TDZ)
1. Loosen screws. Pull out the rear air duct cover.
(figure 41)
sensor
fan
cold catalyst
Sensor
fan
screw
Figure 40
Figure 41
