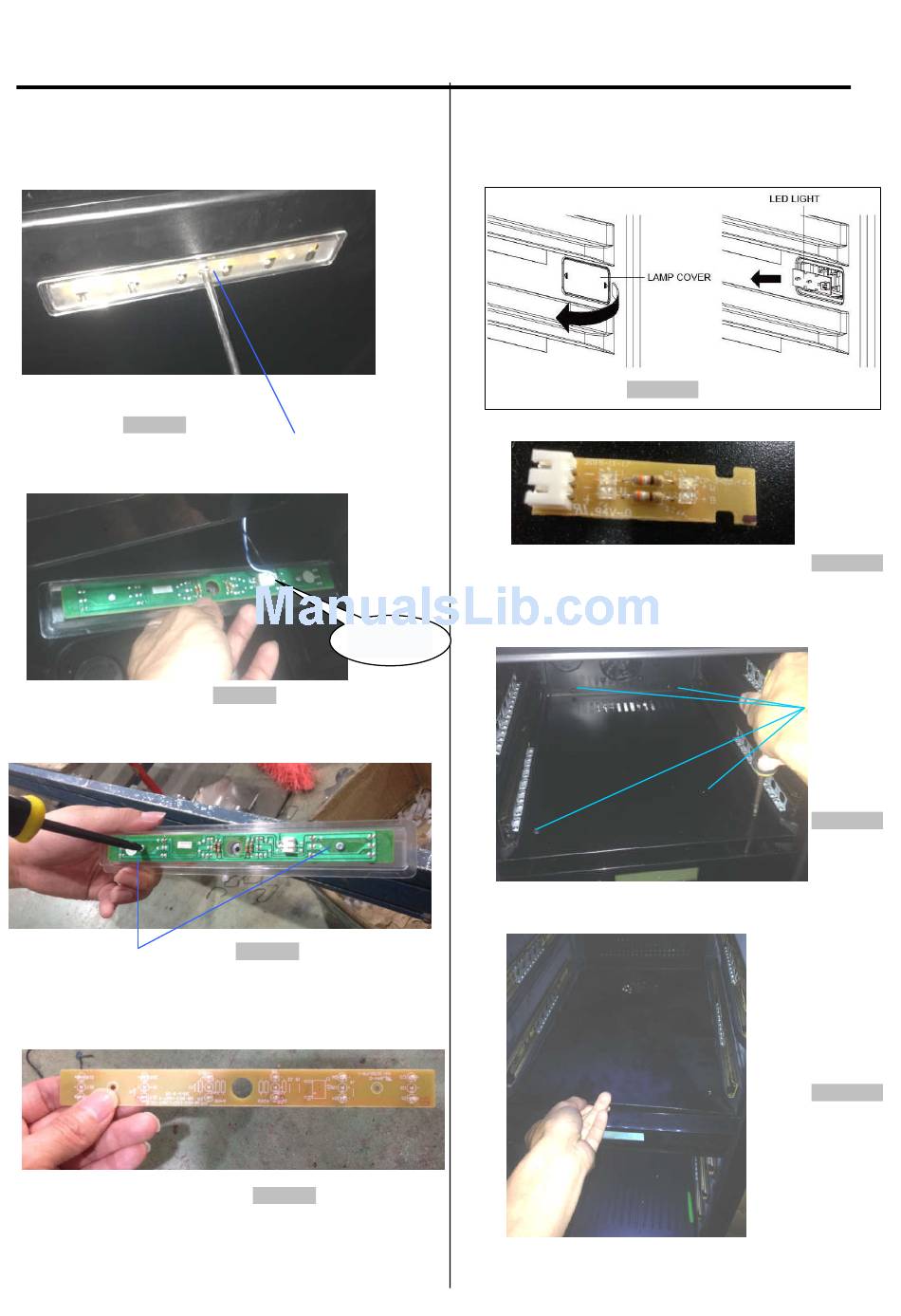

3. DISASSEMBLY
3-4 TOP LAMP
(Models：AWC151DZ, AWC241DZ,AWC241TDZ)
1.
1 Loosen four screws. (figure 6)
Figure 6
2. Unplug the led light connector. (figure 7)
3. Loosen four screws. (figure 8)
screw
4.
Pull out the LED light. The LED is pictured below. (figure 9)
screw
connector
Figure 7
Figure 8
Figure 9
3-5 BROADSIDE LAMP
(Models：AWC151DZ, AWC241DZ,AWC241TDZ.)
1.
Pull the lamp cover.
2.
Separate the claw fixed to the LED light. Separate the
lead wire housing. (figure 10)
3. The LED light is pictured below. (figure 11)
3-6 DISPLAY BOARD &
(Models：AWC151DZ)
1. Loosen four screws. (figure 12)
2. Lift up the cover and pull it out.. (figure 13)
- 7 -
Figure 10
Figure 11
screw
Figure 12
Figure 13
