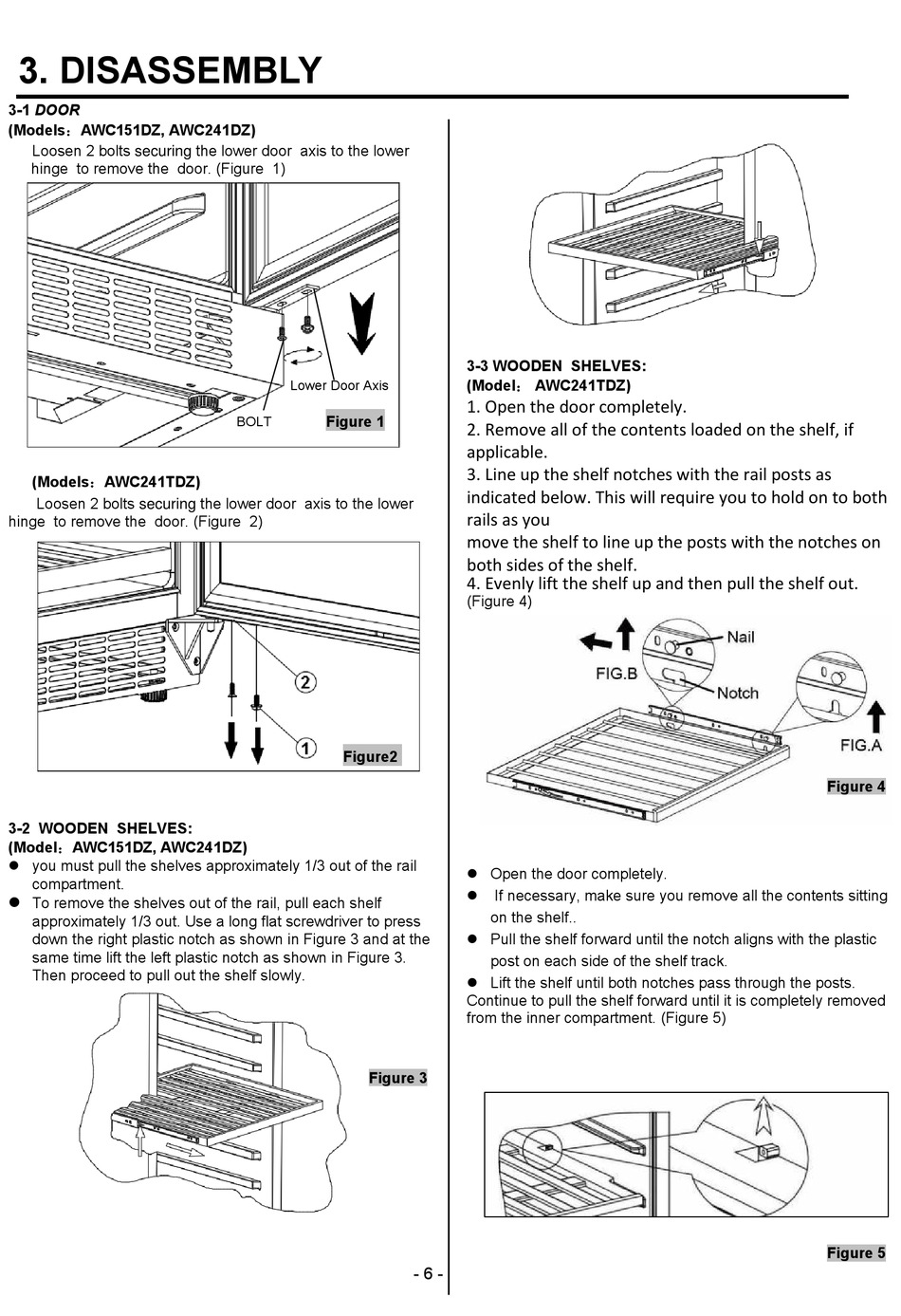

3. DISASSEMBLY

3-1 DOOR

(Models：AWC151DZ, AWC241DZ)
Loosen 2 bolts securing the lower door axis to the lower
hinge to remove the door. (Figure 1)
(Models：AWC241TDZ)
Loosen 2 bolts securing the lower door axis to the lower
hinge to remove the door. (Figure 2)

3-2 WOODEN SHELVES:

(Model：AWC151DZ, AWC241DZ)
 you must pull the shelves approximately 1/3 out of the rail
compartment.

To remove the shelves out of the rail, pull each shelf
approximately 1/3 out. Use a long flat screwdriver to press
down the right plastic notch as shown in Figure 3 and at the
same time lift the left plastic notch as shown in Figure 3.
Then proceed to pull out the shelf slowly.
Lower Door Axis
Figure 1
BOLT
Figure2
Figure 3
3-3 WOODEN SHELVES:
(Model： AWC241TDZ)
1. Open the door completely.
2. Remove all of the contents loaded on the shelf, if
applicable.
3. Line up the shelf notches with the rail posts as
indicated below. This will require you to hold on to both
rails as you
move the shelf to line up the posts with the notches on
both sides of the shelf.
4. Evenly lift the shelf up and then pull the shelf out.
(Figure 4)
 Open the door completely.
 If necessary, make sure you remove all the contents sitting
on the shelf..
 Pull the shelf forward until the notch aligns with the plastic
post on each side of the shelf track.
 Lift the shelf until both notches pass through the posts.
Continue to pull the shelf forward until it is completely removed
from the inner compartment. (Figure 5)
- 6 -
Figure 4
Figure 5
