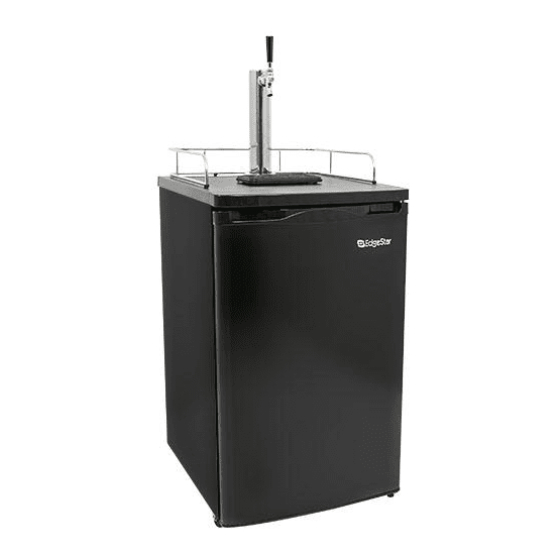

EdgeStar KC2000 Installation Manual

3
4
6
7
8
9
18

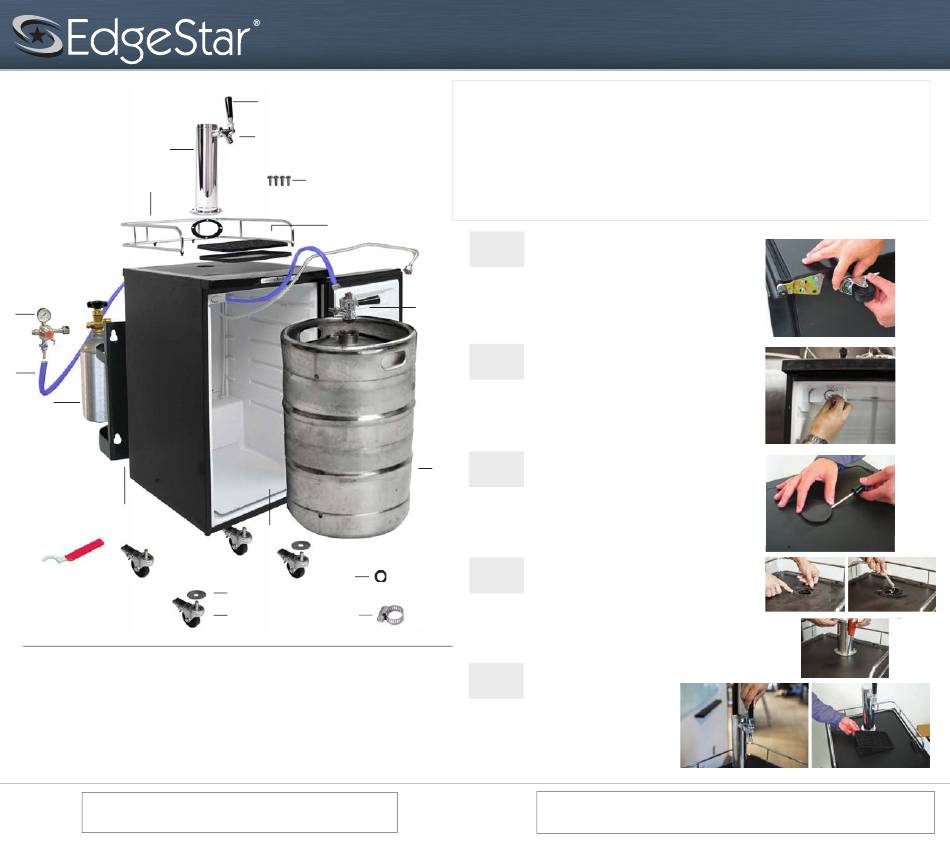

Parts List
1. Faucet Handle
2. Faucet
3. Beer Tower
4. Guard Rail
5. Drip Tray
6. Regulator
7. Tube (Blue)
CO
2
8. Cylinder (Comes Empty)
CO
2
9. Cylinder Holder
10. American Sankey Keg Coupler
1
CO can be dangerous! CO
2
hazardous if handled improperly. Please handle with care.
Beer Dispenser
Installation Guide
1
2
20
5
19
11
14
12
13 15
11. Metal Keg Floor Support
12. Caster Washer (x2)
13. Casters (x4)
14. Neoprene Washer
15. Metal Hose Clamp
16. Wire Shelves (not shown) (x2)
17. Half Barrel Keg (not included)
18. Faucet Wrench
19. Tower Gasket
20. Tower Screws (x4)
Warning
cylinders contain high-pressured gas, which can be
2
Thank you for purchasing the EdgeStar Beer Dispenser
Lets enjoy some draft beer now!
Tools required:
• Phillips & Flat head screwdriver
• Wrench
Co2 cylinder comes empty due to HAZMAT restrictions. It will need to be filled locally at any air/gas
supplier prior to use.
Note: Some Coors or Miller Brand kegs will not fit inside this unit.
1
Install Caster Wheels
Make sure unit is empty (including white metal keg floor (#11). Carefully tip
the beer dispenser on its side. Connect the casters (#13) to the cabinet by
screwing in each metal bracket into one of four caster holes (casters in the
front of the cabinet require the washers #12). Then carefully set the unit
upright.
Note: Allow the dispenser to stand in an upright position for 24 hours
before plugging in the unit.
10
2
Power On
Plug unit into a standard 3-prong 110/volt electrical outlet. Turn the
thermostat clockwise to the desired temperature. The recommended
setting is between 4-5 on the dial.
NOTE: Temperature settings can vary depending on beer type, ambient
temperature and preference. We do not recommend plugging this unit
into an extension cord.
3
Remove Plug
17
Carefully remove the top cabinet plug located on the top of the unit by
opening the cabinet, and with your hand, push plug through the top of the
cabinet from the inside. Use flat head screwdriver as a prying tool if neces-
sary.
4
Mount Tower
(A) Place the black rubber tower gasket (#19) flat on the top of the
cabinet and line up the predrilled holes.
(B) Unbox the tower (#3) and unravel the beer line hose from the bottom.
Feed the clear beer line through the large opening at the top of the
cabinet.
(C) Place the tower on top of the unit and align the screw holes at the
bottom of the tower to the predrilled holes located on the top of the
cabinet. Secure the tower by attaching the four tower screws (#20) with a
phillips head screwdriver to the top of the cabinet. The faucet connection
for the tower should now face the front of the cabinet. If the tower is not
facing the front of the cabinet, remove it and reinstall it to the proper
5
position.
Install Handle & Drip Tray
Screw the black faucet handle (#1) onto the
faucet (#2). Make sure the faucet (#2) is
vertical with the black handle facing the
upward. The faucet should be first "hand
tightened," then secured with the faucet
wrench (#18). Place the plastic drip tray (#5)
on the top of the cabinet beneath the faucet.
NOTE: Do not twist the faucet if it does not
line up properly. Instead remove the faucet
with the faucet wrench and reinstall the faucet
to the desired position.
Warning: This guide is provided for informational purposes only. It is provided as a supplement to the owner's manual. Please refer to
the owner's manual for a full discourse on installation, usage and maintenance. If you have any questions about the installation of this
appliance, feel free to contact EdgeStar service at 866.319.5473 or consult a qualified installer. Neither the manufacturer nor its
distributors shall be liable for any incidental, consequential, indirect, special, or punitive damages of any nature, including without
limitation, lost revenues or profits, or any other damage whether based in contract, tort, or otherwise.
For assistance, please call:
866-319-5473
