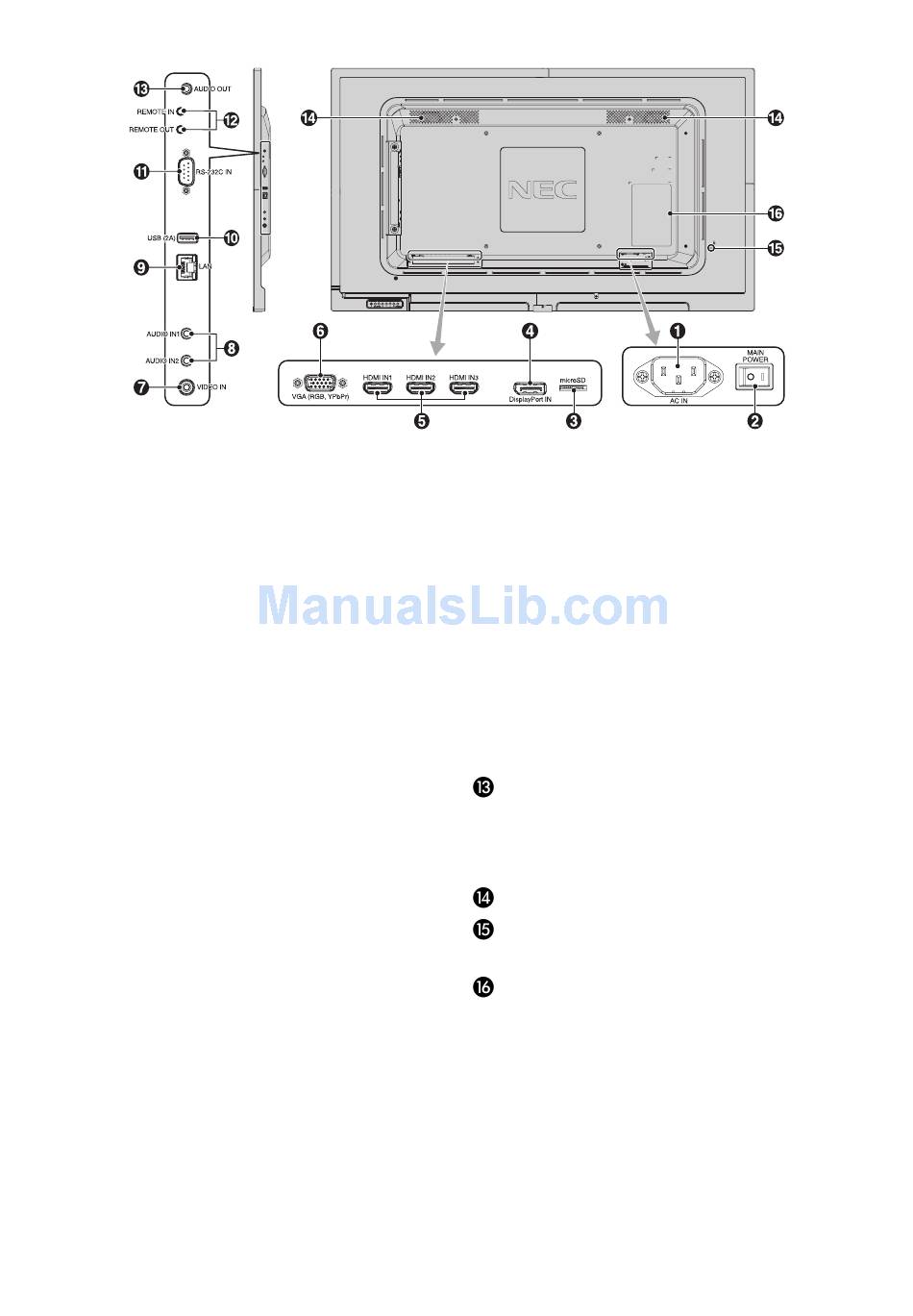

Terminal Panel

³
AC IN connector
Connects with the supplied power cord.
·
Main Power Switch
On/Off switch to turn main power ON/OFF.
»
microSD card slot
Insert a microSD memory card. To use the Media Player,
please connect a microSD memory card to this port.
To install the microSD card slot cover, please refer to
"Installing microSD card slot cover" (See page 20).
¿
DisplayPort IN
DisplayPort signals input.
´
HDMI IN1/IN2/IN3
Digital HDMI signals input.
²
VGA IN (mini D-Sub 15 pin)
Analog RGB signals input from a personal computer or from
other RGB equipment. This input can be used with an RGB
or YPbPr source. Please select signal type in TERMINAL
SETTINGS. See page 32.
NOTE: When you use this connector for YPbPr, please use a
suitable signal cable. If you have any questions, please ask
your supplier.
¶
VIDEO IN
Composite video signal input.
º
AUDIO IN1/IN2
Audio signal input from external equipment such as a
computer or player.
USB Upstream
¾
LAN port IN (RJ-45)
LAN connection. See page 42.
µ
USB port
USB (2A): USB storage device port.
To use the Media Player, please connect USB storage device
to this port (See page 16).
¸
RS-232C IN (D-Sub 9 pin)
Connect RS-232C input from external equipment such as a
computer in order to control RS-232C functions.
¹
REMOTE IN/OUT
Use to connect to other displays to create the "daisy-chain"
function. Use the optional sensor unit by connecting it to your
monitor.
NOTE: Do not use this connector for any other purpose.
AUDIO OUT
To output the audio signal from the AUDIO IN1/IN2,
DisplayPort and HDMI to an external device (stereo receiver,
amplifi er, etc.).
NOTE: This connector is not a Headphone terminal.
Internal speaker
Kensington Lock
For security and theft prevention.
Rating label
English-10
