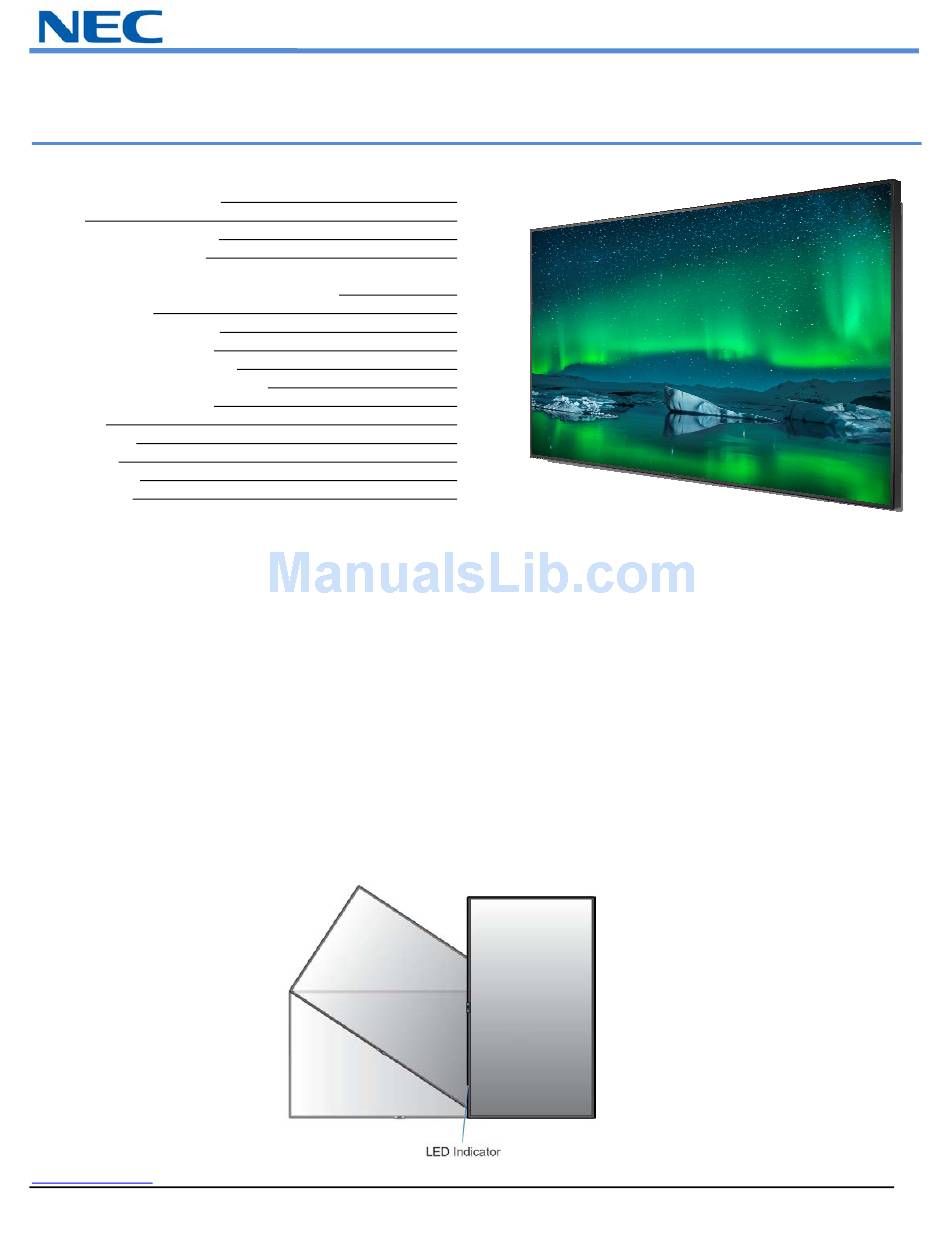

V864Q/C861Q Installation Guide
Contents:

Product Description:

Type:
Resolution:
Aspect Ratio:
EMI:
Power Consumption:
BTU's:
NOTES:
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to be
a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation:
Below is the maximum angle the monitor can be tilted. Note that the monitor can only be tilted in the landscape position.
www.necdisplay.com
LCD Display
3840 x 2160
16:9
Class B
425W (Max both units)
1450.16 BTU/hour
NEC Display Solutions of America, Inc.
Page 1
Page 1
Page 2
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7-8
Page 9
Page 10
Page 11
Page 11
Page 12
Page 12
Page 13
Dimensions without stand:
Dimensions with stand:
Weight without stand:
Weight with stand:
V864Q/C861Q
[Ver.1.0]
75.9" (W) x 43.3" (L) x 2.9" (D)
75.9"(W) x 44.7"(H) x 23.9"(D)
127.4 lbs. / 57.8kg
137.6 lbs. / 62.4kg
Page 1 of 13

Advertisement

loading

  Also See for NEC V864Q

  Related Manuals for NEC V864Q

  Summary of Contents for NEC V864Q

  • Page 1: Table Of Contents

    NEC Display Solutions of America, Inc. V864Q/C861Q Installation Guide [Ver.1.0] Contents: Product Description and Notes Page 1 Rotation Page 1 Ventilation Recommendations Page 2 Carrying Handle Positioning Page 2 Display Dimensions Front, Top, Right Side, Left Side, Bottom Page 3...
  • Page 2: Ventilation Recommendations

    The ventilation space should not be covered or closed off at the front of the opening. If for some reason the opening needs to be covered, • other means of ventilation will need to be incorporated into the design. Contact NEC for design review and recommendations. Carrying Handle Positioning: www.necdisplay.com...
  • Page 3: Display Dimensions

    NEC Display Solutions of America, Inc. Display Dimensions: www.necdisplay.com V864Q/C861Q Page 3 of 13...
  • Page 4: Back Side

    NEC Display Solutions of America, Inc. Display Dimensions (cont.): NEC strongly recommends using size M8 screws (15-17mm + the thickness of the bracket and washers in length). If using screws longer than 15-17mm, please check the depth of the hole.
  • Page 5: Display Dimensions With Stand

    NEC Display Solutions of America, Inc. Display Dimensions (with optional ST-801 stand): www.necdisplay.com V864Q/C861Q Page 5 of 13...
  • Page 6: Optional Stand Dimensions

    NEC Display Solutions of America, Inc. Table Top Stand Dimensions (ST-801): www.necdisplay.com V864Q/C861Q Page 6 of 13...
  • Page 7: Optional Wall Mount Dimensions

    NEC Display Solutions of America, Inc. Optional Slim Wall Mount (WMK-3255S): Optional Large Wall Mount (WMK-6598): www.necdisplay.com V864Q/C861Q Page 7 of 13...
  • Page 8 NEC Display Solutions of America, Inc. Optional Standard Wall Mount (WMK-3257): www.necdisplay.com V864Q/C861Q Page 8 of 13...
  • Page 9: Optional Speaker Dimensions (Sp-Tf1)

    NEC Display Solutions of America, Inc. Optional Speaker Dimensions (SP-TF1) www.necdisplay.com V864Q/C861Q Page 9 of 13...
  • Page 10: Compute Module Integration

    NEC Display Solutions of America, Inc. Compute Module Integration: Door on the back of the display can be opened by loosening captive screws. • Separate IO Board is necessary to accompany RPi Compute Module in unit • www.necdisplay.com V864Q/C861Q Page 10 of 13...
  • Page 11: Input Panel

    NEC Display Solutions of America, Inc. Input Panel: Bottom Side (Rotated) ASCII Common Commands: This monitor supports common ASCII control commands with many other NEC projectors. For more information on this, please see our • website. www.necdisplay.com V864Q/C861Q Page 11 of 13...
  • Page 12: Control Codes

    NEC Display Solutions of America, Inc. Control Codes: NOTE: Contact your NEC representative for codes not listed. Cable Connection Communication Protocol: Interface: RS-232C Communication System: Asynchronous Baud Rate: 9600 bps Data Length: 8 bits Parity: None Stop Bit 1 bit...
  • Page 13: Browser Control

    NEC Display Solutions of America, Inc. Browser Control: Information and control can also be available through the HTTP browser control menu. In order to accomplish this, type: http://<the Monitor’s IP address>/pd_index.html Note that the LAN Power needs to be turned on in order for the display to be controlled while the units are off.
