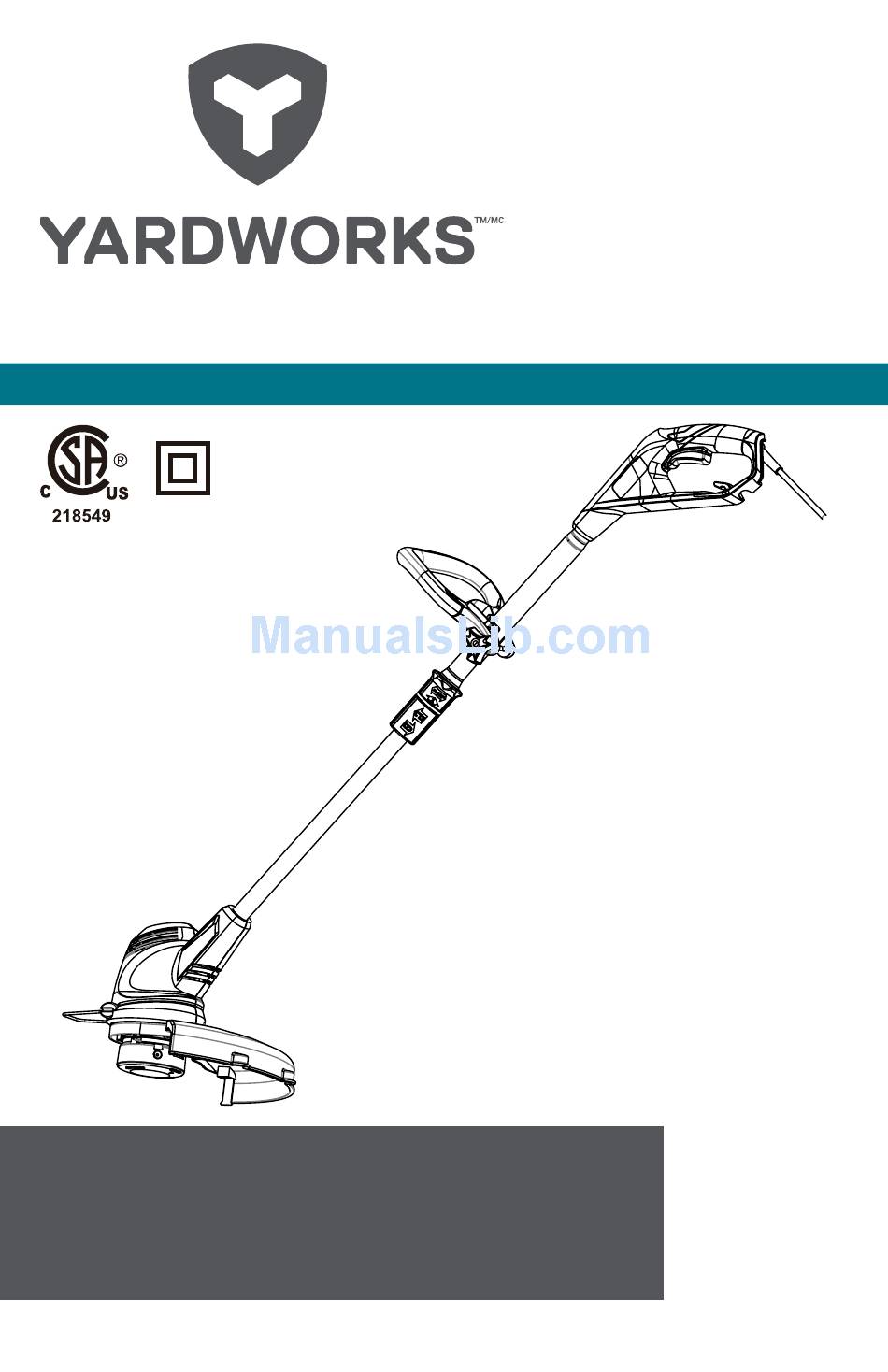

- Page 1 Electric Grass Trimmer & Edger model number 060-2279-2 | contact us: 1.866.523.5218 IMPORTANT: Instruction Read and follow all safety rules and operating Manual instructions before using this product.
- Page 2 060-2279-2 | contact us: 1.866.523.5218 SPECIFICATIonS KnoW YoUR TRIMMER SYMboLS SAFETY InFoRMATIon ELECTRICAL InFoRMATIon ExPLodEd VIEW PARTS LIST ASSEMbLY oPERATIon MAInTEnAnCE TRoUbLESHooTIng WARRAnTY Type: Electric Input: 120V, 60Hz, 5 amps Feed: Automatic dual line Speed: 8000 RPM (no load) Line diameter: 0.065”...
- Page 3 060-2279-2 | contact us: 1.866.523.5218 1. Switch trigger 2. Upper handle 3. Cord retainer 4. Auxiliary handle adjustment knob 5. Auxiliary handle 6. Split and telescoping shaft 7. Edger guide 8. grass deflector KNOW YOUR GRASS TRIMMER/EDGER The safe use of this product requires an understanding of the information on the product, this operator’s manual as well as a knowledge of the project you...
- Page 4 060-2279-2 | contact us: 1.866.523.5218 Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product safely. Symbol name...
- Page 5 060-2279-2 | contact us: 1.866.523.5218 GENERAL SAFETY RULES • This grass trimmer is designed for cutting grass and similar soft vegetation and for trimming grass edges in private and hobby garden areas which are not accessible with a lawnmower.
- Page 6 060-2279-2 | contact us: 1.866.523.5218 ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER • do not expose to moisture. • Use with only on AC power supply voltage shown on the product rating label. • Avoid operating your trimmer in wet grass, where feasible.
- Page 7 060-2279-2 | contact us: 1.866.523.5218 GUIDELINES FOR USING EXTENSION CORDS • USE THE PRoPER ExTEnSIon CoRd. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
- Page 8 060-2279-2 | contact us: 1.866.523.5218...
- Page 9 060-2279-2 | contact us: 1.866.523.5218 Item description drawing Plate 34103336 Cross-head screw ST4*12-F 3220313 Waterproof plug 36401504 Wire proof sheath 34201161 b-terminal 3650135 Trigger 34102719-1 button spring 33401178 Jogging switch 36303152 Protecting jacket 34903161 Terminal 36503163 Left handle...
- Page 10 060-2279-2 | contact us: 1.866.523.5218 Item description drawing blade 33301865 guard 34101880 Spool guard 3101176A-3 Auto-spool 31104178 dc-release spool spring 3340646 Release spool fan 34107178b Motor 36101504b Shaft sleeve 33102178 Hole 33200178 End cap 34111504 Ac-auto release button...
- Page 11 060-2279-2 | contact us: 1.866.523.5218 ASSEMbLE ThE TWO hALVES OF ThE ShAFT • Insert the lower shaft (2) into upper shaft (1). • Turn the upper shaft (1) until lock button (1) clicks into place. • Turn the lower shaft (2) collar until locked into place.
- Page 12 060-2279-2 | contact us: 1.866.523.5218 GUARD • Stop the trimmer. • Invert the grass trimmer to access the trimmer head. • Using a cross-head screwdriver, remove the pre-installed screws (1) from the trimmer head. • Place the guard (2) on to the trimmer head and turn the guard 45°...
- Page 13 060-2279-2 | contact us: 1.866.523.5218 ThE CUTTING LINE • A double-wound spool of monofilament cutting line is pre-installed on the grass trimmer. When the cutting line needs replacing, install a new spool. Use Yardworks® 60-2269-6 replacement spools. REMOVE ThE SPOOL • Unplug the extension cord.
- Page 14 060-2279-2 | contact us: 1.866.523.5218 REFILL ThE SPOOL If you are unable to purchase a new pre-wound spool, you may purchase 0.065” (1.65 mm) nylon monofilament cutting line and refill the spool that was supplied with your grass trimmer.
- Page 15 060-2279-2 | contact us: 1.866.523.5218 TO TURN ON/OFF • Release the trigger switch (1). • Allow at least 5 seconds for the cutting spool to stop rotating. • disconnect the extension cord if leaving unattended. CAUTION: Allow 5 seconds or more for the grass trimmer to stop rotating after releasing the switch.Do not invert...
- Page 16 060-2279-2 | contact us: 1.866.523.5218 EDGING FUNCTION This trimmer is equipped with an edging feature for use on sidewalks or walkways, patios and/ or driveways to clear over-grown grass from manicured surfaces. • Pull up edging coupler and turn handle end counterclockwise.
- Page 17 060-2279-2 | contact us: 1.866.523.5218 SPLIT AND TELESCOPING TUbE The shaft can be extended or shortened for ease of use. • Unscrew telescoping shaft coupler and slide to desired position. • Tighten telescoping shaft coupler. SPLIT And TELESCoPIng...
- Page 18 model no. 060-1721-4 | contact us: 1.866.523.5218 LENGThENING ThE LINE • While the grass trimmer is operating, the cutting line gets worn down and becomes shorter. This trimmer is equipped with an automatic lowercase, which automatically feeds additional line to the correct length as it wears down. • If the line does not automatically advance, the trimmer line may be tangled or empty.
- Page 19 060-2279-2 | contact us: 1.866.523.5218 bEFORE EACh USE • Make sure the protective guard is tightly installed. Tighten the guard screws. • before trimming, inspect the area for string, wire, branches, or other material that may become entangled in the cutting line or thrown.
- Page 20 060-2279-2 | contact us: 1.866.523.5218 GENERAL MAINTENANCE Keep your grass trimmer clean and in good repair for maximum performance and service life. before each use, inspect the switch and cord for damage. Check for damaged, missing, or worn parts. Check for loose screws, misalignment, moving parts that are jammed, or any other conditions that may affect the operation.
- Page 21 060-2279-2 | contact us: 1.866.523.5218 If your device is not operating properly, follow the instructions below. If this does not solve the problem, please contact your local repair agent. TOOL RUNS SLOWLY • Check that the spool housing can rotate freely. Carefully clean it if necessary.
- Page 22 (120) days from the date of retail purchase. hOW TO ObTAIN SERVICE: Warranty service is available by calling the toll-free helpline, at 1.866.523.5218. The factory will not accept the return of a complete Yardworks CANADA will not be liable for incidental or consequential loss or damage.
