LEVELING BUILD PLATE

Step 1: This is the most important step in setting up the
printer. In this Step, we shall level the build plate.
Please refer to Quick-Start guide When leveling the
build plate. The objective of this exercise is to make
sure build plate is flat and is at an exact distance
from nozzle.
Step 2: Build Plate has rotating screws at the bottom – one
at the bottom center, one at the bottom left and other
at the bottom right. First turn the bottom center one
to adjust the build plate distance from the nozzle.
Turn anti-clockwise to reduce the distance and turn
clockwise to increase the distance between nozzle
and build plate. The gap between.
Nozzle and build plate should be such that we
can put a calibration card (shipped along with the
machine) between these two. We should be able
to insert the calibration card and feel a little bit of
friction while doing so.
28

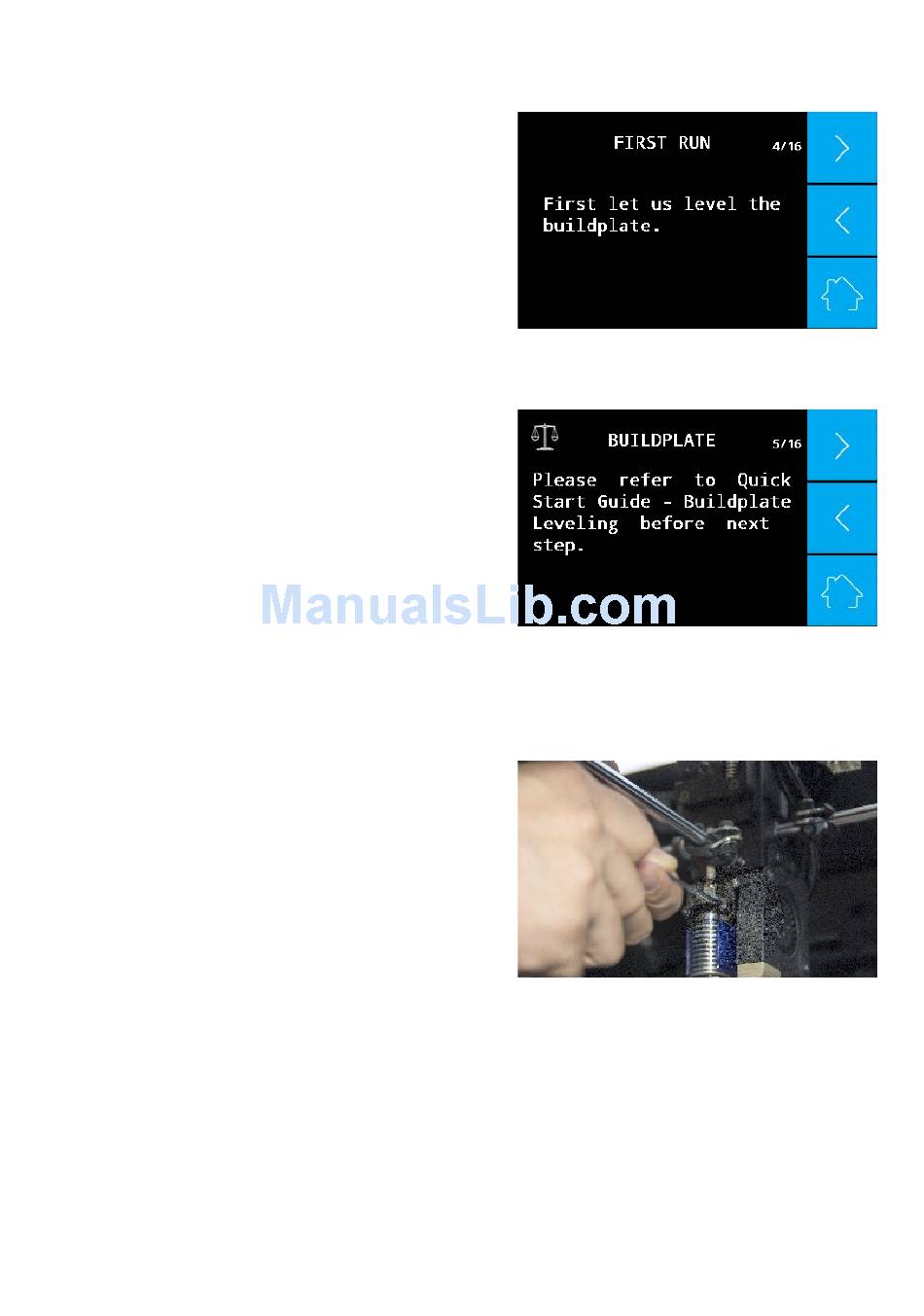

Figure 5.1
