FIRST STEPS
Step 3:
Build Plate has rotating screws at the bottom – one
at the bottom center, one at the bottom left and other
at the bottom right. First turn the bottom center one
to adjust the build plate distance from the nozzle.
Turn it anti-clockwise to reduce the distance and
turn it clockwise to increase the distance between
the nozzle and the build plate. The gap between
the nozzle and the build plate should be such that
we can push a calibration card (shipped along with
the machine) between these nozzle and the build
plate & feel a little bit of friction when moving the
calibration card between the nozzle and the build
plate.
Step 4:
Now repeat the same step for the left screw and the
right screw present below the build plate.
www.intamsys.com

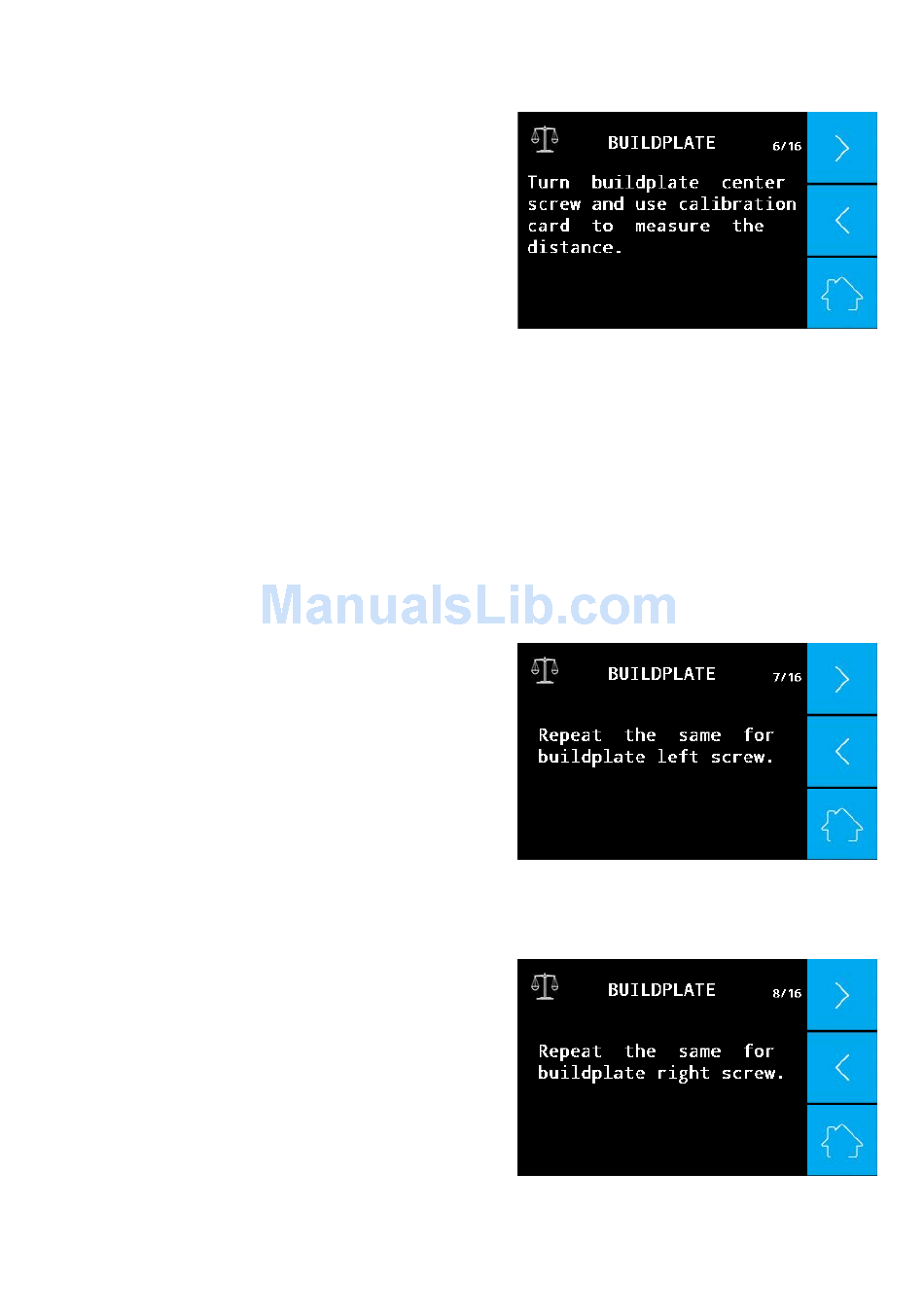

Figure 4.15
Figure 4.16
Figure 4.17
