Summary of Contents for Analytic Systems BCA-PWS-480-36

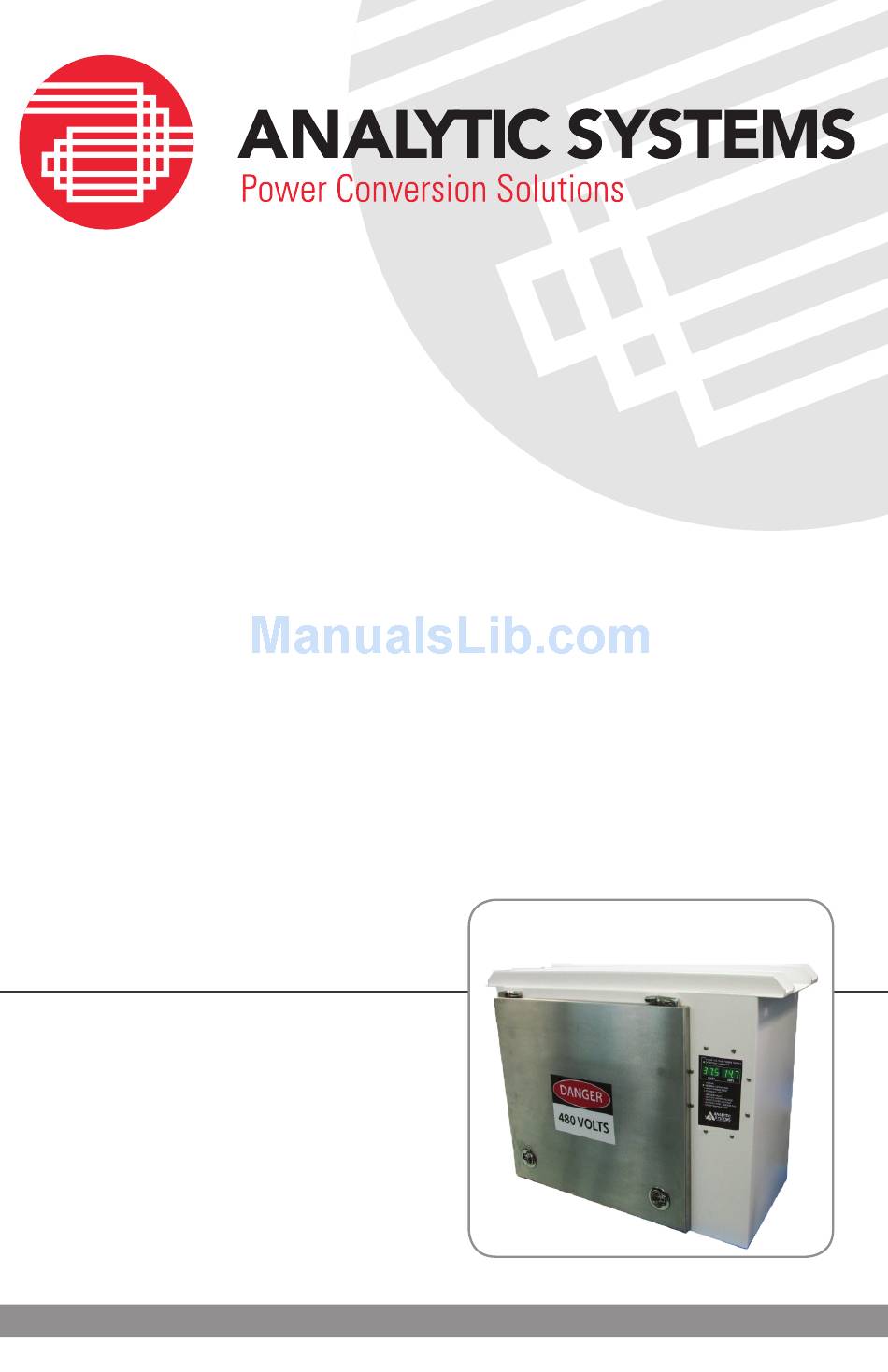

- Page 1 Installation & Operation Manual BCA-PWS-480-36 Transit Power Supply/ Charger 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 1.800.668.3884 (US/CANADA) www.analyticsystems.com...
- Page 2 Copyright (2005-2013) Analytic Systems Ware (1993) Ltd.
-
Page 3: Important & Safety Instructions
Turning off controls will not reduce this risk. Analytic Systems does not recommend the use of the BCA-PWS-480-36 power supply/charger in life support applications where failure or malfunction of this product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. -
Page 4: Electrical Specifications
Powder coat white Weight 270 lbs/122.470kg (apprx.) * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way, Delta, B.C., V4G 1K5, Canada phone (604) 946-9981 fax (604) 946-9983 toll free 800-668-3884 US/Canada email: analyticinfo@analyticsystems.com... -
Page 5: Installation
Installation ◆ Hardware Mount railway charger unit onto train using all four holes provided (Fig. 1). Fig.1: Mounting holes on unit’s top Turn OFF power on the train. Open unit’s door and feed wiring (480V input, Battery Charger output, Low Voltage Power Sup- ply output, and battery temperature sensor wires) into unit through the rear hole. -
Page 6: Troubleshooting
◆ PC Software Run the install program. It will install the Metra_LVPS_BC software in the directory C:\Programming Files\ Metra. It will create a start icon on the desktop. It will install a new item ASW_Metra in the “All Program” menu that has two entries. One entry is to start the application and the second is an uninstall option to remove the application from the computer. - Page 7 Code: Type: Description: Fault 480 VAC Input Over-Current – LVPS Circuit Breaker tripped Fault LVPS Output Over-Current condition Shutdown Fault BC Output Over-Voltage Shutdown Fault LVPS Output Over-Voltage Shutdown Fault LVPS Output Under-Voltage Shutdown Fault BC Output Under-Voltage Shutdown Fault BC Internal Fault condition –...
- Page 8 Event Codes Normal event codes are listed here. These codes are only available via the data logging interface. Normal Event codes range from 100 – 199. Code: Type: Description: Event Transfer load to batteries Event FLOAT Battery Charge Start Event BOOST Battery Charge Start Event Battery Commissioning Charge Start...
-
Page 9: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 10 Only the Warrantor shall perform warranty service. Any attempt to remedy the defect by anyone else shall render this warranty void. There shall be no warranty for defects or damages caused by faulty installation or hook-up, abuse or mis- use of the equipment including exposure to excessive heat, salt or fresh water spray, or water immersion except for equipment specifically stated to be waterproof.
