Summary of Contents for Analytic Systems BCA1505MW-24
-

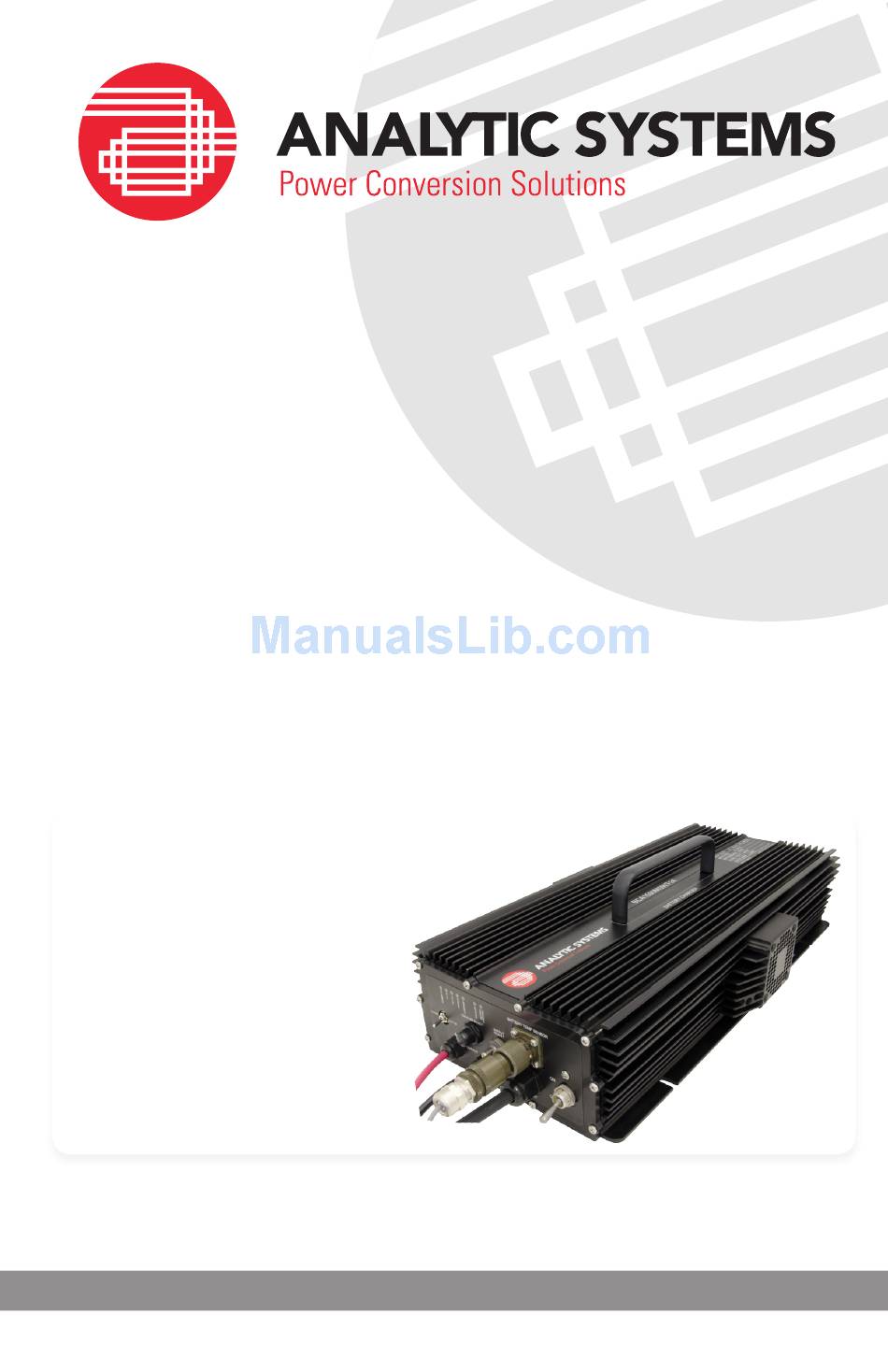

Page 1: Battery Charger

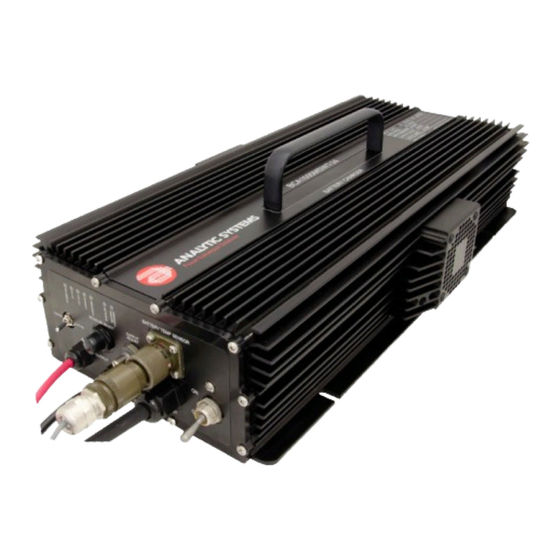

INSTALLATION & OPERATION MANUAL BCA1505MW-24 Battery Charger An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com... - Page 2 Copyright (2005-2015) Analytic Systems Ware (1993) Ltd. Revised - May 18, 2016...
-
Page 3: Important & Safety Instructions
Analytic Systems does not recommend the use of any of its products in direct patient care. -
Page 4: Specifications
Extra input and output filtering reduce EMI to extremely low levels. Reliability features include an input fuse, thermal shutdown, current limiting and output short circuit shutdown with automatic recovery. The model BCA1505MW-24 Power Supply supplies 24 VDC from a 110 or 220 VAC power source. - Page 5 21 lb / 9.5 kg Safety ABS 11-HS794404E-PDA * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way, Delta, BC V4G 1K5 p. 604.946.9981 f. 604.946.9983 tf. 800.668.3884 US/Canada Canada www.analyticsystems.com...
-
Page 6: Installation
Installation MOUNTING Mount the unit and allow at least 4 inches of clearance around the heat sink fins for adequate cooling. POWER CONNECTION The unit is supplied with power leads about 8 feet long. This should normally be adequate to connect to a source of power. - Page 7 A two-stage charger is preferred for “loaded” batteries and a three-stage for idle or unloaded batteries during recharging. All of Analytic Systems’ chargers include adjustable output voltage for charging standard or deep cycle lead-acid, VLRA or gel type batteries.
-
Page 8: Battery Temperature Sensor
BATTERY TEMPERATURE SENSOR The battery temperature sensor can be connected to the charger to allow temperature compensation of the battery charging voltage (1 is supplied with the unit). The charger will work without the battery temperature sensor. -
Page 9: Troubleshooting
Troubleshooting This unit provides LED indicators and a buzzer to help diagnose any problems. The unit should sound the buzzer to alert you prior to shutting itself down. You should immediately check the indicators to determine the cause of the shutdown. CHARGING Indicates that the battery charger is charging the batteries: If the LED is not on, the batteries may be fully charged and the... - Page 10 Page intentionally left blank...
-
Page 11: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 12 An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
